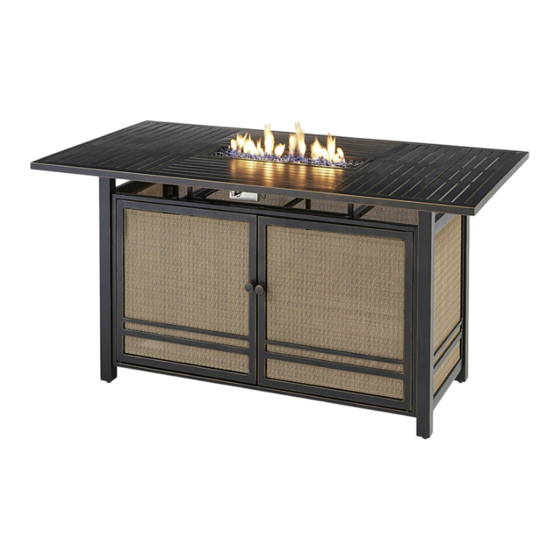

ASSEMBLY INSTRUCTIONS CSA Model 98300 ARV08300 Installer: Leave these instructions with consumer. Consumer: Keep these instructions for future reference DANGER WARNING: If you smell gas: Improper installation, adjustment alteration, 1. Shut off gas to the appliance. service or maintenance can cause injury or 2.
TABLE OF CONTENTS Important Safety Information Important About Propane Specification Parts Identification List Installation 7-11 Natural Gas Conversion Lighting Instructions Batteries Maintenance Troubleshooting Guide Warranty...
IMPORTANT SAFETY INFORMATION The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54; International Fuel Gas Code. ; Natural Gas and Propane Installation Code, CSA B149.1; or Propane Storage and Handling Code, B149.2, as applicable. The appliance and its appliance main gas valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5kPa).
IMPORTANT SAFETY INFORMATION ABOUT PROPANE (LP) GAS A self contained LP-gas cylinder for use with this appliance must have a capacity of 20 lbs. and must be equipped with a Type 1 connector and an OPD (overfill protection device). See Figure 1. The LP-gas supply cylinder to be used must be constructed and marked in accordance with the specification for LP-gas cylinders of the U.S.
INSTALLATION 1. Identify parts packed in carton against the parts list. Remove all protective materials and set parts on a flat, non-abrasive surface. IMPORTANT NOTE: WE RECOMMEND TWO PEOPLE WORK TOGETHER TO ASSEMBLE THE PRODUCT. 2. Place the back panel upside down on a flat, non-abrasive surface. Open it as shown in Figure 2.
Page 11
4. Attach the bottom panel to legs by using four 1/4"x30 mm bolts and washers as shown in Figure 4.Guide the bolts through holes in the bottom panel, into pre-drilled holes in the legs. Hand tighten only. Figure 4 5. Carefully place the middle panel inside back panel with bottom panel as shown in Figure 5.
Page 12
6. Attach the bottom panel to the back panel by using two 1/4"x30 mm bolts and washers as shown in Figure 6. Guide the bolts through holes in the bottom panel, into pre-drilled holes in the back panel. Hand tighten only. Figure 6 7.
Page 13
9. After making any necessary adjustments to the alignment of the all parts, use the hex bolt driver to tighten all bolts. Do not over tighten. Over tightening may strip bolts. 10. With the help of another person, Attach the table top to the complete base by using four 1/4"x20 mm bolts and washers as shown in Figure 9.
Page 14
12. Tighten threaded knobs (L) found on tank tray (Figure.11) so that the LP tank cannot move from side to side. Do not remove plastic cap from end of threaded section. Figure 11 13. Pour the lava rocks (not included) into the burner pan completely covering the burner.
NATURAL GAS CONVERSION Natural gas conversion must be performed only by your natural gas provider or service company. Step 1- At the control panel, disconnect the rubber gas hose from the gas valve. Step 2- Below the burner, disconnect the aluminum gas tube from the orifice elbow. Step 3- Remove the 2 M4 nuts from the orifice holder and remove the orifice bracket assembly.
Step 5- Stick the conversion label on the rating plate as shown in Figure 15. Metal Rating Plate Serial Number _________________ Model Number: 98900 CAUTION: The gas pressure regulator provided with this appliance must be used. This regulator is set for an outlet pressure of This appliance has been converted to use Natural Gas.
control knob in for 10 to 15 seconds. Release the control knob. The control knob should pop back out and then remain lit. Note: If the fire does not light, turn the knob to the “OFF” position and wait five (5) minutes before trying again.
TROUBLESHOOTING GUIDE PROBLEM CAUSE REMEDY Check that gas tank valve is open. Turn control knob to “ON” and push control No Propane Gas at Burner knob in. Make sure tank has propane gas. Check that AAA battery is installed with Burner won’t light negative (-) end first and has a charge.
