Sony ERA-MS008 - AIBO Programming Memory Stick Manual

About this product

The ERA-MS008 is a "Memory Stick" which enables running the program created using the ERFPC02 AIBO Master Studio on AIBO ERS-210. This "Memory Stick" can also be used to record data from a personal computer or a video camera.

Precautions

Precautions

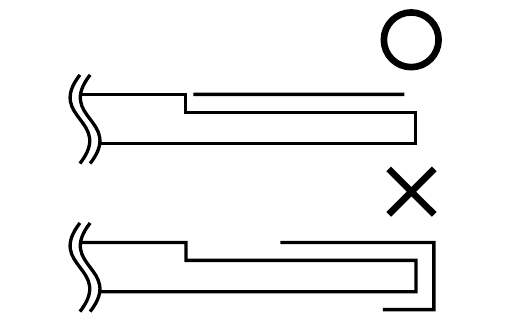

Attaching the supplied label
Attaching the supplied label

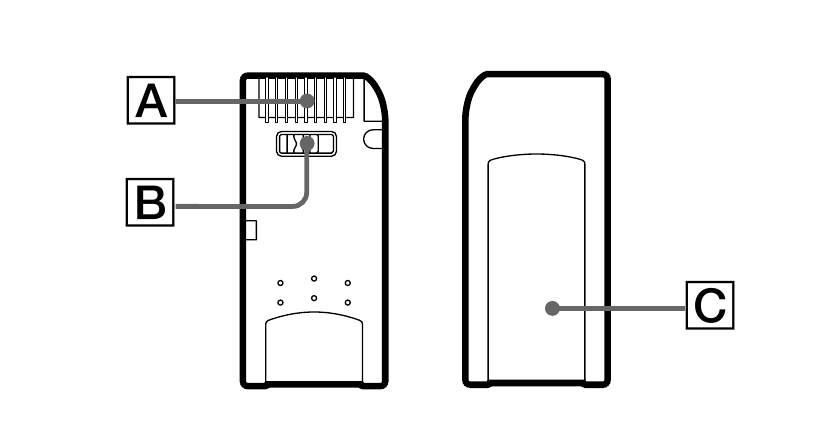

  • Do not touch the terminal A by your hand or a metal object.
  • Do not attach any other material than the supplied label on the label space C.
  • Be sure to stick the supplied label to the appropriate position
  • Do not strike, bend, or drop this medium.
  • Do not disassemble or convert the medium.
  • Do not wet this medium.
  • Do not use or store this medium in the following areas:
    • Hot locations such as the inside of a car or the outdoors under hot weather.
    • Locations exposed to direct sunlight.
    • Humid or corrosive locations.
  • Carry or store this unit in supplied case.

For Proper Operation

  • This "Memory Stick" does not support the Magic Gate function. Therefore, this "Memory Stick" cannot be used with a "Memory Stick Walkman" to play or record music data which requires the Magic Gate function. For this purpose, purchase the "Magic Gate Memory Stick."
  • When you record data from a personal computer or a video camera, do not record AIBOware (an application program for AIBO) to the same "Memory Stick," as this may damage AIBO.
  • Setting the write-protect switch B to "LOCK" disables you to record or delete data.
  • We recommend that you make a backup copy of important data.
  • Do not remove the "Memory Stick" while reading or writing data.
  • Recorded data may be lost or damaged in the following situations:
    • When you remove the "Memory Stick" or turn off the connected machine while reading or writing data.
    • When you use this mediumin the locations subject to static electricity or electrical noise.

Specifications

Memory type
Flash memory with capacity of 8 MB

Operating voltage
2.7 V to 3.6 V

Power consumption
Average during operation: Approx. 45 mA
Standby: Approx. 130 µA

Access speed
Writing: Maximum 1.5 MB/s
Reading: Maximum 2.45 MB/s

Operating environment
0ºC - 60ºC (non-condensing)

Dimensions (w x h x d)
Approx. 21.5 x 50 x 2.8 mm
(0.85 x 1.97 x 0.11 in.)

Mass
Approx. 4 g (0.14 oz)

Supplied accessories
Case (1)
Label (1)
Operating Instructions (1)

Design and specifications are subject to change without notice.
