Summary of Contents for TYLZA KME06-30

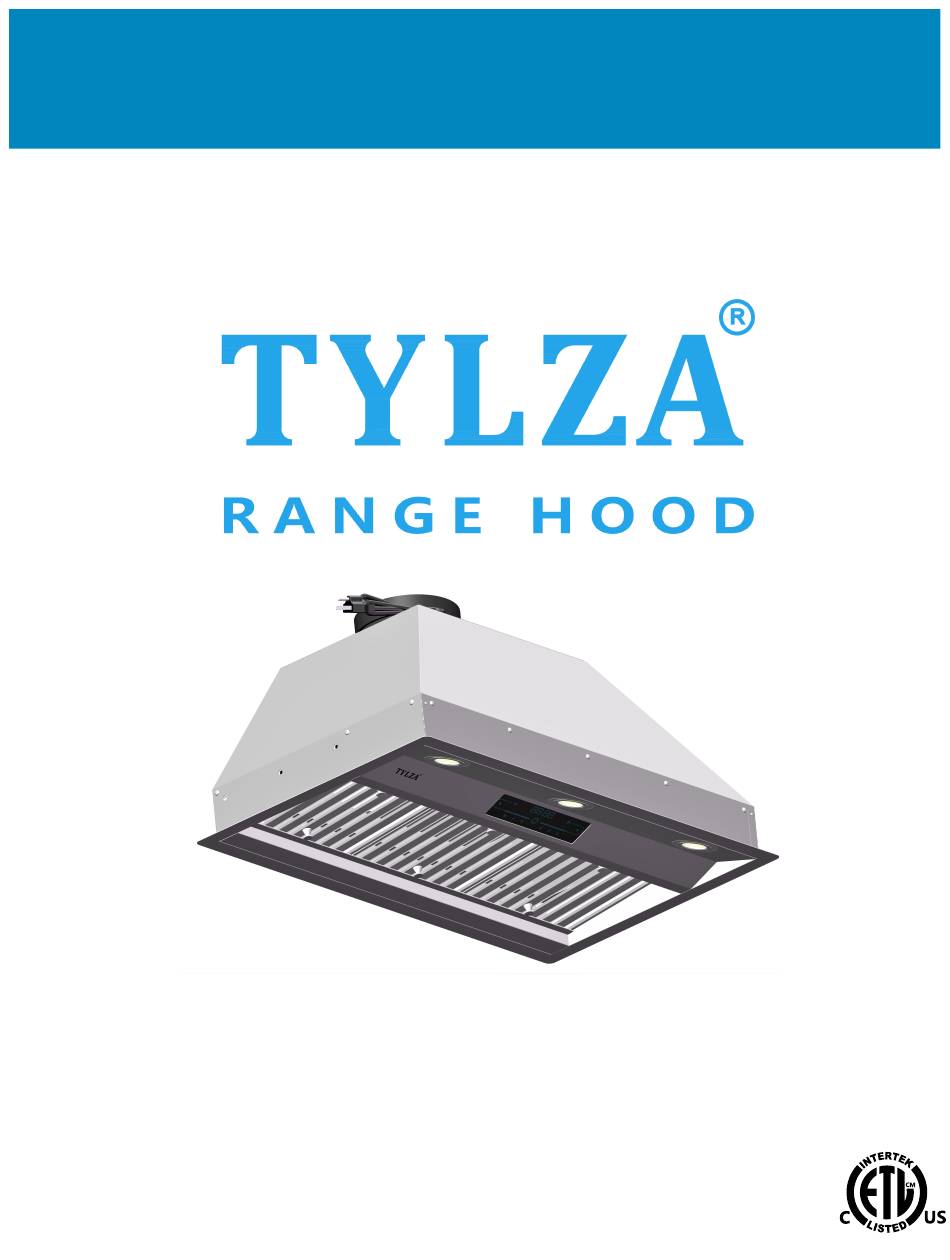

- Page 1 INSTALLATION GUIDE AND USERS MANUAL Professional Built-In Range Hood Model Name: KME06-30"/ KME06-36" NOTICE: For residential use only. Installer: Leave this guide with the homeowner. Homeowner: Keep this guide for future reference. Email address：Support@itylza.com Phone number: (213)352-5535...
- Page 2 The information in this document is subject to change without notice, please contact TYLZA Range Hoods for updated details.
-
Page 3: Table Of Contents
Venting Methods................19 Install a circulating charcoal filter............ 20 Wiring Diagram................. 21 Range Hood Operations..............22 Troubleshooting................23 Use and Care Information..............24 Maintenance..................25 Bulb Replacement................26 Exploded Diagram................27 Warranty and Service..............28 TYLZA range hoods 2 | E06... -
Page 4: Important Safety Notice
• Use high settings on cooking range only when necessary. • Never leave surface units unattended at high settings. Boil overs cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings. TYLZA range hoods... - Page 5 The manufacturer and/or distributor/reseller will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. TYLZA range hoods 4 | E06...
-
Page 6: Electrical Requirements
Wire sizes (copper wire only) and connections must conform with the rating of the appliance as specified on the model/serial rating label. Wire sizes must conform to the requirements of the National Electrical Code ANSI/NFPA 70 — latest edition*, or CSA Standards C22. TYLZA range hoods... -
Page 7: Venting Requirements
If available, also refer to stove top manufacturer’s height clearance requirements and recommended hood mounting height above range. Minimum Duct Size: • Round - 6” minimum * Due to different ceiling height configurations, recommended height may not be applicable. TYLZA range hoods 6 | E06... -
Page 8: Calculating Vent System Length
Approximately 23.5 / 0.4 to 60 / 7.0 (Lowest to highest Speed) Somatosensory / touch / remote control Control Type Illumination LED 3W 120V Venting Size Top Vent, 6 inch Round * Subject to change without notice, Please visit https://itylza.com TYLZA range hoods... -
Page 9: Required Tools
REQUIRED TOOLS Marker or Pencil Putty Knife Tape Measure Phillips Screwdriver Level Power Drill Aluminum Tape Utility Knife Drywall Knife TYLZA range hoods 8 | E06... -
Page 10: Parts Supplied
Ø - 6” Vent pipe adapter Ø - 6” Transition Carbon Filter Range Hood (Model:KME06-30 shown) Stainless steel baffle filter (x3) NOTE: Where necessary, additional screws will be needed for installation and added support, but is not included. Please review contents before installation. -
Page 11: Dimensions
E06 Series 〞 〞 〞 〞 TYLZA range hoods 10 | E06... -
Page 12: Preparation
NOTE: To avoid damage to your hood, prevent debris from entering the vent opening. 1. Disconnect power cord, remove the stainless steel baffle filter and grease tunnel. 2. Set aside the stainless steel baffle filters and grease tunnel until the range hood is properly installed. TYLZA range hoods... -
Page 13: Installation
NOTE: DO NOT USE threaded drywall anchors to support the hood when mounting the hood on sheet rock. Mounting the hood on wall studs or lumbars is highly recommended. TYLZA range hoods 12 | E06... - Page 14 Min: 26” Metal, wood, or stone panels may be used to build a closed Max: 30” cabinet surround and should Optimal: 28” accommodate the bottom lip of the range hood Cooking Surface TYLZA range hoods...
- Page 15 CAUTION: Make certain the range hood is secure before releasing! TYLZA range hoods 14 | E06...
- Page 16 Use 6” round steel pipe to connect the exhaust Ensure the cylinder duct passes through, leading to on the hood to the ductwork above. Use aluminum the roof cut out for exhaust connecting duct. foil tape to make all joints secure and air tight. TYLZA range hoods...
- Page 17 4. Plug in your range hood (5) Carefully insert and slide the range hood in the overhead cabinet. Make sure that side installation holes line up with the woodblock. TYLZA range hoods 16 | E06...
- Page 18 CAUTION: Make certain the range hood is CAUTION: Range hood is not fully secure, do secure before releasing! not release. Always maintain hold while preparing to add anchor screws TYLZA range hoods...
- Page 19 Slide toward and into the recess behind the front of hood while raising the filter at the rear. Place Grease Tunnel into the hood opening and insert into slot holding, as shown below. Lower filter while sliding back until it rests on to slot. TYLZA range hoods 18 | E06...
-
Page 20: Venting Methods
24” ¼ Min height: 86 ” from bottom of duct to ground when range height to stove is 30” 36” typical * Due to different ceiling height configurations, recommended height may not be applicable TYLZA range hoods... -
Page 21: Install A Circulating Charcoal Filter
Capable of Vent-less or recirculation Operation, please install this charcoal carbon filter as picture.(NO NEED TO DISASSEMBLE THE VOLUTE) Warning: if installed this charcoal filter to be ductless or recirculation mode, the noise would be more loudly, and the airflow would be less. TYLZA range hoods 20 | E06... -
Page 22: Wiring Diagram
WIRING DIAGRAM TYLZA range hoods... -
Page 23: Range Hood Operations
Remote control sensor receives infrared(IR) signal from the Remote control. The maximum distance for IR data transmission is 3 meter(10ft.) and requires direct line of sight.The transmission distance may vary depending on temperature and remote control battery condition. TYLZA range hoods 22 | E06... -
Page 24: Troubleshooting
Reduce the number of elbows and length of duct work. Check if all joints are properly con- nected, sealed, and taped. • Make sure the power is on high speed for heavy cooking. NOTE: For all other inquiries, please contact TYLZA Range Hoods. TYLZA range hoods... -
Page 25: Use And Care Information
DO NOT operate blowers when filters are removed. Never disassemble parts to clean without proper instructions. Disassembly is recommended to be performed by qualified personnel only. Read and understand all instructions and warnings in this manual before proceeding. TYLZA range hoods 24 | E06... -
Page 26: Maintenance
• Dry filters and re-install before using hood. Replacing Filters: • Should filters wear out due to age and prolonged use, please contact TYLZA Range Hoods to order replacement filters. • Note: Also replace damaged filter that has punctured or broken mesh, bent or broken frame. -
Page 27: Bulb Replacement
5. Disconnect the power cable and discard the old light fixture 6. Reverse the steps to install a new LED light fixture 7. Turn ON breaker and range hood to test for operation. Light Housing Power Plug Hood Panel Flat-head Screwdriver Metal Clip TYLZA range hoods 26 | E06... -
Page 28: Exploded Diagram
EXPLODED DIAGRAM TYLZA range hoods... -
Page 29: Warranty And Service
1. Customers are entitled to replacement or free repair service in case of quality defect(s) found in the product within 15 days upon receipt of the product. 2. Customers are entitled to free repair service from TYLZA for any product proven defective in material or workmanship that results in product failure during normal consumer usage and conditions within the valid warranty period, which is 12 months counting from the date of selling. - Page 30 Correct Disposal of this product: This marking indicates that this appliance should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
