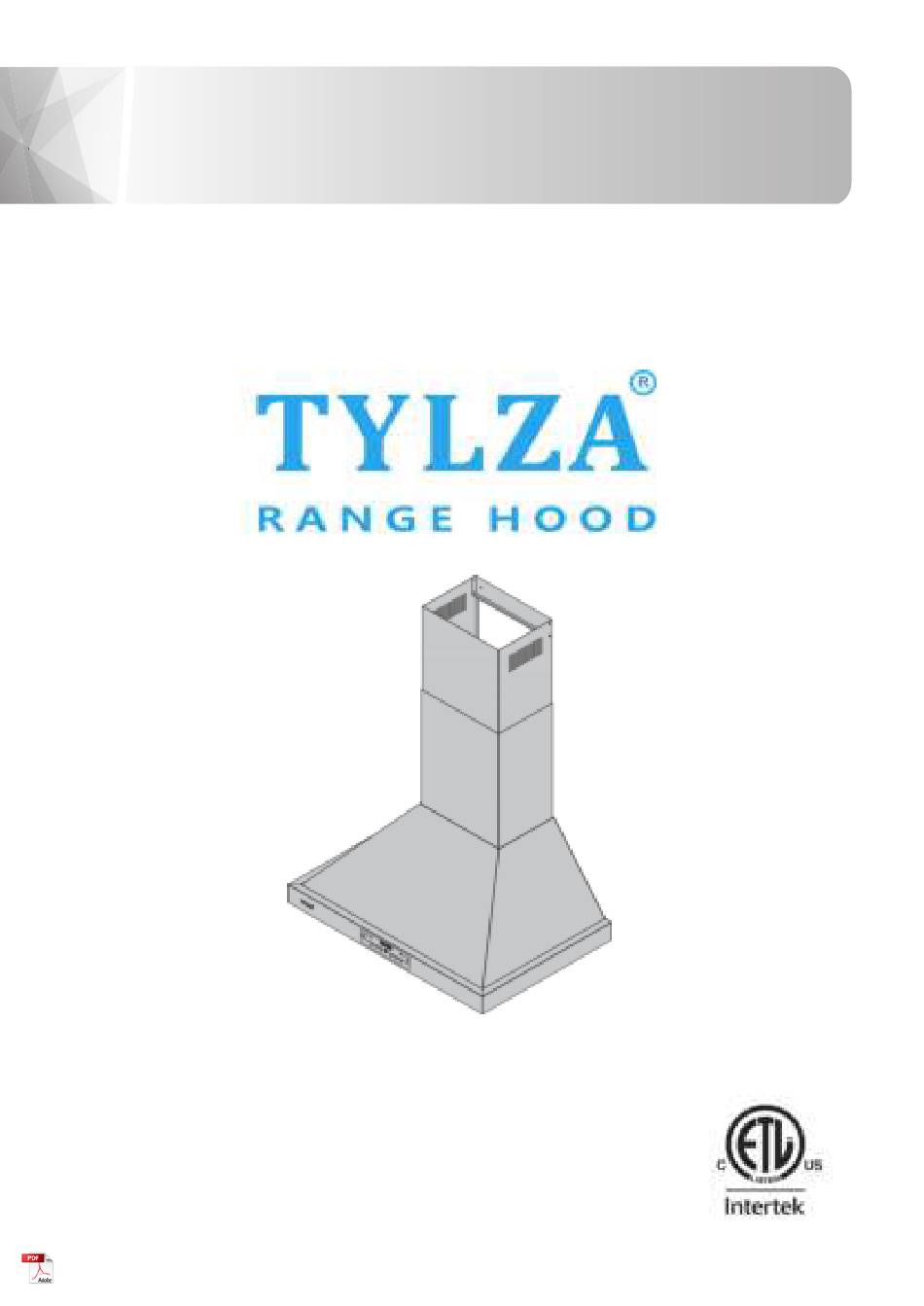

- Page 1 Installation Guide ＆ Users Manual WALL MOUNT RANGE HOOD Model:KMC03-30"/ KMC03-36" IMPORTANT: Read and save these instructions. NOTICE: For residential use only. Installer: Leave this guide with the homeowner. Homeowner: Keep this guide for future reference.
-
Page 2: Table Of Contents
MEASUREMENNTS ＆ DIAGRAMS TYLZA appliances are designed according to the strictest safety and PARTS DIAGRAM performance standard for the North American market. We follow the most advanced manufacturing philosophy. -
Page 3: Safety Instructions
STAINLESS STEEL FILTERS IMPORTANT SAFETY INSTRUCTIONS Read all instructions before using this appliance. Save these instructions for future references Approved for residential appliances For residential use only IMPORTANT SAFETY INSTRUCTIONS CAUTION WARNING FOR GENERAL VENTILATING USE ONLY. DO NOT USE GROUNDING INSTRUCTIONS TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS OR VAPORS. -
Page 4: Measuremennts ＆ Diagrams
MEASUREMENNTS ＆ DIAGRAMS PARTS DIAGRAM ***All inch measurements are converted from millimeters.Inch measurements are estimated. ***All measurements in ( ) are millimeters. 8.2 5 MODEL NO.: KMC03-30〞 KMC03-36〞 岫 6.89 " 7 " ， . . ". . MAIN PARTS 1. -
Page 5: Installation Requirements
INSTALLATION OVERVIEW INSTALLATION REQUIREMENTS 1. Do not install the range hood near open doors and windows to avoid reduced performance. (Fig.1) 2. Install the range hood directly above the cook top. The optimal distance between the cook top and lower edge of the range hood is 24" to 36". (Fig.2) Install at the height appropriate to your ceiling. -
Page 6: Range Hood Installation
RANGE HOOD INSTALLATION RANGE HOOD INSTALLATION Installations : SAFETY WARNING: Risk of electrical shock. This range hood must be properly Step 3: 11 1 grounded. Make sure this is done by qualified electrician in accordance with all Measure the distance between stove top and the applicable national and local electrical codes. -
Page 7: Recirculating Charcoal Filters
RANGE HOOD OPERATIONS RECIRCULATING CHARCOAL FILTERS Skip this step if you are installing a Ducted Range Hood. Charcoal Filters are Control Panel Layout and Buttons Configurations: only included with Ductless Models. A. Plus Button - used to increase settings. B. Minus Button - used to decrease settings. C. -
Page 8: Maintenance
MAINTENANCE TROUBLESHOOTING CAUTION: ALWAYS UNPLUG UNIT FROM POW ER BEFORE SERVICING CAUTION: NEVER PUT YOUR HAND INSIDE OF THE UNIT WHILE ITS OPERATING. FOR PROBLEM SOLUTION TOOLS THE BEST PERFORMANCE CLEAN YOUR RANGE HOOD REGULARLY. My range hood is noisy A. -
Page 9: Warranty And Service
WARRANTY AND SERVICE For full warranty details on this product please visit: https://itylza.com TO RECEIVE WARRANTY SERVICE, YOUR PRODUCT MUST BE REGISTERED. TO REGISTER, VISIT: https://itylza.com ＿ c® Correct Disposal of this product: This marking indicates that this appliance should not be disposed with other household wastes.
