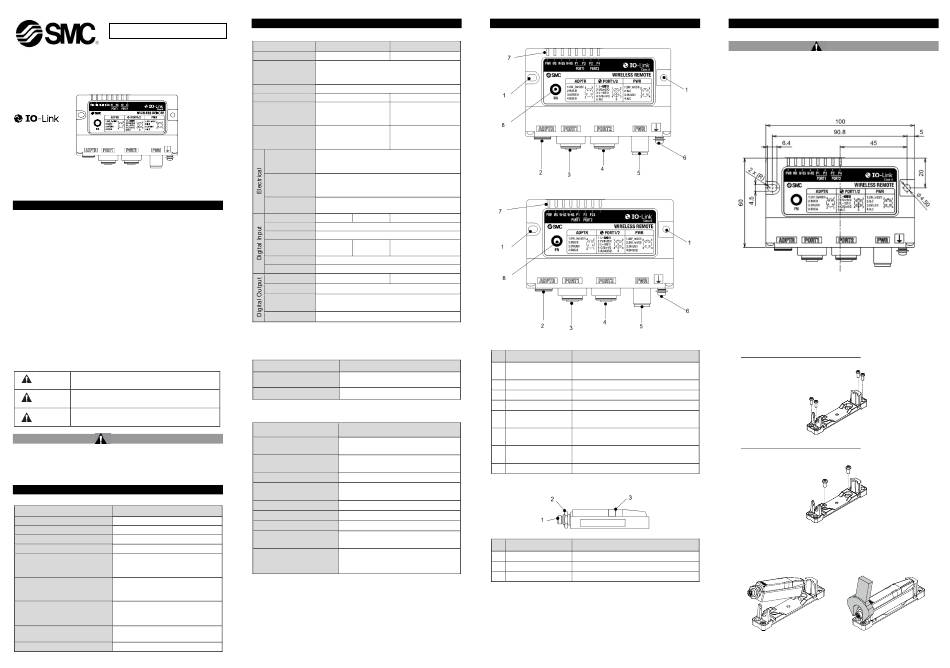

SMC Networks EXW1-RLAPA8C Series Instruction Manual

EXW1-TF223-045EN
ORIGINAL INSTRUCTIONS
Instruction Manual
SMC Wireless System - Compact Remote
Series EXW1-RLAPA8C / -RLBPA7C
The intended use of this product is to provide a connection from the SMC
wireless communication system to IO-Link and pneumatic devices.
1 Safety Instructions
These safety instructions are intended to prevent hazardous situations
and/or equipment damage. These instructions indicate the level of
potential hazard with the labels of "Caution," "Warning" or "Danger."
They are all important notes for safety and must be followed in addition
to International Standards (ISO/IEC) *1) , and other safety regulations.
ISO 4414: Pneumatic fluid power — General rules and safety
*1)
requirements for systems and their components.
ISO 4413: Hydraulic fluid power — General rules and safety
requirements for systems and their components
IEC 60204-1: Safety of machinery - Electrical equipment of machines.
Part 1: General requirements
ISO 10218-1: Robots and robotic devices - Safety requirements for
industrial robots - Part 1: Robots
• Keep this manual in a safe place for future reference.
• Refer to the product catalogue, Operation Manual and Handling
Precautions for SMC Products for additional information.
Danger indicates a hazard with a high level of risk which, if
Danger
not avoided, will result in death or serious injury.
Warning indicates a hazard with a medium level of risk
Warning
which, if not avoided, could result in death or serious injury.
Caution indicates a hazard with a low level of risk which, if
Caution
not avoided, could result in minor or moderate injury.
Warning
• Always ensure compliance with relevant safety laws and
standards.
All work must be carried out in a safe manner by a qualified person in
compliance with applicable national regulations.
2 Specifications
2.1 General specifications
Item Specification
Enclosure rating IP67
Ambient operating temperature -10 to +50 ° C
°
Ambient storage temperature -20 to +60 C
Ambient humidity 35 to 85% RH (no condensation)
500 VAC for 1 minute between
Withstand voltage
external terminals (including the FE
(EXW1-RL#)
terminal) and enclosure screws
10 MΩ or more (500 VDC between
Insulation resistance
external terminals (including the FE
(EXW1-RL#)
terminal) and enclosure screws
EN61131-2 compliant:
5  f < 8.4 Hz 3.5 mm
Vibration resistance
8.4  f < 150 Hz 9.8 m/s
EN61131-2 compliant:
Impact resistance
2
147 m/s , 11 ms
Weight (EXW1-RL# + A11#) 150 g + 40 g
2 Specifications (continued)
2.2 EXW1-RL# specifications
Model EXW1-RLAPA8C
Port class Class A
COM1 (4.8 kbps), COM2 (38.4 kbps), COM3
Transmission
(230.4 kbps) automatically switches depending
speed
on connected device
IO-Link version Version 1.1
Number of ports Max. 4
US1 Power supply
0.5 A / connector
current (between
(1 A / unit) max.
L+ and L-)
US2 Power supply
－
(between P24 and
N24)
US1 (for
control) power 24 VDC +/-10 %
supply voltage
US2 (for
output) power 24 VDC +/-10 %
supply voltage
Current
100 mA or less
consumption
Number of pins 2 4
Input polarity
Protection Short circuit protection
ON input 2.5 mA 5.8 mA
current Typ. Typ.
ON voltage 13 V or more
OFF voltage 8 V or less
Number of pins 2,4
Output type
Max. load 0.25 A / output
current (C/Q) (from the power supply for control / input)
Protection Short circuit prevention
2.3 EXW1-A11# wireless adapter specifications
Item
US1 (for control) power
24 VDC +/-10 %
supply voltage
Current consumption 50 mA or less
2.4 Wireless Communication specifications
Item Specifications
SMC original protocol
Protocol
(SMC encryption)
Frequency Hopping Spread Spectrum
Radio wave type (spread)
Frequency band 2.4 GHz (2403 to 2481 MHz)
Frequency channel select
function (F.C.S.)
Frequency channel 79 ch max. (Bandwidth: 1.0 MHz)
Communication speed 250 kbps (v1.0) / 1 Mbps (v2.0)
Frequency hopping cycle 5ms (v1.0) / 2ms (v2.0)
Up to 100 m line of sight
Communication distance
(depending on the environment)
Refer to the official SMC website for the
Radio Law certificates latest information as to which countries
the product is certified.
*1: The number of selectable frequency channels varies depending on
the product number.
*2: Select a protocol before performing pairing (v2.0: 1 Mbps, v1.0: 250
kbps). Different communication speeds are mutually incompatible.
2
3 Name and Function of parts
• EXW1-RLAPA8C
EXW1-RLBPA7C
Class B
Max. 2
0.3 A / connector
(0.6 A / unit) max.
1.6 A / connector
2 A / unit max.
• EXW1-RLBPA7C
4
PNP
5.8 mA Typ.
4
PNP
No. Name
Specification
1 Mounting hole
2 ADPTR Connector
3 PORT1 Connector
4 PORT2 Connector
PWR Power supply
5
connector
6 FE terminal
7 LED indicator
(FHSS)
8 FN (Pairing button)
• EXW1-A11#
*1
Supported
*2
No. Name
1 Connector
2 Nut
3 LED display
* Use the wireless adapter cable specified to connect to the wireless
adapter.
• Ground connection
The Ground connection to the FE terminal (M4 mounting hole) for the
EXW1-RL# should be as close as possible to the product and the
grounding wire should be as short as possible.
4 Installation
4.1 Installation
• Do not install the product unless the safety instructions have been read
and understood.
4.2 Mounting the Compact Remote unit
• Mount the unit with M4 screws (not supplied) using the 2 mounting
holes in the unit (Recommended torque: 0.8 ±10% N•m).
• Mount the product using 2 screws.
4.3 Mounting the Wireless Adaptor (EXW1-A11#)
• Mounting on a flat surface
(1) Attachment of installation plate
Attach the installation plate in the required location using either of the
following two methods.
Installation using M3 screws x 4 positions
Application
The recommended tightening torque is 0.4 N•m ± 10% (screws are
Mounting holes for compact wireless
not included).
remote (2 x M4).
Connector for wireless adapter cable.
Connector for IO-Link communication.
Connector for IO-Link communication.
Supplies power to the compact wireless
remote.
To be connected to Ground (for improved
noise immunity).
Installation using M4 screws x 2 positions
Indicates the status of the compact
The recommended tightening torque is 0.6 N•m ± 10% (screws are
wireless remote or IO-Link device.
not included).
Press the button to select pairing mode.
(2) Installation of wireless adaptor
Clip the wireless adaptor onto the installation plate as shown below
Application
and secure the adaptor in place using the M10 nut already fitted to
Connector for Wireless Adaptor cable.
the wireless adaptor. The recommended tightening torque is 0.9 N•m
For mounting.
± 10%.
Indicates the status of the adaptor.
Warning
