3. Installation
3.1. Space Requirements
• Maximum installation plate thickness: 8 mm.

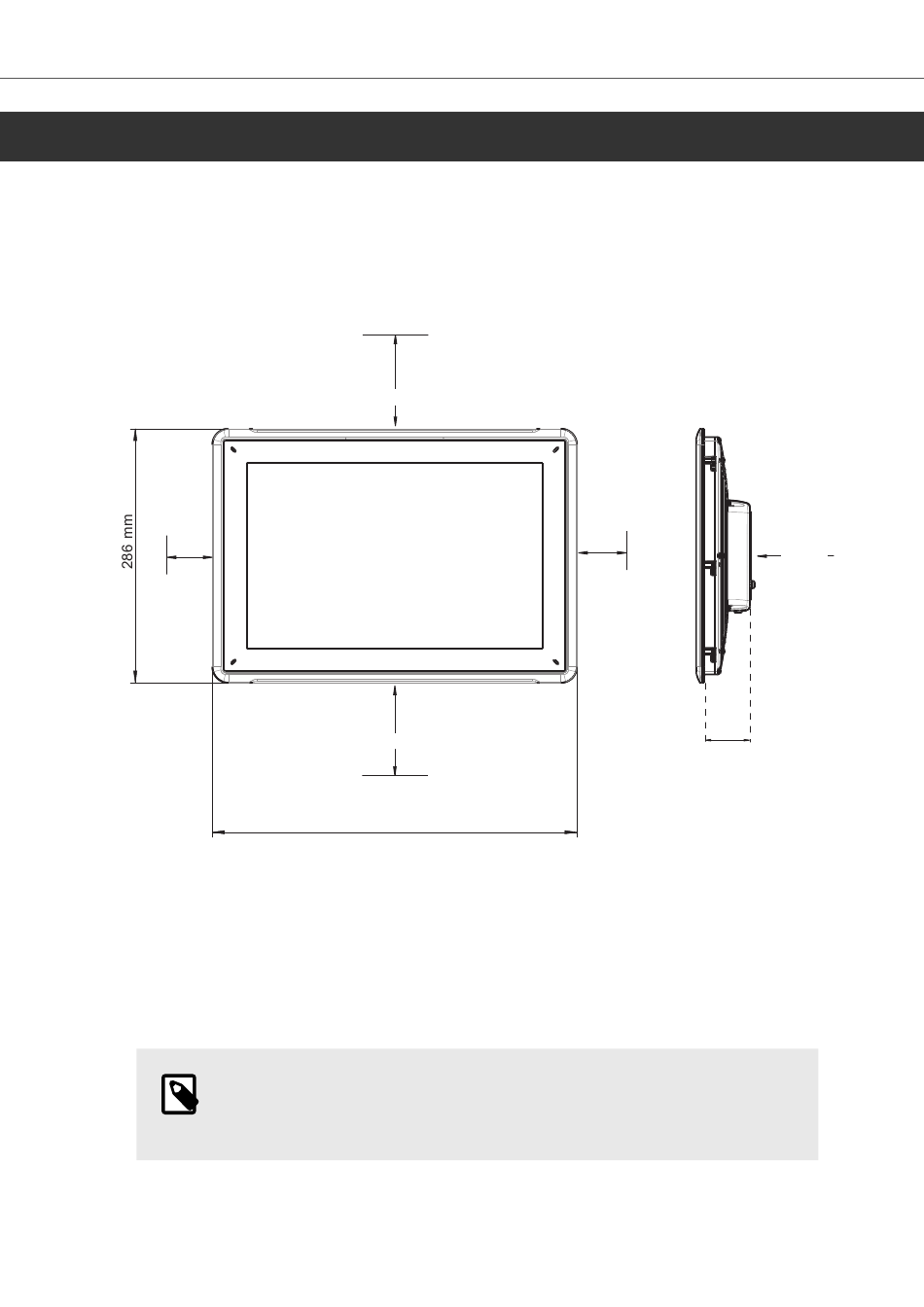

The following drawings show the space requirements in millimeters when installing the HMI panel.
The drawings are only illustrative and may be out of proportion.
50 mm
3.2. Installation Process
The following is needed:
• A Phillips/slot screwdriver
Do the following:
1.
Unpack and check the delivery. If damage is found, notify the supplier.
NOTE
Place the on a stable surface during installation. Dropping the HMI panel or
letting it fall may cause damage.
Beijer Electronics, MAEN349
100 mm
100 mm
410 mm
11
Installation
50 mm
53 mm
100 mm
2023-09
