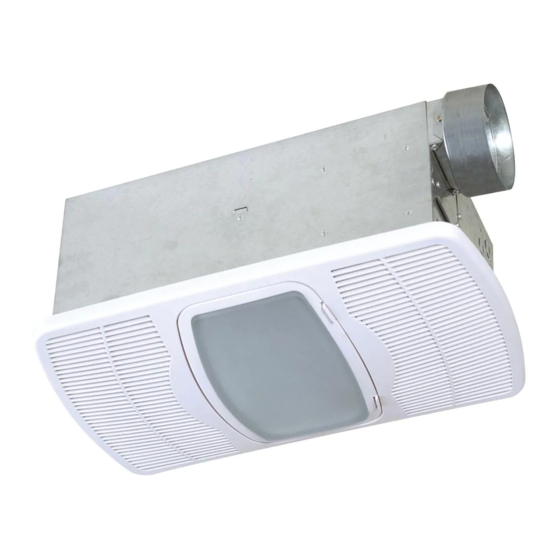

Air king exhaust fan 1350 watts - 70 cfm/5.0 sones 0.10" wg. hvi certified 120 volts, 11.2 amps, 60 hz.
Hide thumbs Also See for AK55L:

Advertisement

• Grill
White, polymeric grill (flame retardant ABS UL rated 94-5V)
secured in place using 2 hex nuts that can be easily removed
if necessary, dimensions - 17
• Light Lens
Moonstone glass lens, installed in a flip down lens holder.
Secured in place using integral tabs.
• Blower Wheels
Heater blower wheel - one piece metal electronically balanced,
Ventilation blower wheel - one piece polymeric electronically
• Motors
Heater motor - Heavy duty, plug in 2 pole motor. Life time
lubrication, thermally protected.
Rated 120 volts, 60 hz., 0.90 amps., 2400 rpm.
Ventilation motor - Heavy duty, plug in 2 pole motor. Life time
lubrication, thermally protected.
Rated 120 volts, 60 hz., 1.2 amps.
• Heater Housing
23 gauge galvanized steel housing. Dimensions 14
• Heating Element
Ultra safe ceramic heating element bonded to large heat transfer
surface allows heating at very low operating temperature. Self
regulating design provides 1,350 Watts – 4,600 Btu.
• Duct Collar
4" round, zinc plated metal collar adapter with aluminum
backdraft damper.
Air Flow - CFM
76
PROJECT
LOCATION
CONTRACTOR
FAN
MODEL
CFM
NUMBER NUMBER
C
US
Specifications subject to change without notice.
1350 watts - 70 CFM/5.0 SONES @ 0.10" wg.
HVI CERTIFIED 120 Volts, 11.2 amps, 60 hz.
1 / 8
" x 9
7 / 8
".
3
11 / 16
" x 2" with 28 fins.
balanced, 4
5 / 8
" x 1" with 10 fins.
1 / 2
" x 8
Static Pressure (inches of w.g.)
0
0.05
0.1
0.15
73
70
67
IN
RPM
WATTS
W.G.
6
1 / 2
"
9
7 / 8
CUL/HVI - TYPE IC RATED
• Ventilating Area
For bathrooms up to 70 sq. ft. For other rooms up to 85 sq. ft.
• Lamping Information
Up to 100 watt incandescent capacity, type A lamp required.
• Unit Mounting
Designed for ceilings insulated to R-40. Designed to mount in
3 / 8
" x 6
1 / 2
".
ceilings with at least 7.5" of clearance. The unit will mount
between joists (with 16" centers) or butted up against a joist.
The housing will mount through drywall thickness up to
with a rough in opening of 14
• Single Pack Shipping Info
Box Dim: 21
UPC: 0-83162901002
Shipping Weight: 16.09 lbs.
PERFORMANCE
0.2
0.25
0.3
64
61
57
ARCHITECT
ENGINEER
SUBMITTED BY
AMPS
SONES
QTY
U.S.: 820 Lincoln Drive
West Chester, Pennsylvania 19380-4466
Tel: (877)-304-3785
Fax: (610) 696-8048
SPECIFICATIONS
AK55L
EXHAUST FANS
14
1 / 2
"
"
17
"
1 / 8
3 / 4
" x 8
5 / 8
".
1 / 8
" x 11
1 / 4
" x 9
3 / 4
"
HVI Sones
Fan Speed
@ .1 SP
0.35
53
5.0
DATE
OPTIONAL EQUIPMENT
& REMARKS
Canada: 110 Glidden Road
Brampton, Ontario L6T 2J3
Tel: (905) 456-2033
Fax: (905) 456-1015
8
3 / 8
"
4"
3 / 4
",
Power
RPM
Watts
2575
54
Updated 5-06
