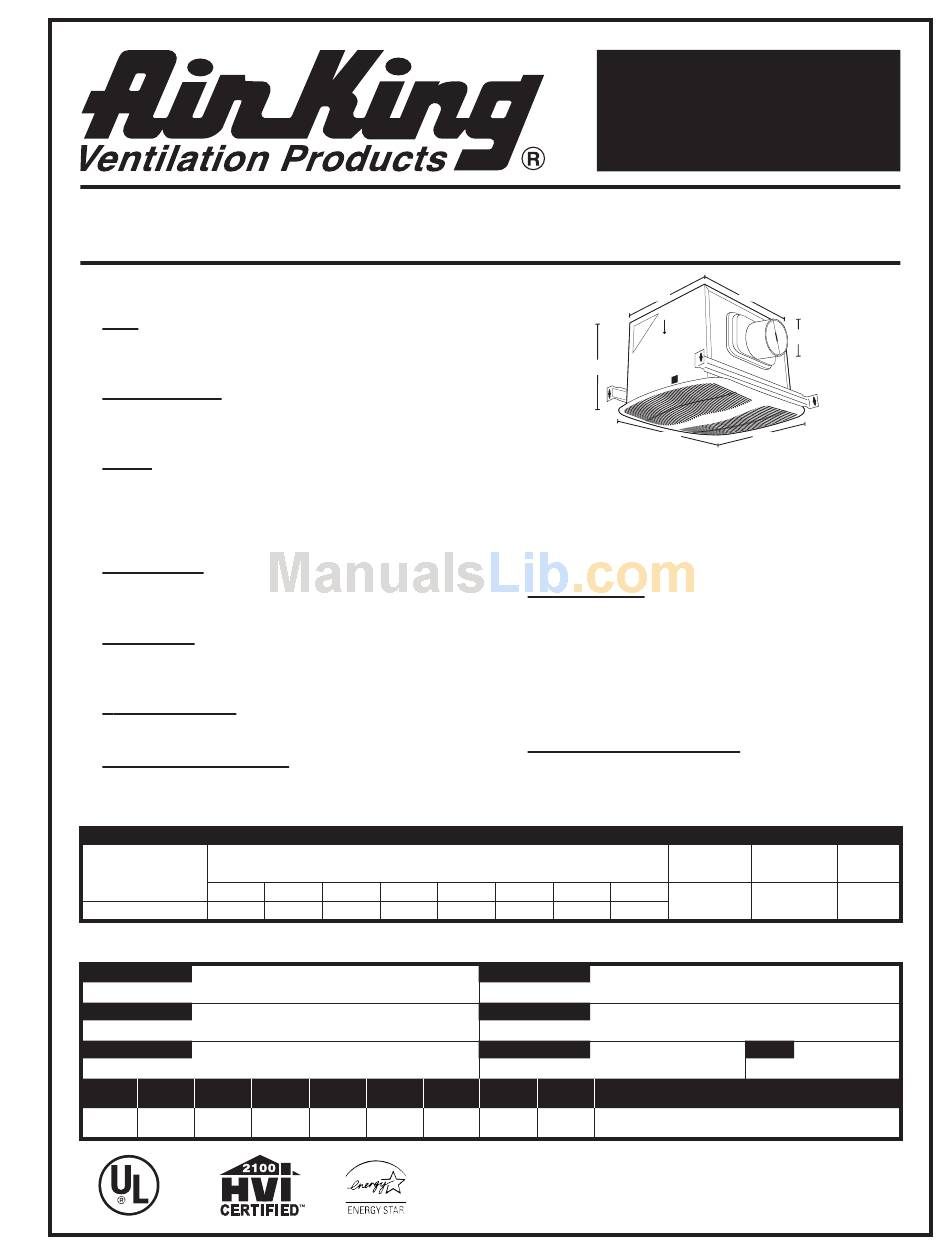

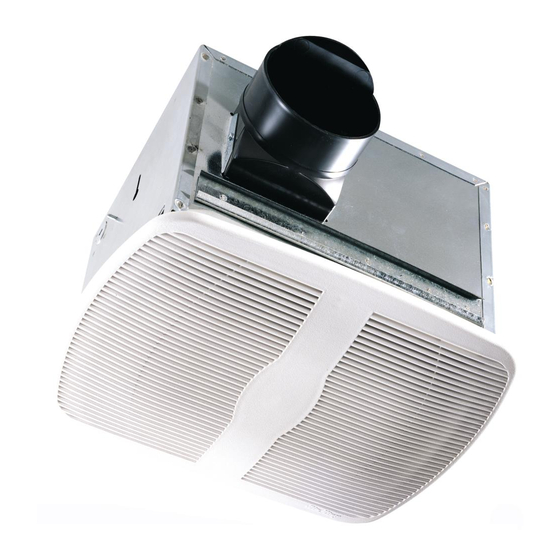

Air King Exhaust Fan AK50LS AK50LS Specifications

• Grill
White, polymeric grill secured in place with torsion springs;
easily removed if necessary, dimensions - 11" x 13
• Blower Wheel
Balanced polymeric dual inlet blower wheel 5
depth, 30 paddles, secured in place using 8M hex nut.
• Motor
Enclosed 4 pole electronically balanced permanently split
capacitor motor (PSC); Thermally protected and life time
lubricated. Motor bearings - ball. Rated 115/120 volts, 60 Hz,
0.25 amps.
• Fan Housing
23 gauge galvanized steel housing, fully sealed.
Overall dimensions 10
• Duct Collar
4" round, zinc plated metal collar adapter. 4" spring loaded
aluminum backdraft damper.
• Ventilating Area
For bathrooms up to 50 sq. ft. For other rooms up to 60 sq. ft.
• Electrical Connections
1 / 2 " electrical knockouts provided. Easy wiring access via either
internal or external wiring compartment cover.
Air Flow - CFM 54
PROJECT
LOCATION
CONTRACTOR
FAN MODEL
CFM
NUMBER NUMBER
C US
Specifications subject to change without notice.
50 CFM/0.5 SONES @ 0.10" WG.
HVI CERTIFIED 120 Volts, 0.25 amps, 60 hz.
3 / 4
13 / 32 " dia. x 4"
7 / 8 " x 9 3 / 8 " x 7 7 / 8 ".
Static Pressure (inches of w.g.)
0 0.05 0.1 0.125
52 50 48
IN
RPM WATTS
W.C.
".
7 7 / 8
Acceptable for use over tub or shower when
installed in a GFCI protected branch circuit.
• Unit Mounting
Rated for ceilings insulated to R-40. Using 4 provided housing
mounting rails, the fan will mount either between 16" or 24" on
center joists. Using the supplied housing mounting rails the
housing may be mounted directly to the joist and easily adapted
for left or right hand ducting, as well the provided housing
mounting rails can be adapted for overhead monting (hardware
not provided)
• Single Pack Shipping Info
Box Dim Box Dim: 14
UPC: 0-8316225321-7
Shipping Weight: 11.5 lbs.
PERFORMANCE
0.15 0.2 0.25
47 41 31
ARCHITECT
ENGINEER
SUBMITTED BY
AMPS SONES QTY
U.S.: 820 Lincoln Drive
West Chester, Pennsylvania 19380-4466
Tel: (610) 692-7400 • 877-304-3785
Fax: (610) 696-8048
SPECIFICATIONS
AK50LS
EXHAUST FANS
9 3 / 8 " 10 7 / 8 "
"
13 3 / 4 " 11"
CUL/HVI
1 / 8 " x 11 5 / 8 " x 9 5 / 8 "
HVI Sones Fan Speed
@ .1 SP RPM
0.3
17 0.5
DATE
OPTIONAL EQUIPMENT
& REMARKS
Canada: 110 Glidden Road
Brampton, Ontario L6T 2J3
Tel: (905) 456-2033
Fax: (905) 456-1015
4"
Power
Watts
875 28
Updated 5-06
