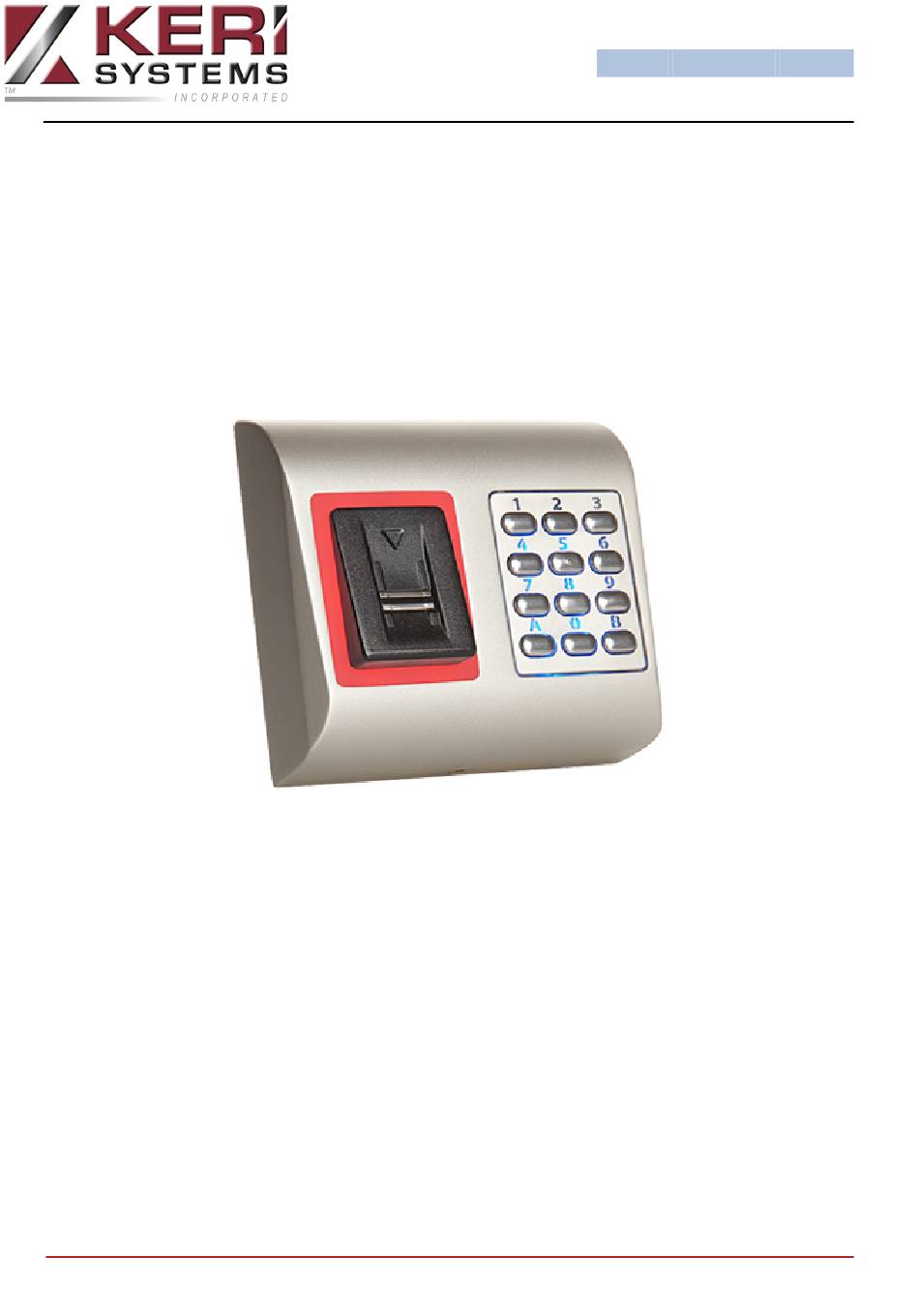

- Page 1 BioSync Fingerprint Readers B100-KP Fingerprint Reader Setup Guide - 1 - P/N: 02384-001 - Rev C...
-
Page 2: Table Of Contents
1.0 Introduction 2.0 Mounting Instructions 3.0 Wiring Instructions 4.0 Connecting the B100 Readers to Multiple NXT-MSC Controllers 5.0 Add the B100-KP to the BioManager Software 6.0 Enrolling Users Using the Reader 7.0 Enrolling Fingerprints 8.0 Check Communication and Memory Status 9.0 Deleting Fingerprints... -
Page 3: Introduction
BioSync Fingerprint Readers 1.0 Introduction Setting up a B100-KP reader as a new installation is a three step process. Each of these steps is covered in its own document: BioManager Software Installation (p/n: 02301-001) CNV Converter Setup (p/n: 02303-001) - (used to connect to the BioSync... -
Page 4: Mounting Instructions
BioSync Fingerprint Readers The B100-KP biometric keypad reader is a Wiegand biometric fingerprint reader and keypad for indoors and outdoors access control applications and features a backlight and programmable Wiegand output. It offers storage of up to 100 fingerprints, programmable Wiegand output (8 to 128 bits) and selectable PIN code length. - Page 5 BioSync Fingerprint Readers It is also strongly recommended to use dual technology biometric readers when used out- doors to offer first higher security but also the possibility to use different readers to suit different types of users. - 5 - P/N: 02384-001 - Rev C...
-
Page 6: Wiring Instructions
BioSync Fingerprint Readers 3.0 Wiring Instructions Wiring to an NXT RM3 (Reader Interface Module) Reader Interface Module Notes: On the Reader Interface Module (RM3) the J3 jumper should be set to pins 1 and 2. This will provide 12VDC to the B100 reader and when correctly set the D10 LED should be solid red. - Page 7 BioSync Fingerprint Readers Wiring to the PXL-500W Controller PXL Notes: On the PXL-500W controller, the JP5 jumper should be set to pins 1 and 2 - this will provide 12VDC to the BioSync and on the PXL-500W LED10 will be solid red. BioSync readers ar eONLY supported on the PXL-500W, they are NOT supported on the PXL-500P controller.
- Page 8 BioSync Fingerprint Readers EP Controller Notes BioSync readers have two LED lines but the EP controllers only have one LED pin- out. This is overcome by wiring the Red LED wire into the buzzer pin-out (pin 4) and in Doors.NET you have to set the BioSync reader as being a Dual LED reader type. - In Doors.NET go to Setup >>...
- Page 9 The maximum current draw for the BioSync B100-KP is approximately 150mA. When using a separate power supply for the reader, connect the Ground for both devices to ensure correct transfer of the Wiegand signal.
-
Page 10: Connecting The B100 Readers To Multiple Nxt-Msc Controllers
4.0 Connecting the B100 Readers to Multiple NXT- MSC Controllers 5.0 Add the B100-KP to the BioManager Software Once you have installed the BioManager Software, setup the CNV converter, set the reader's DIP switch and added the CNV converter as a portal, you are ready to add the B100 to the BioManager software. - Page 11 BioSync Fingerprint Readers 2. If using BioManager for the first time you will be automatically logged into the cli- ent, otherwise you may be prompted for a user name and password. 3. On the left of the screen you should see a portal listed. An existing system will also have BioSync readers listed.
- Page 12 4. Enter a description for the B100. 5. Select the exact model (B100-KP) from the Type drop-down list. 6. Select the Wiegand output type. Typically for the B100-KP this should be left at the default setting of Wiegand26. 7. The Wiegand Output type should be SingleWiegand.
- Page 13 BioSync Fingerprint Readers 9. Enter the device ID/serial number. 10. For now, all other settings can be left at their default values. 11. Click the SAVE & EXIT button. 12. In the live events grid you should see an online message for the reader. 13.
-
Page 14: Enrolling Users Using The Reader
BioSync Fingerprint Readers 6.0 Enrolling Users Using the Reader 1. Double-click the Users link to open the User window. 2. Click the New User button. 3. Enter a User ID (Cardnumber) - This is the number that will be transmitted by the B100 to the Doors.NET software - It therefore will be unique to each users. - Page 15 BioSync Fingerprint Readers 4. Next, enter an Access Code (this in the number that is entered into the keypad). 5. Click the SAVE NEW button. - 15 - P/N: 02384-001 - Rev C...
-
Page 16: Enrolling Fingerprints
3. A 30 second count down will begin and the fingerprint sensor LED will be flickering quickly between amber and green. 4. Swipe the finger a minimum of 5 times at the B100-KP reader. 5. On the diagram a red circle will appear on the fingertip, there will be a number dis- played - ensure this number is greater than 75% to ensure effective accuracy of fin- gerprint verification. -
Page 17: Check Communication And Memory Status
BioSync Fingerprint Readers Example: If the user has “Unlimited” Access level then the fingerprints will be sent to all readers, if the user has Access level only for Reader 1 and Reader 3 then the fingerprints will be sent only to those two readers. Note: If more fingerprints are added for one user, all fingerprints will send the same Wiegand Code (the User ID) to the controller. -
Page 18: Deleting Fingerprints
BioSync Fingerprint Readers 9.0 Deleting Fingerprints In general, the fingerprints are stored in the biometric reader and in the software. Delet- ing can be done only in the readers or from both places. Deleting one user from the biometric reader Select the user Click on “Delete User”. -
Page 19: Changing The B100 Reader Mode
BioSync Fingerprint Readers 10.0 Changing the B100 Reader Mode The following steps explain how to change the user authentication operating mode in BioManager. 1. In the BioManager software (in the upper-left pane), right-click on the BioSync reader and select Properties. 2. -
Page 20: Enable Or Disable The Keypad Or Sensor Backlight
To enable or disable either the keypad backlight or the sensor backlight you must first ensure you are at least using Biosync firmware version 1.25. 1. Right-click the B100-KP from the reader list on the left, select Properties. 2. There are two backlight options (Disable Backlight and Keypad Backlight) 3. -
Page 21: Enrolling The Users Into Doors.net
BioSync Fingerprint Readers 5. Click the SAVE & EXIT button and the settings will be sent to the reader. 12.0 Enrolling the Users into Doors.NET The same users now need to be added to Doors.NET because so far we have only added the users to the reader software and the BioManager software (not to the controller). - Page 22 2. Locate the bus which the BioSync reader is on and select the BioSync reader. 3. The reader properties will appear on the right. 4. Locate Manufacturer Model and select Keri BioSync B100-KP from the drop-down list. - 22 - P/N: 02384-001 - Rev C...
- Page 23 BioSync Fingerprint Readers 5. Save the reader settings 6. Close the hardware page. 12.2 Manually Enroll the Cardholder 1. Go to Home >> Cardholders. 2. Click the Add icon. 3. Enter a first name and last name for the new cardholder (middle name is optional). - 23 - P/N: 02384-001 - Rev C...
- Page 24 BioSync Fingerprint Readers 4. Ensure Calculate Internal Number is selected and the format is correct. 5. Enter the Facility Code and the Imprint (Site Code and User Code in BioManager). 6. Set the status to Active. 7. Click the Add Card button. 8.
- Page 25 BioSync Fingerprint Readers 9. Go to the Access Rights tab and assign an access group to the new cardholder (i.e Total Access). 10. Save the new record 11. If you now gain access at the B100 reader - the reader LED should go green and you should see an access granted event in the Live Events grid.
- Page 26 BioSync is set to Finger/Finger or Card modes, and you only present the enrolled finger, the same name and card number will appear in Live Events. Contact Keri Systems Keri USA Keri UK, Ireland, Europe Unit 17, Park Farm Industrial Estate, 302 Enzo Drive.
