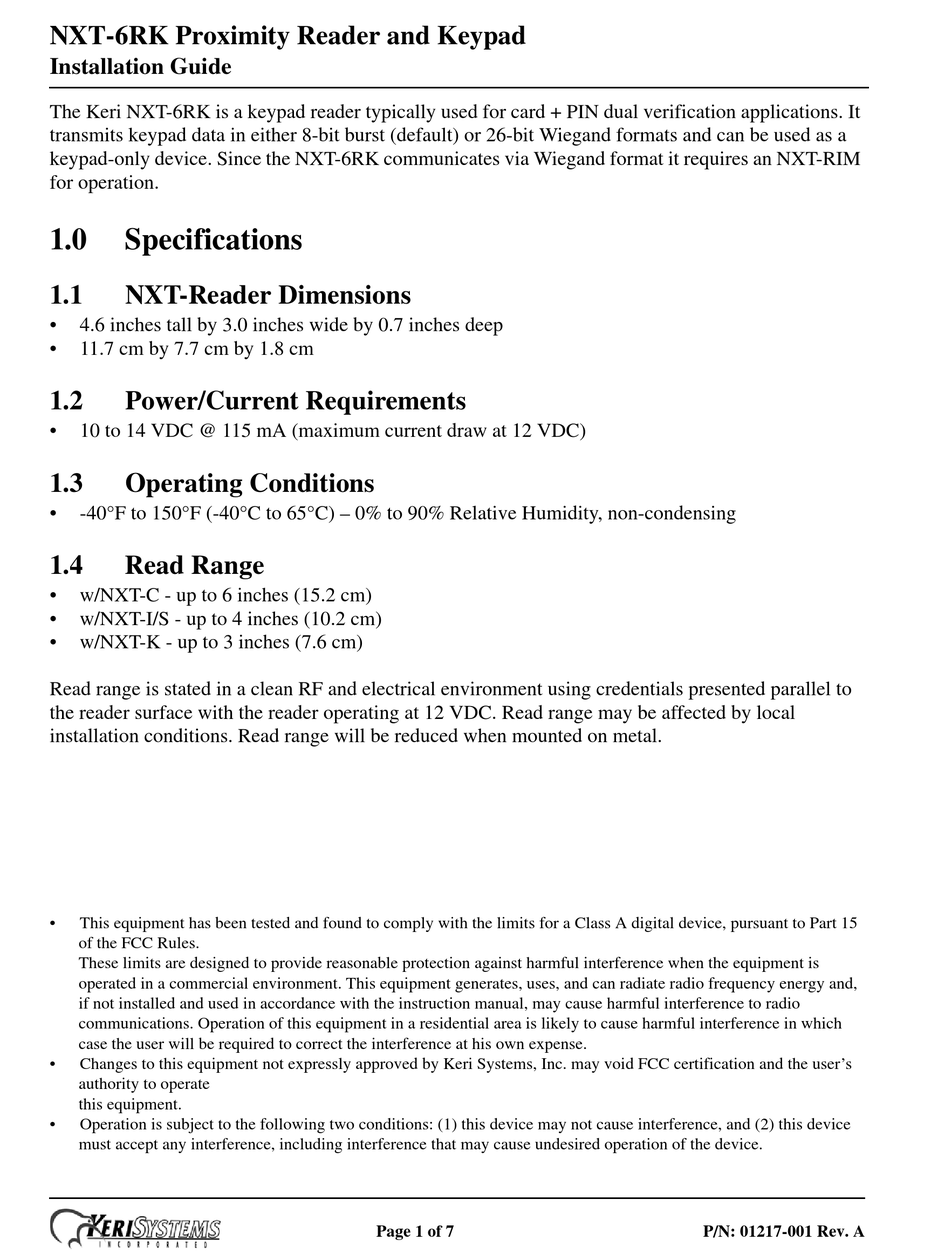

NXT-6RK Proximity Reader and Keypad
Installation Guide
The Keri NXT-6RK is a keypad reader typically used for card + PIN dual verification applications. It
transmits keypad data in either 8-bit burst (default) or 26-bit Wiegand formats and can be used as a
keypad-only device. Since the NXT-6RK communicates via Wiegand format it requires an NXT-RIM
for operation.
1.0

Specifications

1.1
NXT-Reader Dimensions
4.6 inches tall by 3.0 inches wide by 0.7 inches deep
11.7 cm by 7.7 cm by 1.8 cm
1.2
Power/Current Requirements
10 to 14 VDC @ 115 mA (maximum current draw at 12 VDC)
1.3
Operating Conditions
-40°F to 150°F (-40°C to 65°C) – 0% to 90% Relative Humidity, non-condensing
1.4
Read Range
w/NXT-C - up to 6 inches (15.2 cm)
w/NXT-I/S - up to 4 inches (10.2 cm)
w/NXT-K - up to 3 inches (7.6 cm)
Read range is stated in a clean RF and electrical environment using credentials presented parallel to
the reader surface with the reader operating at 12 VDC. Read range may be affected by local
installation conditions. Read range will be reduced when mounted on metal.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15
of the FCC Rules. 
These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
Changes to this equipment not expressly approved by Keri Systems, Inc. may void FCC certification and the user's
authority to operate 
this equipment.
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of the device.
Page 1 of 7
P/N: 01217-001 Rev. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NXT-6RK and is the answer not in the manual?

Questions and answers

Summary of Contents for Keri Systems NXT-6RK

  • Page 1: Specifications

    NXT-6RK Proximity Reader and Keypad Installation Guide The Keri NXT-6RK is a keypad reader typically used for card + PIN dual verification applications. It transmits keypad data in either 8-bit burst (default) or 26-bit Wiegand formats and can be used as a keypad-only device.
  • Page 2 NXT-6RK Proximity Reader and Keypad Installation Guide Keypad Formats • 8-bit burst (default) • 26-bit Wiegand The Keypad format can be toggled between 8-bit burst and 26-bit Wiegand using the KeypadDataMode card that is provided with the keypad. Present this card within 60 seconds of power up to toggle between states.
  • Page 3 NXT-6RK Proximity Reader and Keypad Installation Guide Installation Drawing 3.00" (77 mm) Reader Cover Reader Base 1.5" (38.10 mm) 0.625" (15.87 mm) 3.125" (79 mm) 3.314" 3.939" 7/8" Dia (84 mm) (100.05 mm) (22 mm) Drill Size for Cable & Beeper...
  • Page 4 NXT-6RK Proximity Reader and Keypad Installation Guide Wiring and Configuration Drawing NXT-6RK to RIM Wiring and Configuration Drawing Reader LED Configuration RS-485 Comm - D8 D1 - Single-line, three-color LED Reader Type D2 - Dual-line LED - Keri default NXT-6RK Keypad Reader - D6...
  • Page 5 5. LED D2 should be lit indicating the RIM is set in it’s default mode. This is the correct mode for the NXT-6RK Keypad Reader. If D2 is not lit, press SW1 to step through the supported LED line configuration types. Each press of SW1 will step to the next LED configuration type.
  • Page 6 NXT-6RK Proximity Reader and Keypad Installation Guide Verifying RIM Configuration The corresponding reader type and line control mode LEDs are illuminated during operation. Refer to the Drawing on page 1 for switch and LED locations, and the Table on page 2 for switch and LED definitions to confirm your configuration settings.
  • Page 7 NXT-6RK Proximity Reader and Keypad Installation Guide Contact Keri Systems Keri USA Keri UK, Ireland, Europe 2305 Bering Drive Unit 17 San Jose, CA 95131 Park Farm Industrial Estate Ermine Street Buntingford Herts SG9 9AZ UK Telephone: (800) 260-5265 Telephone: + 44 (0) 1763 273 243...
