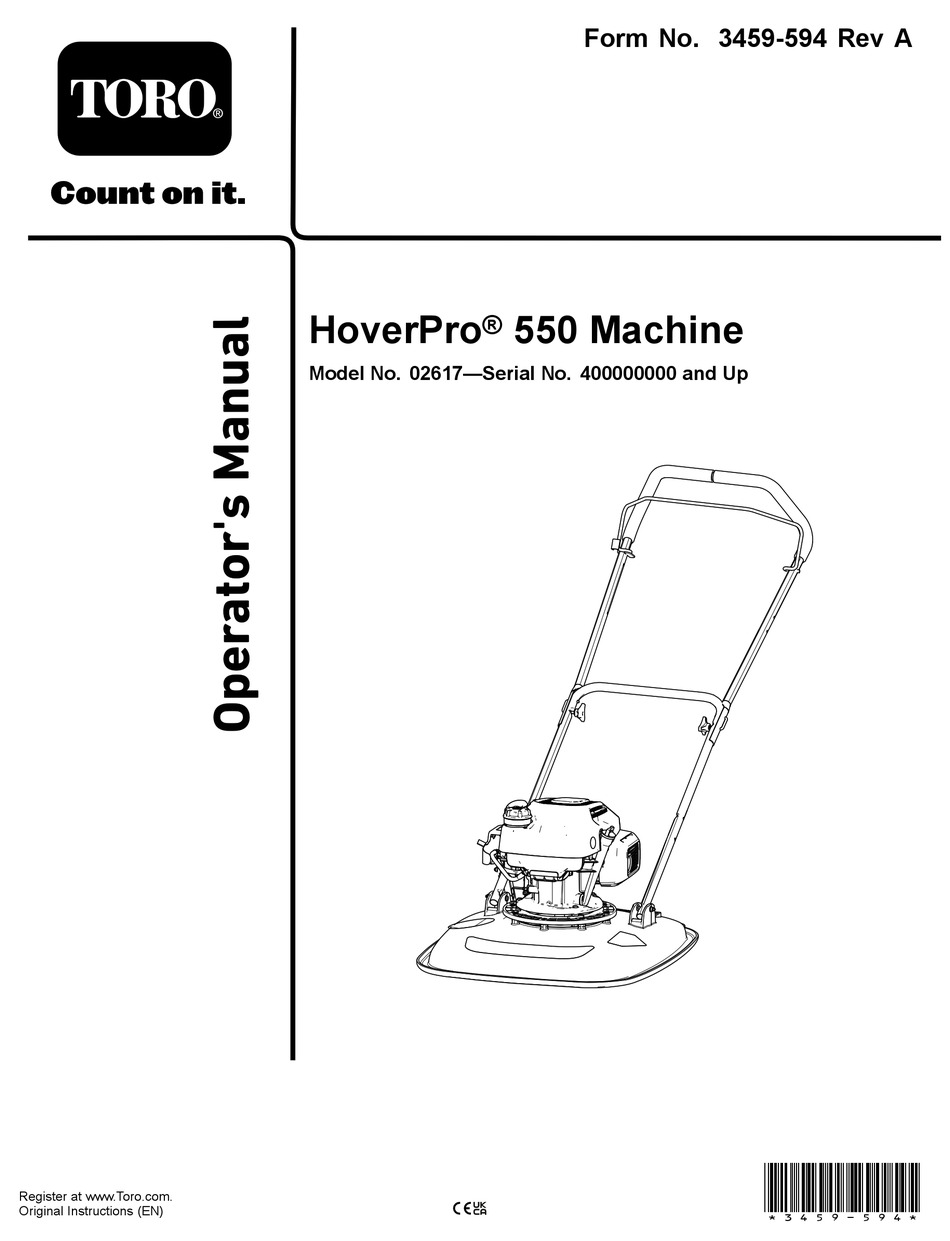

- Page 1 Form No. 3459-594 Rev A HoverPro ® 550 Machine Model No. 02617—Serial No. 400000000 and Up *3459-594* Register at www.Toro.com. Original Instructions (EN)
- Page 2 Whenever you need service, genuine Toro parts, or additional information, contact an Authorized Service Dealer or Toro Customer Service and have the model and serial numbers of your product ready. Figure 1 identifies the location of the model and serial numbers...
-
Page 3: Table Of Contents
Contents Safety Safety ............... 3 This machine has been designed in accordance with General Safety ........... 3 EN ISO 5395. Safety and Instructional Decals ......4 Setup ................ 5 General Safety 1 Installing the Handlebar Footstop..... 5 2 Installing the Handlebar ........5 Important: Read these instructions carefully 3 Adding Oil to the Engine........ -
Page 4: Safety And Instructional Decals
Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. decalh295159 H295159 1. Engine stop decal134-7020 134-7020 1. Before tipping the machine for service, disconnect the spark plug and read the Operator's Manual. -
Page 5: Setup
Setup Determine the handlebar height when the footstop is secured to the upstop bracket (Figure Align the hole in the footstop with the hole in the lower handlebar (Figure Installing the Handlebar Footstop Parts needed for this procedure: Lower handlebar Footstop Bolt (6 x 35 mm) Washer (6 mm) - Page 6 Installing the Handlebar Parts needed for this procedure: T-bushings Bolt (6 x 55 mm) Washer (6 mm) Locknut (6 mm) Knob U-bolt Handlebar fitting g364680 Upper handlebar Figure 6 Bolt (1/4 x 1-3/4 inches) 1. Up-stop bracket 2. Footstop Locknut (1/4 inch) Align the hole in the handlebar with the holes in the bushings (Figure...
- Page 7 Assembling the Upper and Lower and remove the bail from the machine (Figure 10). Handlebars Align the holes on the upper handlebar with the holes in the lower handlebar (Figure g364684 Figure 8 g367353 Figure 10 1. Lower handlebar 4. Upper handlebar 2.
-
Page 8: Adding Oil To The Engine
Adding Oil to the Engine No Parts Required Procedure g367358 Important: Your machine does not come with oil Figure 12 in the engine. Before starting the engine, add oil to the engine. Secure the handlebar fitting to the upper API Service Classification: SJ or higher handlebar (Figure 13) with the bolt (1/4 x 1-3/4... -
Page 9: Product Overview
Product Overview g364716 Figure 15 Insert the dipstick into the oil-filler neck, then remove the dipstick. Check the oil level on the dipstick (Figure 16). Note: If you overfill the engine with oil, drain the excess oil; refer to Draining the Engine Oil (page 20). -
Page 10: Controls
To ensure optimum performance and continued safety g364793 certification of the machine, use only genuine Toro Figure 19 replacement parts and accessories. Replacement 1. Operator-presence bail 2. Fuel-shutoff valve... -
Page 11: Before Operation
Operation – Store fuel in an approved container and keep it out of the reach of children. – Replace the cap on the fuel tank and all fuel Before Operation containers securely. • Fuel is harmful or fatal if swallowed. Long-term exposure to vapors can cause serious injury and Before Operation Safety illness. -
Page 12: Checking The Engine Oil Level
Do not engage in any activity that causes distractions; otherwise, injury or property • Use accessories and attachments approved by damage may occur. Toro only. • Do not operate the machine while ill, tired, or under the influence of alcohol or drugs. Slope Safety •... -
Page 13: Fuel Shutoff Valve
While holding the operator-presence bail, pull the recoil-starter grip. g364758 Figure 21 Note: If the machine does not start after several attempts, contact an Authorized Service Dealer 1. Open (fuel shutoff valve) 2. Closed (fuel shutoff valve) or authorized Toro distributor. -
Page 14: Shutting Off The Engine
3 seconds. If they do not stop properly, stop using your machine immediately and contact an Authorized WARNING Service Dealer or authorized Toro distributor. Adjusting the cutting height may bring you into contact with the moving blade, causing serious injury. - Page 15 Important: Use a block of wood to hold the blade steady Always assemble the conical (Figure 27). spacer directly below the impeller and the retainer under the head of the bolt. g364888 Figure 27 g364923 Figure 29 Use the wrench provided with the machine 1.
-
Page 16: Operating Tips
For best performance, ensure that the blade is sharp before the cutting season begins. After Operation Safety • Replace a damaged blade with a new Toro replacement blade. General Safety • Ensure that a sharpened blade is the same length as the intact cutting line. - Page 17 Cleaning the Machine Service Interval: After each use WARNING The machine may dislodge material from under the machine housing. • Wear eye protection. • Stay in the operating position (behind the handle). • Do not allow bystanders in the area. Tip the machine on its side, with the dipstick down.
-
Page 18: Maintenance
Do not change the engine governor setting or overspeed the engine. • To ensure optimum performance of the machine, use only genuine Toro replacement parts and accessories. Replacement parts and accessories made by other manufacturers could be dangerous, and such use could void the product warranty. -
Page 19: Replacing The Air Cleaner
Replacing the Air Cleaner Service Interval: Yearly Press down on the latch tabs at top of the air-filter cover (Figure 33). g017342 Figure 32 Close the fuel-shutoff valve; refer to Fuel Shutoff Valve (page 13). Important: If you are repairing the machine, empty the fuel tank. -
Page 20: Engine Oil Specification
Engine Oil Specification API Service Classification: SJ or higher Oil Viscosity: 10W-30 oil Checking the Engine-Oil Level Service Interval: Before each use or daily g364716 Figure 35 Prepare the machine for maintenance; refer to Preparing for Maintenance (page 18). Wipe the dipstick with a clean rag and repeat Remove the dipstick from the oil-filler neck and steps through... -
Page 21: Servicing The Spark Plug
machine is tipped in another direction, oil may fill the valve train—requiring at least 30 minutes to drain. Return the machine to the operating position. Clean spilled oil from the machine. Note: Dispose of the used oil properly at a local recycling center. -
Page 22: Blade Maintenance
Tip the machine upright. Replacing the Blade Service Interval: Yearly Important: You need a torque wrench to install the blade. If you do not have a torque wrench or are uncomfortable performing this procedure, contact an authorized Toro distributor or Authorized Service Dealer. - Page 23 Removing the Blade Prepare the machine for maintenance; refer to Preparing for Maintenance (page 18). Tip the machine onto its side with the oil-filler neck down. Important: Always tip the machine onto its side with the dipstick aligned down. If the machine is tipped in another direction, oil g364888 may fill the valve train—requiring at least 30...
-
Page 24: Storage
Storage Storage Safety • Shut off the engine, remove the key (if equipped), and wait for all movement to stop before you leave the operator’s position. Allow the machine to cool before adjusting, servicing, cleaning, or storing it. • Allow the engine to cool before storing the machine in any enclosure. -
Page 25: Troubleshooting
If the problem persists, contact an Authorized Service Dealer or authorized Toro distributor. The engine starts hard or loses power. 1. The hole in the fuel-cap vent is 1. Clean the hole in the fuel cap vent or plugged. - Page 26 Notes:...
- Page 27 The Toro Company (“Toro”) respects your privacy. When you purchase our products, we may collect certain personal information about you, either directly from you or through your local Toro company or dealer. Toro uses this information to fulfil contractual obligations - such as to register your warranty, process your warranty claim or to contact you in the event of a product recall - and for legitimate business purposes - such as to gauge customer satisfaction, improve our products or provide you with product information which may be of interest.
- Page 28 Countries Other than the United States or Canada Customers who have purchased Toro products exported from the United States or Canada should contact their Toro Distributor (Dealer) to obtain guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor's service or have difficulty obtaining guarantee information, contact your Authorized Toro Service Center.
