Summary of Contents for Sony VPL FH500L

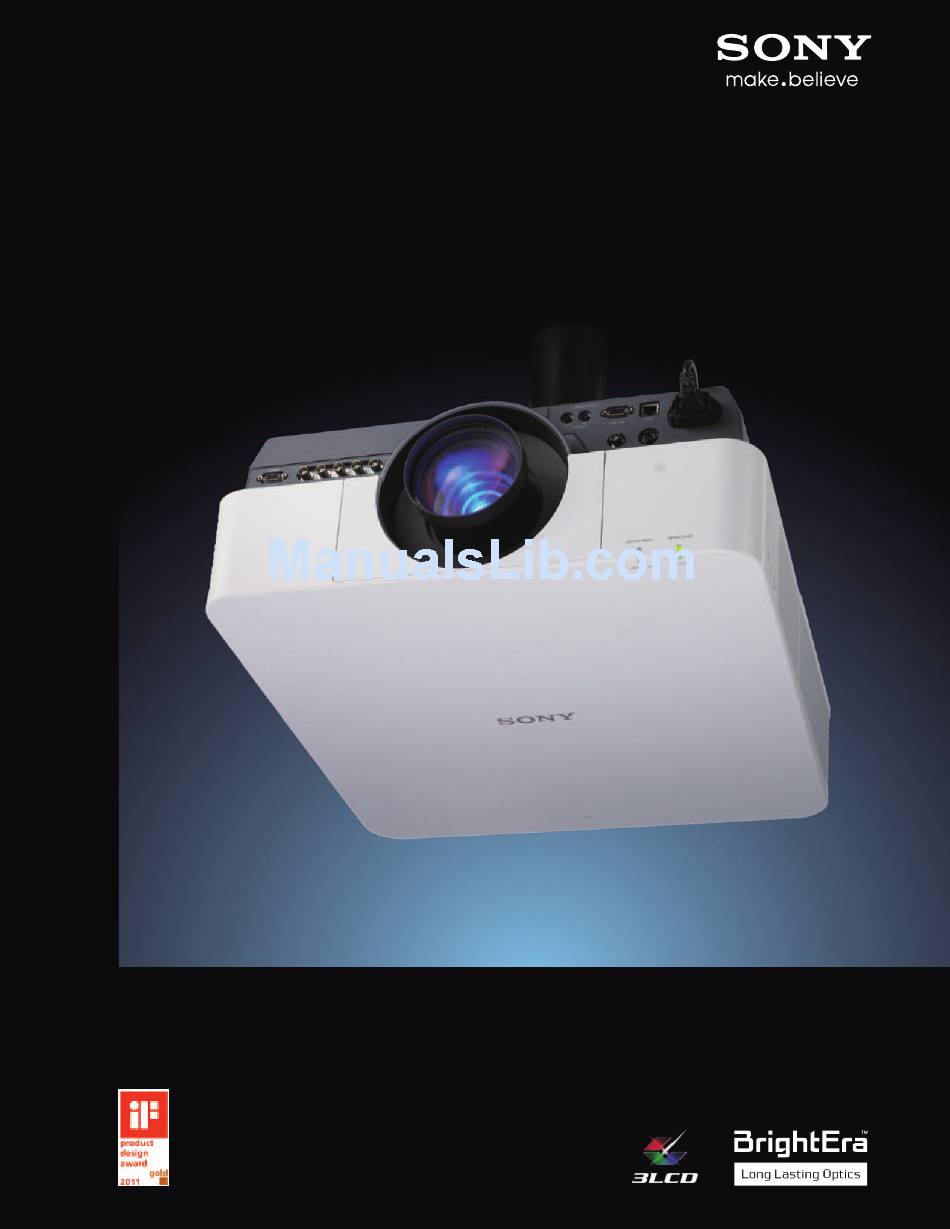

- Page 1 VPL-FH500L Versatile Installation Projector...
- Page 2 3LCD projection system, the VPL-FH500L offers a high brightness of 7,000 lumens. * BrightEra with Long Lasting Optics is the Sony brand name for a generation of optical system, which uses a more advanced version of Sony's original BrightEra technology. In addition to adopting LCD panels...
-
Page 3: Dual-Lamp System
Twin-lamp system: Even if one lamp fails, the presentation is able to continue without interruption. Variety of Optional Lenses Including Sony’s Legacy Lenses Various optional zoom lenses are available for the VPL-FH500L, and these can be used for many different applications. -
Page 4: Other Features
The unit is included with the replacement lamps. Lamp replacement Air filter replacement Benefits of the Quad Filter System Plus To keep all internal parts clean, the projector design unifies air intake through just one hole which is equipped with a high- reliability filter system. 8000 hours... -
Page 5: Optional Accessories
So, even when images are switched between different aspect signals, the projected image can always fit the screen. * Using the same aspect ratio between screen and projector is ideal. Multiple Inputs The VPL-FH500L is equipped with multiple connectivity inputs, including HDMI™... -
Page 6: Optional Lenses
OPTIONAL LENSES <Premium Series> Projection lens VPLL-Z4008 Throw ratio 1.08:1 2.02:1 to 2.67:1 Zoom / Focus — / Manual Powered / Powered Lens shift Vertical: Upward 41% to Vertical: Upward 109% to Downward 41% Downward 109% Horizontal: Right 19% to Left 19% Horizontal: Right 57% to Left 57% Aperture f/2.00... -
Page 7: Installation Diagram
PRESET SIGNAL CHART Computer Signal fH [kHz]/ Resolution fV [Hz] 31.5/70 640 x 350 37.9/85 31.5/70 640 x 400 37.9/85 31.5/60 35.0/67 640 x 480 37.9/73 37.5/75 43.3/85 35.2/56 37.9/60 800 x 600 48.1/72 46.9/75 53.7/85 832 x 624 49.7/75 48.4/60 56.5/70 1024 x 768... -
Page 8: Specifications
Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject to change without notice. Sony, the Sony logo, the Sony make.believe logo, BrightEra, the BrightEra with Long Lasting Optics logo, and Remote Commander are trademarks of Sony Corporation.
