StetSom DIGITAL LINE 2K5 ES-2 OHMS Installation

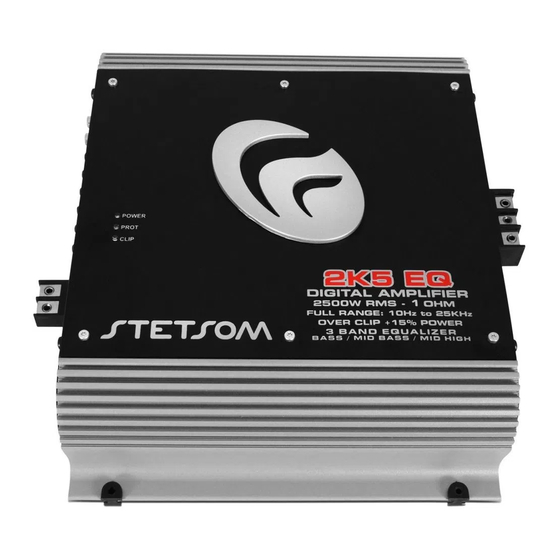

LEDS INDICATORS (TOP OF THE AMPLIFIER)
- BLUE LED (POWER) - RED LED (PROT) illuminates only when
lights when the power there is a problem in the functioning of
is on. the device.

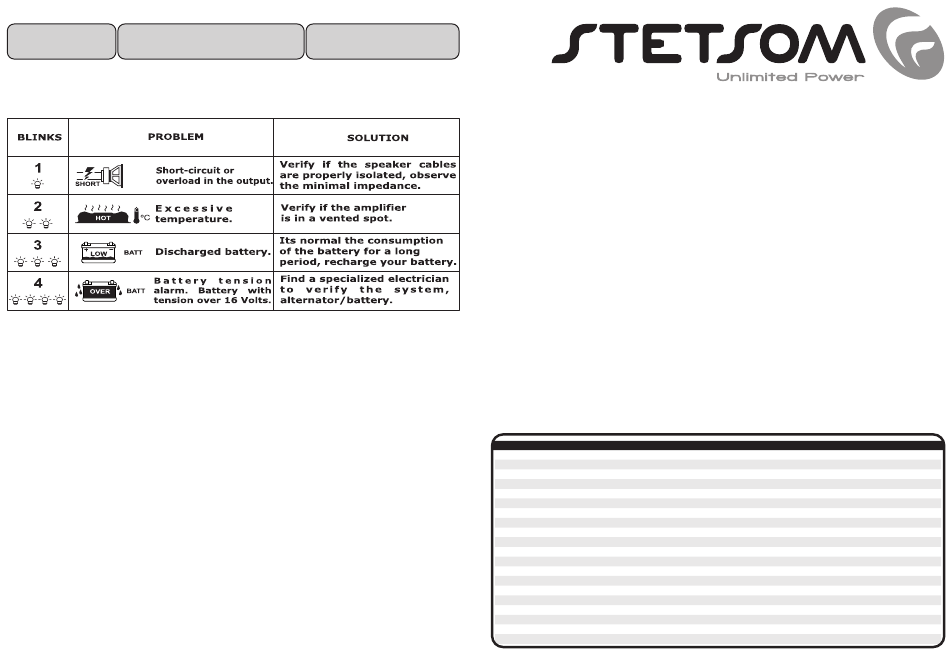

SYSTEM TROUBLESHOOTING
If some problem occurs, the amplifier will shut down and the RED LED will flash alternately with the BLUE LED. As
the problem occurred, the BLUE LED will blink a certain number of times. So we have a diagnosis according to the
table below:
Note: If only the RED LED blinks (BLUE LED OFF), turn on the device with the volume of CD/MP3-player down. If
the problem persists, please contact us.
WHAT TO DO IN CASE OF PROBLEMS
NOT TURN ON:
- The cables are not properly connected (terminals +BATT, GND and REM). Make sure that all
connections are mechanical and electrical contact.
- Fuses / breakers (external) are defective or burned. Pay attention to the correct value of the new fuse!
NO SOUND:
- The cables of the speakers or RCA plugs are not connected correctly.
- Check that the LEVEL control is not in the minimum.
NO SOUND/PROTECTION RED LED FLASHING:
- See diagnosis UP (SYSTEM TROUBLESHOOTING).
- The speakers or cables defectives thus check the speakers, cables and connections.
POOR SOUND QUALITY (DISTORTION):
- The speakers are overloaded, therefore decrease the level and redo the gain setting (See item 2 /
OVERVIEW).
WEAK BASS:
- Cables speakers (+) and (-) are reversed, speaker out of phase (see Section 7 / overview).
MOTOR NOISE, HORN, SIGNAL LIGHT, ETC:
- Use suppressive cables in ignition candles.
- Use capacitors in the alternator, horn and ignition.
- Pass the RCA cable away from any other cable, because it is more sensitive to interference.
- Connect to power (+12 V) to separate the sound system. Use a fuse to 30 cm from the battery for
protection.
- Make a good grounding of the amplifier. To do this removes the paint from the chassis of the vehicle at
the desired point. Screw the cable using a ground terminal. To protect from oxidation, insulate with
paint.
- Do not loop the ground wire. Avoid using several ground wires. Prefer a star connection, with all the
ground wires aside from a single point.
www.stetsom.com - export@stetsom.com
- RED LED (CLIP) flashes when
the amplifier output begin to
distort the sound.
USER'S GUIDE
DIGITAL LINE DIGITAL LINE
SPECIFICATIONS
MODEL:
Channel:
Power @ 13.8V Mono 1 Ohm:
Power @ 13.8V Mono 2 Ohms:
Power @ 13.8V Mono 4 Ohms:
Power @ 12.6V Mono 1 Ohm:
Power @ 12.6V Mono 2 Ohms:
Power @ 12.6V Mono 4 Ohms:
Minimum Output Impedance:
Input Impedance:
Minimum Input Sensitivity:
Total Harmonic Distortion:
Signal to Noise:
Freq. Resp. (-3dB) @ 8 Ohms:
Crossover Low Pass:
Crossover High Pass:
Power:
Consumption Music Signal (12,6V):
Consumption BASS Signal (12,6V):
Dimen tions mm (A x L x C):
Wegth Kg:
2K5 ES
2K5 ES – 2 OHMS 2K5 ES – 1 OHM
1 1
- 3.140 Watts RMS
3.100 Watts RMS 2.050 Watts RMS
2.000 Watts RMS -
- 2.670 Watts RMS
2.630 Watts RMS 1.700 Watts RMS
1.620 Watts RMS -
2 OHMS 1 OHM
20K OHMS 20K OHMS
0,2V 0,2V
< 0,9 % THD < 0,9 % THD
> 90 dB > 90 dB
10 Hz to 10 KHz 10 Hz to 10 KHz
50 Hz to 10 KHz 50 Hz to 10 KHz
10 Hz to 700 Hz 10 Hz to 700 Hz
9,5 to 15 V 9,5 to 15 V
2,3 to 125 A 2,8 to 140 A
2,3 to 250 A 2,8 to 280 A
75 x 310 x 310 75 x 310 x 310
3,9 3,9
Jun/10 / Rev 1A
