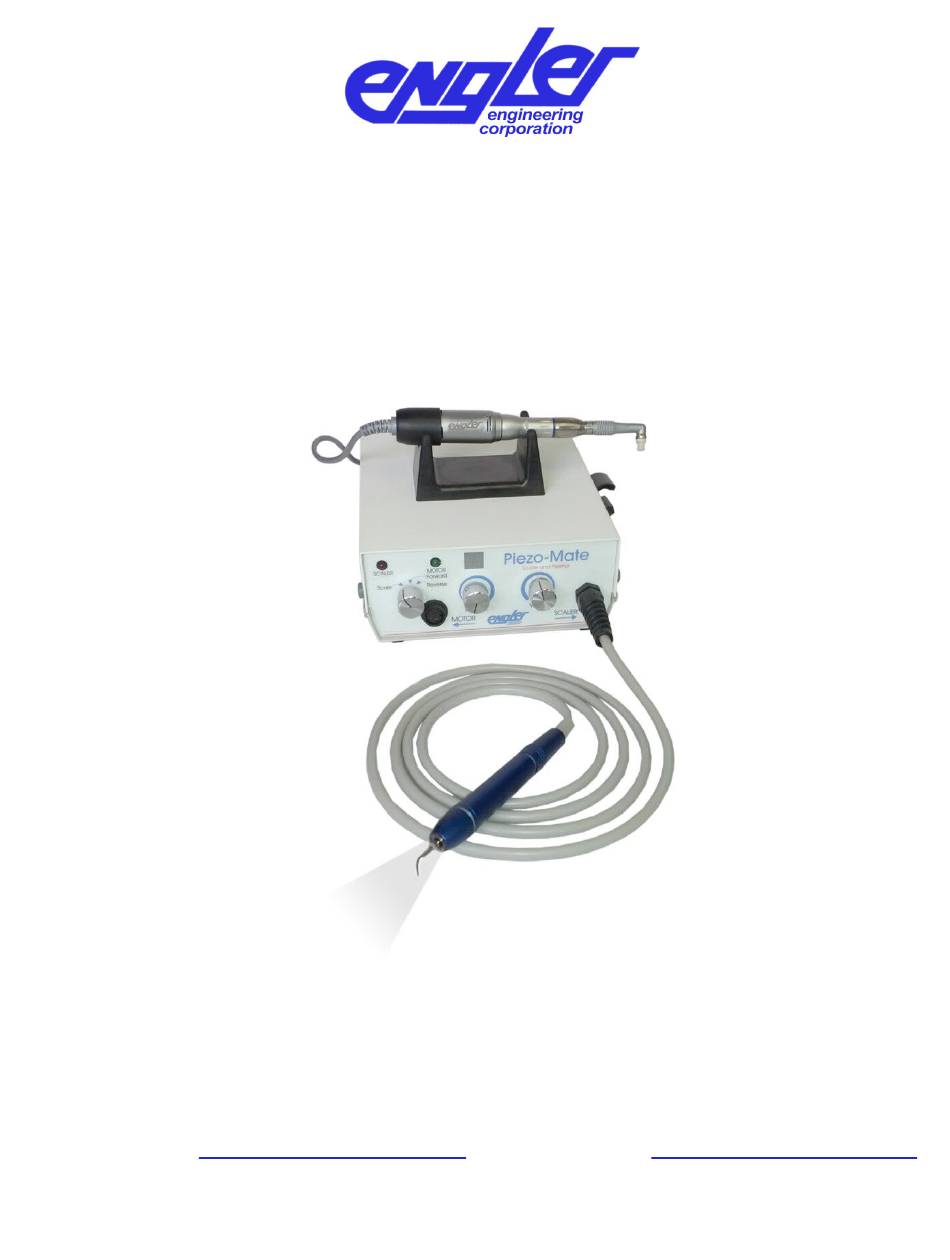

Veterinary Ultrasonic Dental Scaler / Polisher

1099 East 47th Street, Hialeah, Florida 33013

800-445-8581 – 305-688-8581 – FAX 305-685-7671

Web site:

www.englerusa.com

Piezo-Mate

Instruction Manual

Engler Engineering Corporation

Page 1 of 35

Support site:

www.engler411.com

REV. B 11 / 22 / 2019

Table of Contents

Troubleshooting

Need help?

Do you have a question about the Piezo-Mate and is the answer not in the manual?

Questions and answers

Summary of Contents for Engler Piezo-Mate

Page 1 Veterinary Ultrasonic Dental Scaler / Polisher Veterinary Ultrasonic Dental Scaler / Polisher Instruction Manual Instruction Manual Engler Engineering Corporation Engler Engineering Corporation 1099 East 47th Street, Hialeah, Florida 33013 1099 East 47th Street, Hialeah, Florida 33013 800-445-8581 – 305-688-8581 – FAX 305-685-7671 800-445-8581 –...
Page 2: Table Of Contents
PROPHY ANGLE CLEANING AND MAINTENANCE INSTRUCTIONS...........25 WATER FILTER CLEANING INSTRUCTIONS.................26 SADDLE VALVE ASSEMBLY ......................27 Installation Instructions........................27 To mount the female quick disconnect, there are two options............29 WATER TANK INSTRUCTIONS.......................30 WATER TANK CARE & MAINTENANCE..................31 OPTIONAL Piezo-Mate ACCESSORIES...................33 TECHNICAL DATA..........................35 DIMENSIONS.............................36 Page 2 of 35...
Page 3: Read Before You Start
This is due to the friction between the skin and the vibrating tip. This is normal for all ultrasonic scalers. Never let the scaling tip touch soft tissue / skin. Engler Engineering Corporation is not responsible for any damage caused by improper use of this device or its accessories.
Page 4: Company Profile
We also acquired the Alpha-Sonic, Ora-Sonic, and Pro- Sonic line of piezo scalers. Engler manufactures all of the inserts and tips used in the Engler products as well as many others on the market today in the 18K and 25K frequency range.
Page 5 Engler Engineering Corporation’s brand name veterinary products proudly include: ADS 2000, microprocessor controlled anesthesia delivery system / ventilator, • Excelsior, high speed dental air unit with vacuum / electrosurgery / ultrasonic scaler / high • speed drill / low speed polisher / air - water syringe, and on demand compressor, Scale - Aire, high speed dental air unit with ultrasonic scaler / high speed drill / low speed •...
Page 6: Introduction
0.001 to 0.004 in. (25.4 um to 102 um). In designing our unique Engler tips, water flows internally through the tip as it vibrates. As the bubbles in the lavage are bactericidal, the energy released collapses and destroys the bacterial cell walls. The water flowing internally through the tip, effectively cools the area and assists in removing any debris from the operative site.
Page 7 Prophy angle Micromotor Straight handpiece Clean and lubricate Do not lubricate Lubricate daily daily Display Ultrasonic Selector indicators handpiece holder Micromotor stand Selector switch Scaler permanent connection (not a quick disconnect, do not Micromotor quick disconnect twist) Multi turn water control, Power control counterclockwise to open, clockwise to close.
Page 8: Installation Instructions
It is recommended that you disconnect the device from the water supply when it is not in operation. Engler Engineering Corporation will assume no liability for damages due to not following recommendations in the Engler manuals. Connecting water supply continued on next page...
Page 9 (if equipped) yellow indicator begins to show. Lock the handle in place. IMPORTANT: Engler Engineering recommends the services of a professional plumber. Engler will not be held liable for any damage including, but not limited to leakage caused by improper installation of our products.
Page 10 The water filter supplied with this device should be opened and inspected on a regular basis. Engler suggests that the filter disc and O-ring be changed out at least twice per year. See WATER FILTER CLEANING INSTRUCTIONS.
Page 11: Scaler Operating Instructions
SCALER OPERATING INSTRUCTIONS Initial procedures at the start of every day: 1. The power switch is located on the left side of the unit. Switch it ON. 2. Make sure the water is open (counter-clockwise) and flowing to the device. Rotate the Selector Switch to the “SCALER”...
Page 12 Engler Engineering Corporation will not be liable for damage due to improper use of this device. Do not use this device if the water temperature is too hot.
Page 13: Scaler Maintenance
SCALER MAINTENANCE FINAL PROCEDURES AT THE END OF EACH DAY: 1. Make sure the unit is turned off. 2. Detach the tip and ultrasonic handpiece and sterilize. 3. Disconnect the unit from its water source or turn off the water supply. 4.
Page 14: Polisher Installation
POLISHER INSTALLATION 1. Connect the micromotor into the front of the control box. This is done by inserting the male connector at the end of the micromotor cable into the female receptacle on the front panel of the unit and rotating the lock collar clockwise.
Page 15: Polisher Operation
6. Do not rotate the selector switch on the front of the control box between forward and reverse rapidly. always allow a moment between the two selections. 7. As this is a precision instrument, always return it to Engler Engineering Corporation for maintenance and repair.
Page 16: Polisher Maintenance: Prophy Angle
POLISHER MAINTENANCE: PROPHY ANGLE The Prophy Angle is a precision engineered dental device. All of the gears and shaft assemblies are made of high-grade stainless steel, which when kept clean and properly lubricated, will provide trouble free service. Daily Cleaning and Lubrication: 1.
Page 17: Straight Handpiece Maintenance
STRAIGHT HANDPIECE MAINTENANCE LUBRICATION: 1. The spray nozzle oiling method is optional but highly recommended because it cleans as well as lubricates. It forces lubricant into the smallest spaces and forces dirt out. The alternate method is to place 1 drop of approved oil in the chuck hole. Do not lubricate the handpiece while it is on the micromotor.
Page 18: Cleaning And Sterilization Of Handpiece
2. Never clean the handpiece with boiling water, chemical solutions, ultrasonic cleaner, or with wire brushes. STERILIZATION: 1. Autoclaving is recommended for the Engler straight handpiece. 2. Clean the handpiece as described above. 3. Lubricate the handpiece as described above .
Page 19: Micromotor Maintenance
MICROMOTOR MAINTENANCE The E-Type Micromotor is capable of speeds up to 35,000 RPM, for use in cutting, sectioning and drilling. It contains sealed bearings and does not require any lubrication. The Micromotor has cooling vents at the back of the unit, Do not allow water, oil, or any other substance to enter these vents. Failure to keep debris out of the Micromotor will shorten the life of the unit and cause permanent damage.
Page 20: Scaler Troubleshooting
3. Power outlet not active: try another outlet. 4. The power cord is not connected to the device. 5. Contact Engler Engineering Corporation. “ON” LED INDICATOR LIGHTS UP, NO WATER FLOW: 1. Verify that the selector switch is in scaling mode.
Page 21 3. Check and / or replace O ring and disc in the inline filter. 4. Water restriction in unit: contact Engler Engineering Corporation repair department. 5. If using a Portable Water Bottle, check water level then pump to pressurize the bottle.
Page 22: Polisher Troubleshooting
1. Switch unit to polisher mode. 2. Micromotor not plugged in: plug micromotor in. 3. Electrical short in micromotor or its cord: Contact Engler Engineering Corporation for instructions. STRAIGHT HANDPIECE GETS HOT: 1. Straight handpiece not lubricated properly: Lubricate as shown on page 17.
Page 23 MISCELLANEOUS: 1. Micromotor speed not adjustable (runs at one speed): Return the complete Piezo-Mate with micromotor to Engler Engineering Corporation. 2. If the prophy cup unscrews, (“flies off”) the prophy angle: Micromotor is rotating in the wrong direction, Let the micromoter come to a full stop, then change direction by rotating the selector on the front of the unit to the opposite direction.
Page 24: Prophy Angle Cleaning And Maintenance Instructions
Angle. Oil is available from Engler it is part number P-01. 8.) Lubricate by placing one drop of oil on each gear 8.) Being careful not to cross-thread, reassemble the...
Page 25: Water Filter Cleaning Instructions
WATER FILTER CLEANING INSTRUCTIONS SHOULD BE PERFORMED AT LEAST QUARTERLY 1. Turn off water supply to unit or disconnect the male from the female water connector 2. Unscrew filter by firmly holding Point “A” in your left hand and Point “B” in your right hand. (Refer to Figure) Next, unscrew by rotating your left hand clockwise and rotating your right hand counterclockwise.
Page 26: Saddle Valve Assembly
SADDLE VALVE ASSEMBLY Installation Instructions To connect the saddle valve to an existing water source, attach the saddle valve to your existing 3/8" to 1- 3/8" copper tubing. Tighten the securing screws evenly. DO NOT OVERTIGHTEN, THIS MAY CAUSE THE COPPER TUBING TO CRIMP AND REDUCE FLOW. See diagram below Page 26 of 35...
Page 27 Page 27 of 35...
Page 28: To Mount The Female Quick Disconnect, There Are Two Options
It is very important that you mount the saddle valve beyond a shut off valve. Engler Engineering Corporation will not be held liable for any damage including, but not limited to leakage caused by improper installation of our products. It is suggested that a professional plumber make any necessary installations or connections.
Page 29: Water Tank Instructions
WATER TANK INSTRUCTIONS PT-1 Water Tank DIRECTIONS: 1. Remove pump and cap assembly. 2. Fill tank with distilled water or medicated solution up to the “FILL LINE” mark ( approx. 2/3). 3. Replace pump and cap assembly and tighten securely. 4.
Page 30: Water Tank Care & Maintenance
4. Black particles found in water bottle indicates that the pump assembly is deteriorating. Order new pump assembly from Engler Engineering. Pump assembly has been pre-lubricated.
Page 31 TO PREVENT SLIME FROM FORMING INSIDE THE TANK Allowing slime mold to form inside the tank is a generally hazardous and unhealthy condition. Slime in the water tank will make it's way into the dental unit possibly causing permanent damage by clogging the small tubing inside.
Page 32: Optional Piezo-Mate Accessories
2. DO NOT SUBMERGE IN LIQUIDS, INCLUDING ULTRASONIC SOLUTIONS. 3. Do not heat over 275 ºF (135 ºC). 4. Use only Engler Care Free Prophy Rubber Cups. Other brands will not properly seal the angle, causing premature wear and voiding the warranty.
Page 33 Optional Oiling Accessory Spray lubricant with E-type nozzle for all Engler polisher straight handpieces NET WT. 8.8OZ (249.48 GRAMS) Optional handpiece available without LED lighting. Contact Engler Engineering for pricing. Page 33 of 35...
Page 34: Technical Data
TECHNICAL DATA SCALER: Input Voltage: 100-250VAC Universal (switching) power supply Input Frequency: 50/60 Hz. Current (Amperes) 2.3 Amps Transducer Style: Piezo Operating frequency: 27,500 -31,000 Hz Ultrasonic Generator Data: Auto-Tuned, Variable Power Control WATER: Input Pressure: 30 PSI (min.) 60 PSI (max) POLISHER: Power Control: Variable Power Control...
Page 35: Dimensions
DIMENSIONS NET WEIGHT: 3 Lbs. (1.36 Kg.) CHASSIS DIMMESION: Length: 9 in. (23 cm) Width: 8 in. (20 cm) Height: 3.3 in. (8.4 cm) CABLE LENGTH: Handpiece: 96 in. (244 cm) Foot switch: 96 in. (244 cm) Power Cord: 72 in. (183 cm) Water Line: 96 in.
