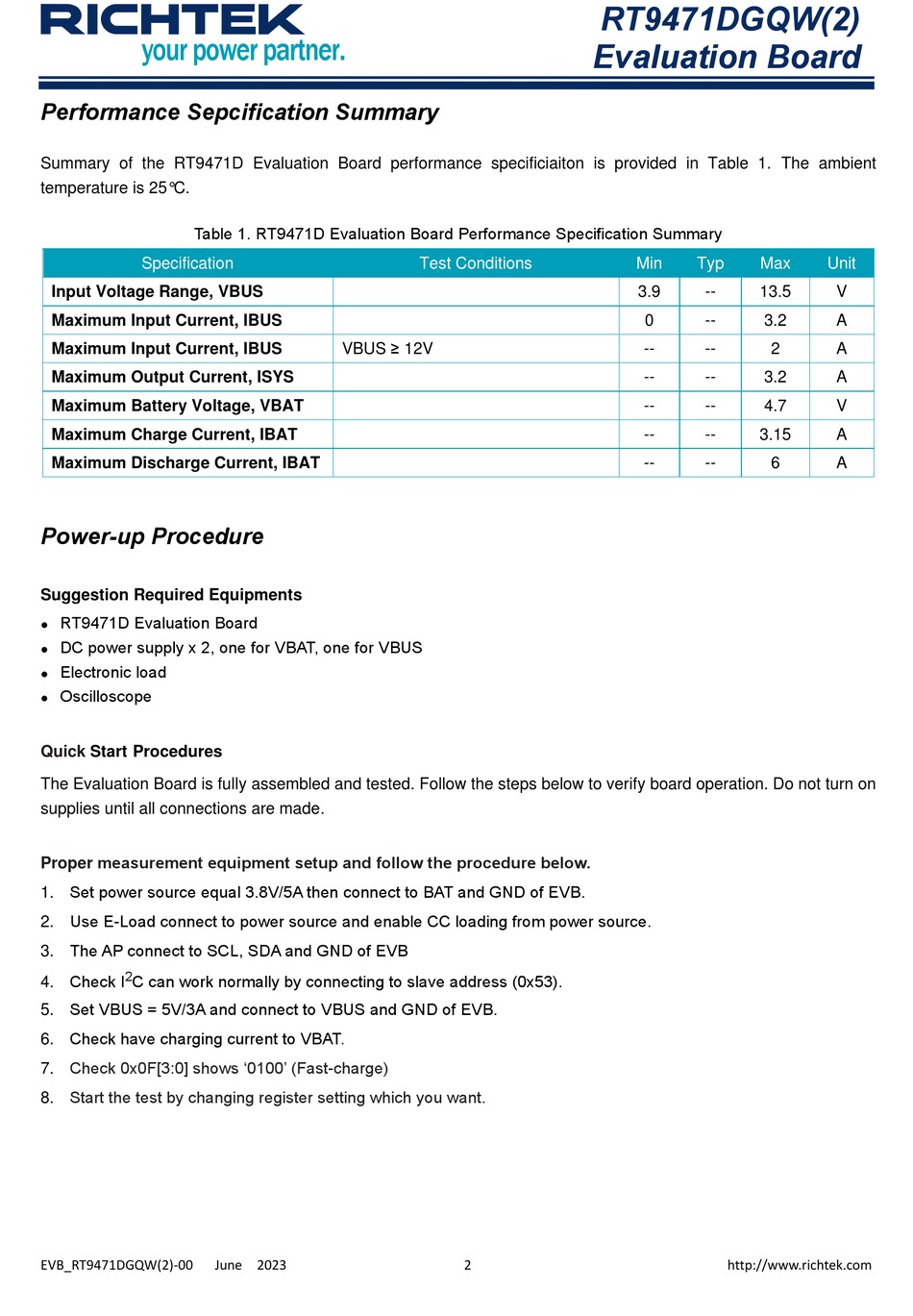

Performance Sepcification Summary

Summary of the RT9471D Evaluation Board performance specificiaiton is provided in Table 1. The ambient
temperature is 25°C.
Table 1. RT9471D Evaluation Board Performance Specification Summary
Specification
Input Voltage Range, VBUS
Maximum Input Current, IBUS
Maximum Input Current, IBUS
Maximum Output Current, ISYS
Maximum Battery Voltage, VBAT
Maximum Charge Current, IBAT
Maximum Discharge Current, IBAT

Power-up Procedure

Suggestion Required Equipments
RT9471D Evaluation Board
⚫
DC power supply x 2, one for VBAT, one for VBUS
⚫
Electronic load
⚫
Oscilloscope
⚫
Quick Start Procedures
The Evaluation Board is fully assembled and tested. Follow the steps below to verify board operation. Do not turn on
supplies until all connections are made.
Proper measurement equipment setup and follow the procedure below.
1. Set power source equal 3.8V/5A then connect to BAT and GND of EVB.
2. Use E-Load connect to power source and enable CC loading from power source.
3. The AP connect to SCL, SDA and GND of EVB
2
4. Check I C can work normally by connecting to slave address (0x53).
5. Set VBUS = 5V/3A and connect to VBUS and GND of EVB.
6. Check have charging current to
Check 0x0F[3:0] shows '0100' (Fast-charge)
7.
Start the test by changing register setting which you want.
8.
EVB_RT9471DGQW(2)-00
VBUS ≥ 12V
VBAT.
June 2023
Test Conditions
2
RT9471DGQW(2)
Evaluation Board
Min Typ Max
3.9 -- 13.5
0 -- 3.2
-- --
-- -- 3.2
-- -- 4.7
-- -- 3.15
-- --
http://www.richtek.com
Unit
V
A
2 A
A
V
A
6 A
