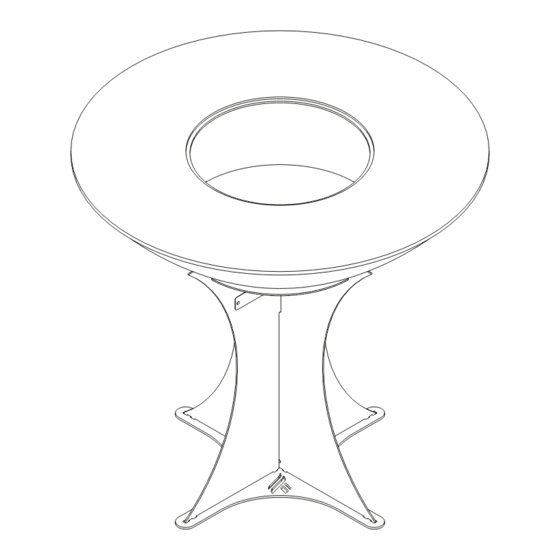

EURO 40" GRILL - TALL BASE
ASSEMBLY INSTRUCTIONS

Advertisement

loading
Need help?

Need help?

Do you have a question about the Classic 40 Euro Tall Base and is the answer not in the manual?

Questions and answers

Related Manuals for Arteflame Classic 40 Euro Tall Base

Summary of Contents for Arteflame Classic 40 Euro Tall Base

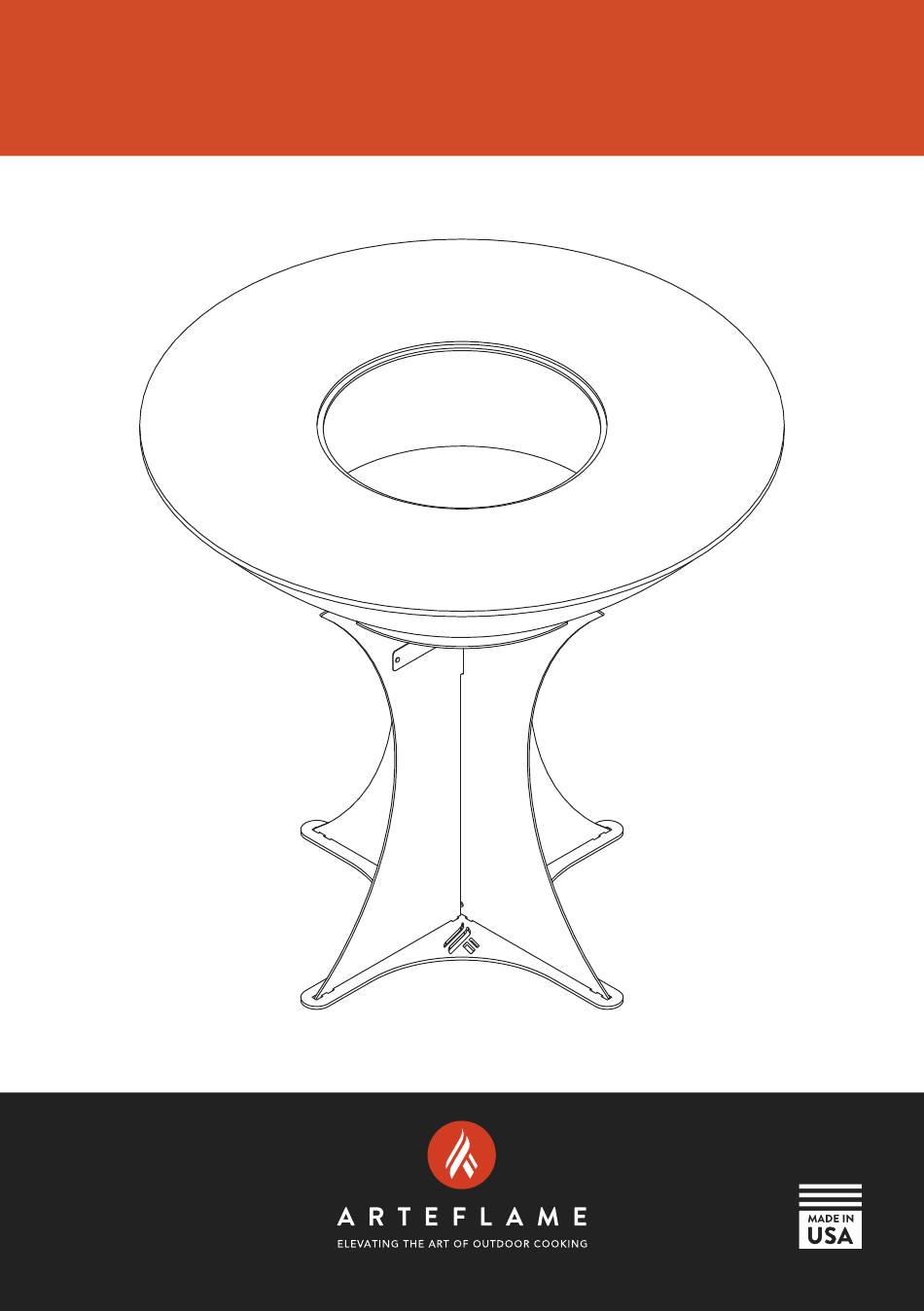

  • Page 1 EURO 40” GRILL - TALL BASE ASSEMBLY INSTRUCTIONS...
  • Page 2 EURO 40” GRILL - TALL BASE Thank you for your purchase! You are minutes away from firing up your Arteflame and beginning to experience outdoor entertainment, Arteflame style. Assembly is simple and requires two people. When you first unpack your grill, carefully unpack all the components and move them to where you want to assemble your grill.
  • Page 3 The Euro Base is made up of five pieces pictured below from left to right: Two Corten steel legs ■ One with Arteflame badge, notch facing down ■ One without badge, notch facing up ■ One Corten steel locking ring ■...
  • Page 4 EURO 40” GRILL - TALL BASE Step Place the stainless steel footer where you would like your Arteflame to be. Make sure this footer is as level as possible. Step Place the first leg without the Arteflame badge, notch facing...
  • Page 5 EURO 40” GRILL - TALL BASE Step Have the other person place the second leg with the Arteflame badge, notch facing down, over the first leg and slide it straight down so that the two notches slide into each other.
  • Page 6 EURO 40” GRILL - TALL BASE Step Place the Corten steel cross key on top of the interlocking legs, ensuring it sits flat and flush with the top of the legs and can be pushed into place. Now that your Euro Base is assembled you are ready to place the heavy duty fire bowl and cooktop on top of the base.

  • Page 7: Cooktop Assembly

    EURO 40” GRILL - TALL BASE Cooktop assembly The Arteflame Classic 40 Bowl is made up of three pieces: The laser cut carbon steel cooktop ■ approximately 150 pounds (68 kg) The Corten steel firebase ■ The spun Arteflame Corten steel bowl ■...
  • Page 8 EURO 40” GRILL - TALL BASE Step With two people, lift the Arteflame fire bowl by the inside ring so the patina doesn’t get disturbed. Carefully walk the fire bowl to the grilling location where the base is waiting. Carefully place it on top of the base as level as possible.
  • Page 9 EURO 40” GRILL - TALL BASE Step Insert the cooktop lifter into the center hole of the cooktop and slide a 6-8 foot long piece of 2x4 lumber through the top as shown. With two people, lift the cooktop and set it down near where you are going to be setting up your grill.
  • Page 10 EURO 40” GRILL - TALL BASE Your fully assembled Arteflame grill is now complete! Make sure your Arteflame is as level as possible so all excess grease will always flow into the middle and into the fire. You are now ready to build your fire and start the seasoning process of the cooktop.
  • Page 11 EURO 40” GRILL - TALL BASE If you ordered your Arteflame with a grill grate, there will be a grate lifting tool included. The lifting tool slides in between the center slots of the grill grate. Don’t lift the grate with food on it as it could become unbalanced.

  • Page 12: Grilling Tips

    Depot. Using these methods, you should have a fire hot enough to cook on within 30 minutes. The best wood to use for cooking on your Arteflame are seasoned or dried hardwoods like oak, mesquite, cherry, apple, hickory, maple, ash, pear, or plum. Seasoned wood burns better and smokes less.
  • Page 13 Any rust that does form can easily be removed using steel wool and re-oiling the cooktop. The more your Arteflame is used, the better the cooktop will be protected by the oil that you use on it. This oil will actually impregnate the cooktop and help prevent rust.

  • Page 14: Maintenance

    Perhaps a slow stream of water in a controlled dousing will work if you need to quickly put out the fire. The Arteflame will be very hot while the fire is burning itself out and can remain hot for hours. An optional stainless steel lid is available from our store as well.
  • Page 15 With use, cooking oils will be absorbed into the cooktop and help prevent rust from forming. The best way to avoid rust on the cooktop is using your Arteflame regularly. Welcome to the Arteflame Family!
