Summary of Contents for Arteflame EURO 30

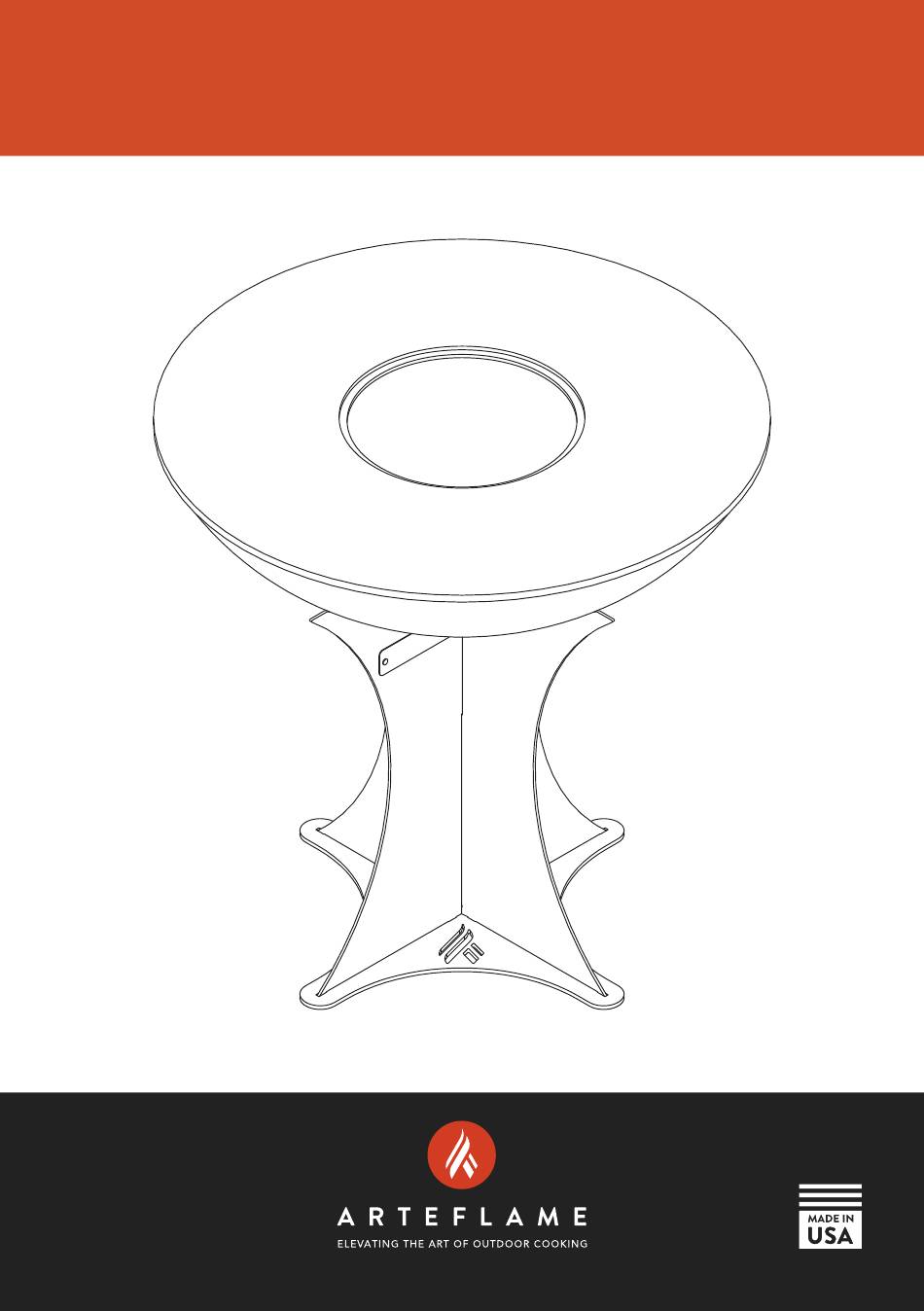

- Page 1 EURO 30” GRILL ASSEMBLY INSTRUCTIONS...
- Page 2 EURO 30” GRILL Thank you for your purchase! You are minutes away from firing up your Arteflame and beginning to experience outdoor entertainment, Arteflame style. Assembly is simple and requires two people. When you first unpack your grill, carefully unpack all the components and move them to where you want to assemble your grill.
- Page 3 The Euro Base is made up of four pieces pictured below from left to right: Two Corten steel legs ■ One with Arteflame badge, notch facing down ■ One without badge, notch facing up ■ One Corten steel cross key ■...
- Page 4 EURO 30” GRILL Step Place the stainless steel footer where you would like your Arteflame to be. Make sure this footer is as level as possible. Step Place the first leg without the Arteflame badge, notch facing up, onto the footer so that the tabs on the legs fit into the slots of the footer.
- Page 5 EURO 30” GRILL Step Have the other person place the second leg with the Arteflame badge, notch facing down, over the first leg and slide it straight down so that the two notches slide into each other. Step Make sure the intersection of the two legs is flush and flat where they cross at the top.
- Page 6 EURO 30” GRILL Step Place the Corten steel cross key on top of the interlocking legs, ensuring it sits flat and flush with the top of the legs and can be pushed into place. Now that your Euro Base is...
-
Page 7: Cooktop Assembly
EURO 30” GRILL Cooktop assembly The Arteflame Classic 30 Bowl is made up of three pieces: The laser cut carbon steel cooktop ■ approximately 67 pounds (30 kg) The Corten steel firebase ■ The spun Arteflame Corten steel bowl ■... - Page 8 EURO 30” GRILL Step With two people, lift the Arteflame fire bowl by the inside ring so the patina doesn’t get disturbed. Carefully walk the fire bowl to the grilling location where the base is waiting. Carefully place it on top of the base as level as possible.
- Page 9 EURO 30” GRILL Step Insert the cooktop lifter into the center hole of the cooktop and slide a 6-8 foot long piece of 2x4 lumber through the top as shown. With two people, lift the cooktop and set it down near where you are going to be setting up your grill.
- Page 10 EURO 30” GRILL Your fully assembled Arteflame grill is now complete! Make sure your Arteflame is as level as possible so all excess grease will always flow into the middle and into the fire. You are now ready to build your fire and start the seasoning process of the cooktop.
- Page 11 EURO 30” GRILL If you ordered your Arteflame with a grill grate, there will be a grate lifting tool included. The lifting tool slides in between the center slots of the grill grate. Don’t lift the grate with food on it as it could become unbalanced.
-
Page 12: Grilling Tips
Depot. Using these methods, you should have a fire hot enough to cook on within 30 minutes. The best wood to use for cooking on your Arteflame are seasoned or dried hardwoods like oak, mesquite, cherry, apple, hickory, maple, ash, pear, or plum. Seasoned wood burns better and smokes less. - Page 13 Any rust that does form can easily be removed using steel wool and re-oiling the cooktop. The more your Arteflame is used, the better the cooktop will be protected by the oil that you use on it. This oil will actually impregnate the cooktop and help prevent rust.
-
Page 14: Maintenance
Perhaps a slow stream of water in a controlled dousing will work if you need to quickly put out the fire. The Arteflame will be very hot while the fire is burning itself out and can remain hot for hours. An optional stainless steel lid is available from our store as well. - Page 15 With use, cooking oils will be absorbed into the cooktop and help prevent rust from forming. The best way to avoid rust on the cooktop is using your Arteflame regularly. Welcome to the Arteflame Family!
- Page 16 For any questions, please contact us: info@arteflame.com +1 (929) 251 4111 arteflame.com/products/arteflame-euro-30...
