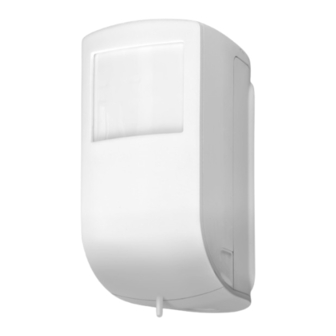

Essence Smartcare Care@Home MDsense Getting Started

Essence Smartcare Care@Home MDsense Getting Started

Multi-dimensional fall sensor
Hide thumbs Also See for Care@Home MDsense:

Advertisement

Quick Links

smartcare
Care@Home
MDsense
Getting Started
Multi-dimensional fall sensor

Advertisement

loading
Need help?

Need help?

Do you have a question about the Care@Home MDsense and is the answer not in the manual?

Questions and answers

Summary of Contents for Essence Smartcare Care@Home MDsense

  • Page 1 smartcare Care@Home ™ MDsense Getting Started Multi-dimensional fall sensor...
  • Page 2 Where to Install The effective detection distance for MDsense is up to 4 x 4 m (13 x 13 ft.) In the corner with a distance of exactly 210 cm (82½ inches) between the bottom of the MDsense and the floor...
  • Page 3 Avoid Obscured Moving objects Anywhere within an 80cm (2.6 ft.) radius of the mounting location In front of a Near heater or air mirror conditioner...
  • Page 4 Installing the MDsense Remove the lens covering Remove the battery compartment Press here...
  • Page 5 Insert the batteries Press the PAIRING button on the Care@Home™ control panel for three seconds Control Panel PAIRING Button...
  • Page 6 Replace the battery compartment. The control panel responds with a voice message An installation mode lasting 20 minutes is initiated Range Test Press the PAIRING button on the Care@Home™ control panel twice. The three indication LEDs blink, the control panel responds with a voice message, and the control panel activity LED blinks blue once Control Panel...
  • Page 7 Standing at the installation location, pull out the socket cover. The LED blinks red once. The control panel responds with a voice message and the control panel activity LED blinks blue once. Replace the socket cover or insert the pull cord or power cord Press the RESET button on the Care@ Home™...
  • Page 8 Mounting the MDsense Peel off the short protective strip Peel off Place the MDsense in a corner and press it against the wall for three seconds until the glue sticks...
  • Page 9 Testing the MDsense During this test the technician must be alone in the room Walk in front of the MDsense. The LED flashes quickly Lie on the floor. The red LED will turn off for up to 10 seconds. After 10 seconds, the red LED turns on again and remains solid for approximately 20 seconds.
  • Page 10 To prevent the control panel calling the service center, press the RESET button. The control panel emits a short beep and the control panel emergency LED stops blinking Control Panel RESET Button The MDsense requires a learning phase after installation. During this time, the MDsense does not transmit any alarms while it learns the room settings and...
  • Page 11 Using an advanced fall detection algorithm with state-of-the-art technology, this wireless fall sensor does not require the resident to wear any detection device. When integrated with Care@Home™, the MDsense can detect a resident’s fall regardless of whether the room is brightly lit or completely dark. The MDsense is the perfect fall sensor for any home or retirement facility.
  • Page 12 Legal notice: https://www.essencesmartcare.com/privacy-notice For more information, see: https://www.essencesmartcare.com/assistance-center www.essencesmartcare.com • info@essence-grp.com © 2023 All rights reserved to Essence SmartCare Ltd.
