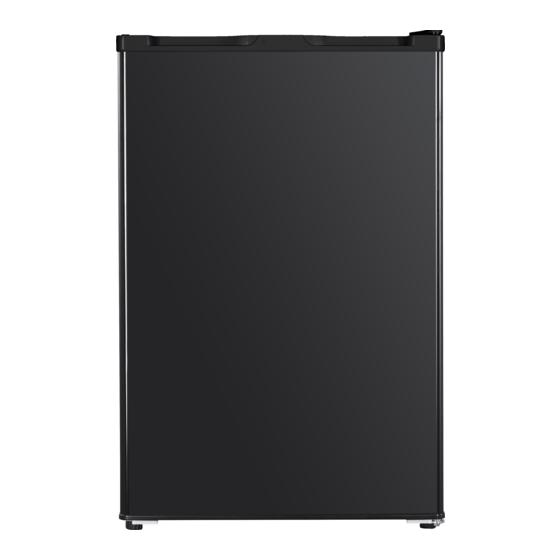

- Page 1 Instruction Manual Bar Fridge OBFD127B OBFD127X...
- Page 2 Thank you for purchasing an Omega appliance Tailored for the modern aesthetic and lifestyle of busy people, your new Omega Appliance will make a welcome addition to the family. Omega caters to style-savvy customers who look for balance between stunning form and clever function.
-
Page 3: Table Of Contents
The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance. Due to continual product development, Omega reserves the right to alter specifications and appearances without notice. -
Page 4: Important Safety Warnings
Important Safety Warnings Read the assembly instruction section and safety precautions of this booklet carefully before removing the contents of this carton. 1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. -
Page 5: Installation
Installation Unpacking the Appliance Remove the external & internal packaging. When unpacking the appliance please check for any damage. If damage is found, do not connect to the power source and contact the Authorised Service Provider. Before connecting the appliance to the power source, let it stand upright for approximately 4 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation. - Page 6 Installation 3. Move the core cover from left side to right side. 4. Unscrew bottom hinge of freezer door. Then And then lift the upper door and place it on a remove the door and place it on a soft pad to padded surface to prevent it from scratching.
- Page 7 Installation 9. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it. 10. Refit the bracket fitting the 11. Place the door back on. Ensure the door is bottom hinge pin. Replace both aligned horizontally and vertically so that the seals adjustable feet.
- Page 8 Installation Levelling the unit To do this adjust the two levelling feet at front of the unit. If the unit is not level, the doors and magnetic seal alignment will not be covered properly. Positioning Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance.
-
Page 9: Appliance Details
Appliance Details ELECTRICAL DETAILS: Rated Voltage: 220‐240 Vac 50 Hz. Supply Connection: 10 A domestic socket. Max Rated Inputs: See data label on unit. -
Page 10: Operating Instructions
Operating Instructions First use Cleaning the interior Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly. Important! Do not use detergents or abrasive powders, as these will damage the finish. -
Page 11: Care And Maintenance
Care and Maintenance CLEANING THE APPLIANCE Upon installation of your new appliance, it is recommended that it be cleaned thoroughly, and cleaned once a month after that. To clean the appliance, first turn the thermostat to 0, turn off the power, unplug from the power socket and remove all food and shelving. -
Page 12: Data Label And Circuit Diagram
Data Label and Circuit Diagram... -
Page 13: Troubleshooting
Troubleshooting PROBLEM POSSIBLE CAUSE Not plugged in. Appliance does not operate. The circuit breaker tripped or a blown fuse. The room temperature is hotter than normal. A large amount of food has been added to the freezer. The door is open too often, or not fully closed. The temperature control is not set correctly. -
Page 14: New Zealand Product Warranty Statements Of Standard Warranty Conditions
WHAT IS COVERED: By Our Warranty During the warranty period, Omega or its authorised Service Centre will, at no extra charge, if your appliance is readily accessible without the need of special equipment and subject to the terms and conditions of this warranty, repair or replace any parts which it considers defective.
