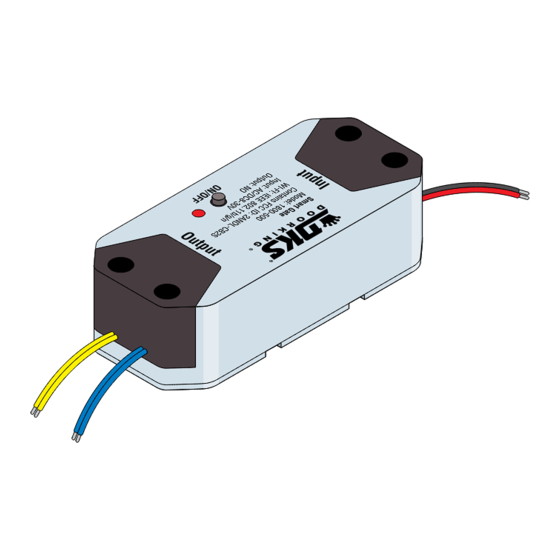

DKS SMART GATE CONTROLLER
Monitor and control your gate from anywhere. With the combined power of the DKS Smart Gate Controller, Smart Connect
App, and your existing WiFi connection, you can open and close your gate from anywhere — right on your smartphone.
Simply wire the Smart Gate Controller to any gate operator that has a built-in reply switch (or optional magnetic sensor)
and your existing WiFi.
Can be linked to personal networks for voice activation:
Hey Google, open the DoorKing Smart Gate.
Hey Google, close the DoorKing Smart Gate.
WARNING!
•
DO NOT let children use or play with the Smart Gate device or App.
•
ONLY operate your Smart Gate device when you are in clear view of your gate, and you have verified that there are no objects
obstructing the operation of the gate.
•
ALWAYS wait for the gate to complete its cycle before leaving the area.
•
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Set up your DKS Smart Connect account
Preparation Before Final Installation
Add Smart Connect Device to DKS Smart Connect app
Install your DKS Smart Gate Controller
DKS Smart Connect App
Link DKS Smart Connect account to Alexa
Link DKS Smart Connect account to Google Home
Set Up Siri to Control the DoorKing Smart Gate
Alexa, open the DoorKing Smart Gate.
Alexa, close the DoorKing Smart Gate.
Table of Contents
®
Copyright 2023 DoorKing
, Inc. All rights reserved.
1
DoorKing Part Number
1800-500
Hey Siri, open the DoorKing Smart Gate.
Hey Siri, close the DoorKing Smart Gate.
120 S. Glasgow Avenue
Inglewood, California 90301
2
2
2
3-5
6
7
8
9
U.S.A.
1800-065-B-9-23
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DoorKing 40-542
Summary of Contents for DoorKing 40-542
- Page 1 Install your DKS Smart Gate Controller DKS Smart Connect App Link DKS Smart Connect account to Alexa Link DKS Smart Connect account to Google Home Set Up Siri to Control the DoorKing Smart Gate 120 S. Glasgow Avenue ® Inglewood, California 90301 Copyright 2023 DoorKing , Inc.
- Page 2 I-Phone: Settings-Privacy & Settings – Bluetooth – DKS Smart needs to show enabled. Launch the app and tap the Press ON/OFF Button Enter your Wi-Fi name Now your DoorKing Smart Plus (+) in the top right until LED flashes. Tap and password, then tap Gate has been successfully corner to add a device.
- Page 3 Optional Magnetic Sensor DoorKing advises to use the built-in relay on every DKS operator circuit board to control this function instead of the magnetic sensor in this kit. If NOT using the built-in relay on the DKS operator circuit board, the magnetic sensor can be used instead.
- Page 4 9100, 9150 Slide Gate Operators 6050, 6100, 6300 Swing Gate Operators 6 1 0 9 1 5 9 1 0 Make sure gate operator’s power has been turned 4502-010 OFF BEFORE wiring to it. Black REVERSE Relay LOOP Full Open EXIT LOOP KEY SWITCH...
- Page 5 9200 Series, 6004, 6006, 6400 Swing Gate Operators 9500 Slide Gate Operators Open Beam Close 1476-010 Beam #1-OFF #2-OFF 4404-010 SW 2 FULL OPEN 4302-018 4404-010 SW 1 Set Jumper to NC Make sure gate operator’s 6 7 8 10 11 12 13 14 15 16 17 18 19 20 power has been turned SW 1 is Upside-Down on Board...
- Page 6 NOTE: These items are only available when logged in as the PRIMARY user. Name or rename your smart switch. DoorKing Smart Gate View smart switch IP address, MAC address, WiFi signal strength. Not Used Link to your smart voice assistant devices.
- Page 7 Link DKS Smart Connect account to Alexa Before Linking DKS Smart Connect to Alexa: • Launch DKS Smart Connect App, tap “DoorKing Smart Gate”. • Tap the Ring Bell in the bottom LEFT corner. • Tap “Set Password”. • Enter a Password, then tap “Confirm”.
- Page 8 Link DKS Smart Connect account to Google Home Before Linking DKS Smart Connect to Google Home: • Launch DKS Smart Connect App, tap “DoorKing Smart Gate”. • Tap the Ring Bell in the bottom LEFT corner. • Tap “Set Password”.
- Page 9 Set Up Siri to Control the DoorKing Smart Gate Siri can only be used when logged as primary user Log in the “DKS Smart Connect” app: Select “Scene” at Tap “+”. Select Select “Add Task”. Select “Run the device”. Select “DoorKing the bottom.
