Summary of Contents for DeWalt XR DCB118
- Page 1 DCB118...
- Page 2 English (original instructions) Copyright D WALT...
- Page 3 Fig. A XXXX XX XX...
-
Page 4: Technical Data

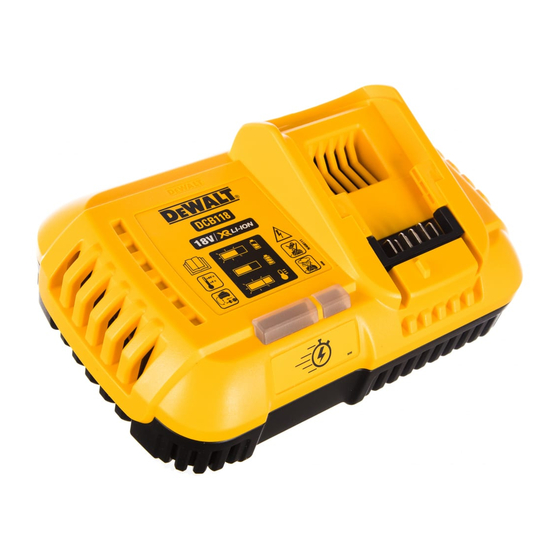

English BATTERY CHARGER DCB118 Congratulations! You have chosen a D WALT tool. Years of experience, thorough product development and innovation make D WALT one of the most reliable partners for professional power tool users. Technical Data DCB118 Output Mains voltage Type Battery type Li‑Ion Charger current... -
Page 5: Save All Warnings And Instructions For Future Reference
English Batteries DCB118 Cat # Weight (kg) Charge Times (Minutes) DCB546 18/54 6.0/2.0 1.08 DCB547 18/54 9.0/3.0 1.46 DCB548 18/54 12.0/4.0 1.46 DCB181 0.35 DCB182 0.61 60/40** DCB183/B/G 0.40 DCB184/B/G 0.62 75/50** DCB185 0.35 DCB187 0.54 DCB189 0.54 *Date code 201811475B or later **Date code 201536 or later SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE... - Page 6 English NOTICE: Under certain conditions, with the charger plugged into the power supply, the exposed charging contacts inside the charger can be shorted by foreign material. Foreign materials of a conductive nature such as, but not limited to, steel wool, aluminum foil or any buildup of metallic particles should be kept away from charger cavities.
- Page 7 English • These chargers are not intended for any uses other than charging D WALT rechargeable batteries. Any other uses may result in risk of fire, electrical shock or electrocution. • Do not expose charger to rain or snow. • Pull by plug rather than cord when disconnecting charger.
- Page 8 English • Do not disassemble charger; take it to an authorised service centre when service or repair is required. Incorrect reassembly may result in a risk of electrical shock, electrocution or fire. • In case of damaged power supply cord, the supply cord must be replaced immediately by the manufacturer, its service agent or similar qualified person to prevent any hazard.
-
Page 9: Electrical Safety
English Chargers WALT chargers require no adjustment and are designed to be as easy as possible to operate. Electrical Safety The charger has been designed for one voltage only. Always check that the battery pack voltage corresponds to the voltage on the rating plate. Also make sure that the voltage of your charger corresponds to that of your mains. - Page 10 English READ ALL INSTRUCTIONS Do not charge or use battery in explosive atmospheres, such as in the presence of • flammable liquids, gases or dust. Inserting or removing the battery from the charger may ignite the dust or fumes. Never force battery pack into charger. Do not modify battery pack in any way to •...
- Page 11 English Transportation WARNING: Fire hazard. Transporting batteries can possibly cause fire if the battery terminals inadvertently come in contact with conductive materials. When transporting batteries, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit. NOTE: Lithium‑ion batteries should not be put in checked baggage.
-
Page 12: Storage Recommendations
English When in Transport mode, strings of cells are electrically disconnected within the pack resulting in 3 batteries with a lower Watt hour (Wh) rating as compared to 1 battery with a higher Watt hour rating. This increased quantity of 3 batteries with the lower Watt hour rating can exempt the pack from certain shipping regulations that are imposed upon the higher Watt hour batteries. -
Page 13: Package Contents
English Have defective cords replaced immediately. Charge only between 4 ˚C and 40 ˚C. Only for indoor use. Discard the battery pack with due care for the environment. Charge D WALT battery packs only with designated D WALT chargers. Charging battery packs other than the designated D WALT batteries with a D WALT charger may make them burst or lead to other dangerous situations. -
Page 14: Description (Fig. A)
English Description (Fig. A) WARNING: Never modify the power tool or any part of it. Damage or personal injury could result. Battery Battery release button Charger Intended Use The DCB118 charger is designed for charging 18V D WALT Li‑Ion XR and XR FLEXVOLT battery packs: DCB181, DCB182, DCB183, DCB183B, DCB183G, DCB184, DCB184B, DCB184G, DCB185, DCB187, DCB189, DCB546, DCB547, DCB548. - Page 15 English Indicators Stage 1 Charging Stage 2 Charging Fully Charged Hot/Cold Pack Delay* * The red light will continue to blink, but a yellow indicator light will be illuminated during this operation. Once the battery pack has reached an appropriate temperature, the yellow light will turn off and the charger will resume the charging procedure.
-
Page 16: Wall Mounting
English Wall Mounting These chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet, and away from a corner or other obstructions which may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the wall. -
Page 17: Optional Accessories
English Optional Accessories WARNING: Since accessories, other than those offered by D WALT, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only D WALT recommended accessories should be used with this product. - Page 20 Belgique et WALT ‑ Belgium BVBA Tel: NL 32 15 47 37 63 www.dewalt.be luxembourg België Egide Walschaertsstraat 16 Tel: FR 32 15 47 37 64 enduser.BE@SBDinc.com en luxemburg 2800 Mechelen Fax: 32 15 47 37 99 Danmark WALT (Stanley Black&Decker AS) Tel: 70 20 15 10 www.dewalt.dk Roskildevej 22 Fax: 70 22 49 10...
