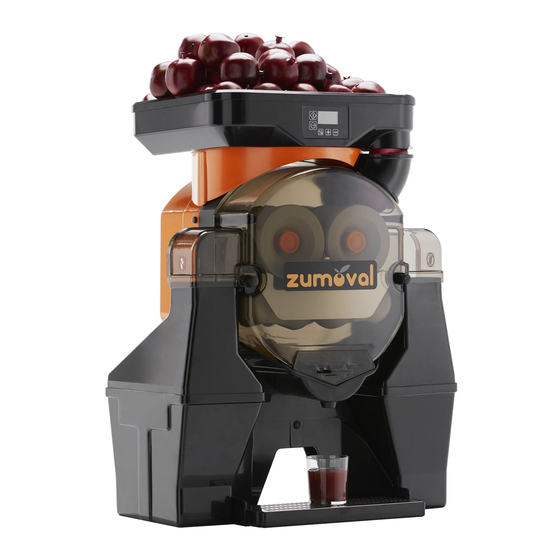

- Page 1 USER’S MANUAL 2022...
-
Page 2: Table Of Contents
INDEX General information Technical characteristics Warnings Set up of the machine Set up of the stand Set up of the options Electronic functioning Warnings and emergency stops Cleaning and maintenance Problem solving Declaration of conformity Warranty Spare parts Annex... -
Page 3: General Information
GENERAL INFORMATION First off all, we would like to thank you for choosing a ZUMOVAL juice machine and for the trust you have shown in our products. For any questions concerning the machine’s usage, please do not hesitate to contact our distributor or ZUMOVAL directly. -
Page 4: Warnings
WARNINGS · It is the responsibility of the user to read the enclosed warnings prior to using this machine. · This equipment is intended for commercial use in places such as offices, stores, supermarkets, hotels, bars, coffee shops... · This device can be used by children aged 8 years and above and people with reduced physical, sensory or mental abilities or lack of experience and nowledge, if they have been given appropriate supervision or training regarding the use of the device in a safe manner and understand the dangers involved. - Page 5 · The machine should never be operated by a minor or inexperienced staff without supervision. · Check that the voltage of your outlet is according to voltage stated in technical label on the side of your machine. Only use power cords with grounding connection. ·...
-
Page 6: Set Up Of The Machine
SET UP OF THE MACHINE MINIMAX / MINIMATIC 1. Unscrew the side thumbscrews. For MINIMATIC juicers also unscrew the head screw. 2. Place the peel bucket and the juice tray. MINIMAX 3. Place the feeder in the corresponding place by screwing the thumbscrews. -
Page 7: Set Up Of The Stand
SET UP OF THE STAND Anchoring on the MINI stand 1. Place the Minimax or Minimatic juicer on the stand in the correct position. Fasten the juicer to the stand using the thumbscrews. MINI stand 1. Remove the down tube from the trolley inside the stand and place it in the stand as shown in the drawing. -
Page 8: Set Up Of The Options
SET UP OF THE OPTIONS Stainless Steel Self-Tap 1. Thread the Stainless Steel Self-Tap assembly to the support. Self-Cleaning system 1. Connect the juicer to the water supply through the socket at the rear of the machine. The connection must be made using a G 1/4" female thread. -
Page 9: Electronic Functioning
Status Area Voltage input * Counter * Functioning mode Selector * * Not available on Minimax and Minimatic models MACHINE CONFIGURATION 1. To access settings menu Press and hold the Self-Cleaning/Menu button for 2 seconds. 2. Select the option to configure Press the buttons to move between configurable settings. - Page 10 FUNCTIONING STANDARD OPTION 1. Turn on the control display. Press and hold Start for 2 seconds. 2. Select continuous or selector mode operation. Press to set continuous or selector mode operation. = 0 Continuous mode active = 0 Selector mode active 3.
- Page 11 SELF-CLEANING OPTION (Only for machines including Self-Cleaning option) To start washing* Make sure that any orange is inside squeezing area. To start washing press when machine is running. To finish washing Automatic shower will stop washing when cycle time is completed or when pressing again * The automatic feeder is equipped with a Lock/Stop system to stop the feeding of fruits.
-
Page 12: Warnings And Emergency Stops
WARNINGS AND EMERGENCY STOPS Warning and Emergency stops are situations that require user attention. These situations can answer to following causes: · User security and protection. · Equipment protection against external factors. · User attention is required to continue a sequenced operation. ·... -
Page 13: Cleaning And Maintenance
CLEANING AND MAINTENANCE The cleaning process is very important to keep the juicer in perfect condition. In order to perform a correct cleaning, you must take into account the following guidelines: • Do not allow the residues produced in the squeezing process to dry out. •... - Page 14 MINIMAX and MINIMATIC Empty the waste bin. Remove the front cover by sliding it slightly upwards and remove it. 1. Remove the positioner by sliding it upwards. 2. Remove the knifepiece by unscrewing the thumscrew. ¡BE CAREFUL! Handle with caution as this part incorporates a cutting element.
- Page 15 BASIC, BIGBASIC, TOP, FASTTOP and BIGTOP Empty the waste bins. 1. Remove the front cover by unscrewing the threaded thumscrews on the sides. Unscrew the central thumbscrew that fixes the screen and remove it as well. 2. Unscrew the four thumscrews that fix the drums and males of the squeezing system.
- Page 16 AUTOMATIC DOUBLE ACTION FILTER 1. Place the tap handle in horizontal position. Remove the Automatic Filter assembly by sliding it upwards and pulling it outwards. Remove the drop tubes by sliding them backwards and pulling them out. 2. Remove the base of the automatic filter by unhooking it from the two front and rear slots.
- Page 17 DISPENSER STAND 1. Remove the top cover of the dispenser by lifting it a few millimeters and pulling it out horizontally. 2. Remove the filter and the shaker. 3. Unscrew the tap assembly from the coupling bracket. Unscrew the inner reservoir nut and remove the nuts and reservoir gasket.
-
Page 18: Problem Solving
PROBLEM SOLVING FAILURE CAUSE SOLUTION Machine unplugged Plug it to socket No power Check the plug and socket Transparent cover misplaced Make sure it is well placed The machine does not operate Defective safe detectors Call customer service Defective ON/OFF button Call customer service Defective electric circuit Call customer service... -
Page 19: Declaration Of Conformity
ZUMOVAL, S.L., Based in Pol. Ind. Fuente del Jarro, C/ Islas Canarias 59, 46988 – Paterna (Valencia - Spain), declares, under our exclusive responsibility that following Orange Juicer Machines of the brand Zumoval, and models: MINIMAX MINIMATIC BASIC... -
Page 20: Warranty
BEFORE the total or partial manipulation of the machine. The machine must be sent to ZUMOVAL for testing and only if the machine is not sent to ZUMOVAL, only a technician authorized by ZUMOVAL will be able to provide assistance.
