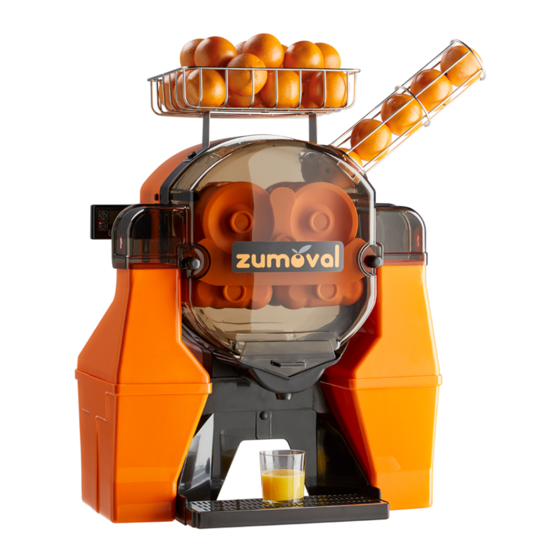

Summary of Contents for Zumoval Minimax
-
Page 2: Table Of Contents
General information Technical characteristics Declaration of conformity Warranty Warnings Set up of the machine Set up of the stand Cleaning and maintenance Options Stainless Steel Self Tap Pulp out filter Electronic functioning Machine configuration Standard Option Self tap Option Level detector Option Warnings and emergency stops Problem solving Spare parts... -
Page 3: General Information
First off all, we would like to thank you for choosing a new ZUMOVAL orange juice machine and for the trust you have shown in our products. For any questions concerning the machine’s usage, please do not hesitate to contact our distributor or ZUMOVAL directly. -
Page 5: Warranty
To fulfil the terms of the warranty, all repairs must be performed by our technical department or the official Zumoval distributor. Any falsification of warranty documentation, or the loss or damage to the machine’s identification plate, will lead to the present warranty becoming invalid. -
Page 6: Warnings
• It is the responsibility of the user to read the enclosed warnings prior to using this machine. • After removing the packaging, check that equipment is not damaged. If in doubt, do not use it and contact the company. •... -
Page 7: Set Up Of The Machine
Minimax Unscrew the thumbscrew and place the feeder tube. Place the peel bucket and the juice tray. Minimatic Unscrew the thumbscrew and the screw of the head feeder, place the feeder tube. Place the peel bucket and the juice tray. -
Page 8: Set Up Of The Stand
Mini stand Place the machine on the stand and place the down tubes. Self-service stand Put the machine on the stand, place the ramps and the down tubes and the juice tray. Dispenser stand Realize the same steps as for the self-service stand. -
Page 9: Cleaning And Maintenance
Unplug the machine from the mains socket. Remove the juice filter. Empty the peel bucket. Modelo Minimax y Minimatic, Basic, BigBasic and Top: Model with metal stand: Remove the lateral tubes. Remove the front cover, moving it Remove the front cover, by slowly upwards and towards. - Page 10 Basic – BigBasic – Top – FastTop Unscrew the five principal screws of the squeezing system parts. Remove the two squeezing drums, the two male parts and knifepiece pulling it outwards. Be careful with this part, because of its cutting edge.
-
Page 11: Options
Stainless Steel self tap In order to ensure the perfect hygiene of your orange squeezer, it is necessary to clean the tap periodically. Follow the instructions according to the diagram. Follow the depicted instructions. 2018v0 10... -
Page 12: Pulp Out Filter
Pulp-Out filter Follow drawing instructions to disassemble the Pulp-Out Filter: 1. Displace the pulp remover until the limit of the filter. 2. Tilt the filter and remove it horizontally. Follow drawing instructions to disassemble squared stainless steel falling tubes: 1. Once front cover has been removed, remove top squared tubes by displacing, first, vertically and, second, horizontally. -
Page 13: Electronic Functioning
First of all, make sure that feeding tube contains oranges. PLUG MACHINE INTO A NORMAL MAIN SOCKET WITH EARTH PROTECTION TURNING ON CONTROL PANEL 2 seconds Selector CONTROL PANEL PARTS Counter Functioning mode Voltage Input (V) “Start” button “Stop” button Status Area “Shower/Home”... -
Page 14: Standard Option
FUNCTIONING: STANDARD OPTION TURNING ON CONTROL DISPLAY If control display is not ON, press and hold for 2 seconds. SELECTING SQUEEZING MODE: CONTINUOS OR SELECTOR Press to select Squeezing Mode: If 0 CONTINUOUS MODE IS ACTIVE If ≠ 0 SELECTOR MODE IS ACTIVE TO START SQUEEZING TO STOP SQUEEZING Machine will stop squeezing if... -
Page 15: Self Tap Option
FUNCTIONING: SELF TAP OPTION TURNING ON CONTROL DISPLAY If control display is not ON, press and hold for 2 seconds. TO START SQUEEZING With machine in Ready Status (Green led lightning), open Self Tap TO FINISH SQUEEZING Machine will stop squeezing if Self Tap is closed , if is pressed or if number of oranges set in selector have been squeezed (Selector Functioning). -
Page 16: Level Detector Option
FUNCTIONING: LEVEL DETECTOR OPTION TURNING ON CONTROL DISPLAY If control display is not ON, press and hold for 2 seconds. LEVEL DETECTOR ACTIVATION TO START SQUEEZING Machine will automatically start squeezing when a “Low Level” signal from detector is received. TO FINISH SQUEEZING Machine will stop squeezing when a “High Level”... -
Page 17: Warnings And Emergency Stops
WARNINGS AND EMERGENCY STOPS Warning and Emergency stops are situations that require user attention. These situations can answer to following causes: • User security and protection. • Equipment protection against external factors. • User attention is required to continue a sequenced operation. •... -
Page 18: Problem Solving
FAILURE POSSIBLE CAUSE SOLUTION Machine unplugged Plug it to socket No power Check the plug and socket Transparent cover misplaced Make sure it is well placed The machine does not operate Defective safe detectors Call Customer service Defective ON / OFF button Call Customer service Defective electric circuit Call Customer service... - Page 35 SPARE PART LIST 2018v0 Minimax / Minimatic / MiniMaster Basic / BigBasic / Top / FastTop TopMaster / Master / FrigoMaster (*) Indicate model and option. SPARE PART LIST 2018v0 COD (*) DESCRIPTION MODEL TOR DIN-912 M-5X18 INOX R8MM 00018...
- Page 36 (*) Indicate model and option. SPARE PART LIST 2018v0 COD (*) DESCRIPTION MODEL POMO D45 HEMBRA M-12 NA 00152 FEMALE THUMSCREW BASE CONECTOR IEC FILTER 15A 00164 POWER INLET CONNECTOR FILTER BTM-MXM CABLE BTM-MXM 7/C UL-18AWG X650 T/F/O/E 00166 INTERNAL WIRING BTM-MXM ANILLO SEEGER DIN 471 E-34 00168...
- Page 37 (*) Indicate model and option. SPARE PART LIST 2018v0 COD (*) DESCRIPTION MODEL REDUC BTM VARVEL 14-160 R:1/20 00295 REDUCER ESCUADRA SOPORTE MUEB BTM BK 00298 SUPPORT BRACKET STAND BANCADA BTM BK 00300 BASEPLATE TUBO ALIM TOP PLAST TRAMO 00309 FEEDER PLASTIC TUBE SECTION TUBO ALIM MX GRAPA BK 00311...
- Page 38 (*) Indicate model and option. SPARE PART LIST 2018v0 COD (*) DESCRIPTION MODEL RETEN PROTECCION SUP MXM 00427 UPPER SEAL PROTECTION TOR DIN-85 M-6X20 INOX 00431 RUSTLESS SCREW BTM-MXM TOR DIN-85 M-6X12 INOX 00432 RUSTLESS SCREW BTM-MXM ARANDELA DIN-6798 D06 INOX 00436 RUSTLESS WASHER BTM-MXM...
- Page 39 (*) Indicate model and option. SPARE PART LIST 2018v0 COD (*) DESCRIPTION MODEL TUBO ALIM MM INOX D80 00667 FEEDER TUBE PROTECTION TUERCA DIN-1587 M-4 INOX CIEGA 00668 RUSTLESS NUT PIÑON MXM INFERIOR-1 CONTADOR 00669 LOWER GEAR CABLE BTM-MXM 3/C UL-18AWG X650 T/F 00670 INTERNAL WIRING RAMPA CAIDA IZQ MUEB S/S-DISP...
- Page 40 (*) Indicate model and option. SPARE PART LIST 2018v0 COD (*) DESCRIPTION MODEL DC VALVULA BOLA 1/4" H-H AIGNE 00789 DC VALVE BTM-MXM FR.INOX BIGBASIC IN-PR-TI 00791 FRONTAL SHEET FR.INOX BTM IN-PR-TI-TP 00795 FRONTAL SHEET TROLLEY 52L MUEB 00818 TROLLEY MUEBLES DETECT SENSOR M8 024/250VAC 00828...
- Page 41 (*) Indicate model and option. SPARE PART LIST 2018v0 COD (*) DESCRIPTION MODEL CD JUNTA GRIFO INOX 31036 CD GASKET TAP CD PALANCA MANDO GRIFO INOX 31038 CD PUSH HANDLE CD UNIDAD CADDY 7/1 G 230V-50H 31101 CD CADDY 230V-50HZ CD UNIDAD CADDY 7/1 G 115V-60H 31102 CD CADDY 115V-60HZ...
