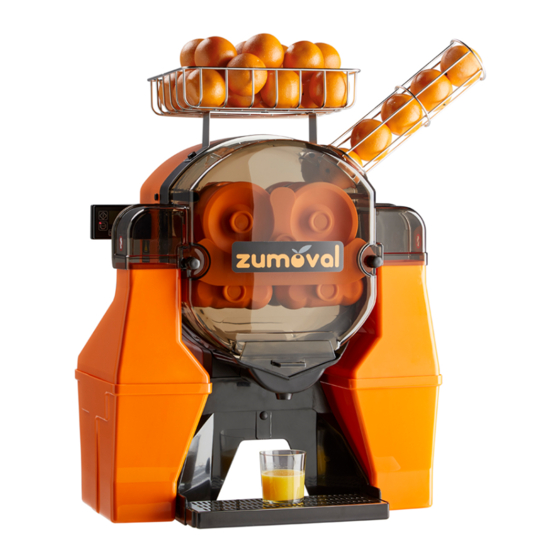

Zumoval Minimax User Manual

Hide thumbs Also See for Minimax:
Table of Contents

Advertisement

Quick Links

See also: User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Minimax and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zumoval Minimax

Summary of Contents for Zumoval Minimax

  • Page 2 Set up of the machine ..........................Set up of the stand ..........................Proceedings ..........................Cleaning and maintenance ..........................Problem solving ..........................Guarantee ..........................Certificates ..........................Zumoval, S.L. has the right to modificate the content in this manual, without prior notification.
  • Page 3 GENERAL INFORMATION First off all, we would like to thank you for choosing a new ZUMOVAL orange juice machine and for the trust you have shown in our products. For any questions concerning the machine’s usage, please do not hesitate to contact our distributor or ZUMOVAL directly.

  • Page 4: Technical Characteristics

    Technical characteristics 230V - 50/60Hz 0.55 kw 0.55 kw 0.55 kw 100/115V - 60Hz 4,1 / 3,7 A 4,1 / 3,7 A 4,1 / 3,7 A 230V - 50/60Hz 9 / 8,6 A 9 / 8,6 A 9 / 8,6 A 115V - 60Hz 15 units.
  • Page 5 • It is the responsibility of the user to read the enclosed warnings prior to using this machine. • After removing the packaging, check that equipment is not damaged. If in doubt, do not use it and contact the company. •...
  • Page 6 Proceed to assemble all the pieces that for transportation reasons come unassembled in their proper location. SET UP OF THE MACHINE Minimax Unscrew the thumbscrew and place the feeder tube. Place the peel bucket and the juice tray. Minimatic / MiniMaster...
  • Page 7 SET UP OF THE STAND Mini stand / MiniMaster Place the machine on the stand and place the down tubes. Self service stand / TopMaster Put the machine on the stand, place the ramps and the down tubes and the juice tray.
  • Page 8 Plug the machine into a normal main socket with earth protection. Plug-in point according to model PROCEEDINGS Proceed to introduce oranges through the feeding tube, or the feeding basket (depending on the model). To begin with the squeezing process: Turn on the switching, which is situated at the upper right side of the machine (position I). Turn the self - Machines with SELF SERVICE TAP: switch to the position AUT, press the tap...
  • Page 9 Make sure that the squeezer male parts are horizontal Unplug the machine from the mains socket. Remove the juice filter. Model Minimax, Minimatic, Basic, BigBasic, and Top: Empty the peel bucket. Model with metal stand: Remove the lateral tubes. Remove the front cover, by...
  • Page 10 For machines with AUTOMATIC SHOWER: This system does not replace the daily cleaning of the machine. It permits a quick cleaning during the day, of the area the oranges are squeezed. Other than daily cleaning, Zumoval machines require no other routine maintenance.
  • Page 11 FAILURE POSSIBLE CAUSE SOLUTION Machine unplugged Plug it to socket No power Check the plug and socket Transparent cover misplaced Make sure it is well placed The machine does not operate Defective safe detectors Call Customer service Defective ON / OFF button Call Customer service Defective electric circuit Call Customer service...
  • Page 12 To fulfil the terms of the warranty, all repairs must be performed by our technical department or the official Zumoval distributor. Any falsification of warranty documentation, or the loss or damage to the machine’s identification plate, will lead to the present warranty becoming invalid.
  • Page 13 DECLARATION OF CONFIRMITY ZUMOVAL, S.L., Based in, Pol. Ind. Fuente del Jarro, C/ Islas Canarias 59, 46988 – Paterna (Valencia - Spain), declares, under our exclusive responsibility that following Orange Juicer Machines of the brand Zumoval, and models: MINIMAX BASIC...
  • Page 30 SPARE PART LIST (2013-V0) Minimax / Minimatic MiniMaster Basic / BigBasic Top / FastTop / TopMaster Master / FrigoMaster SPARE PART LIST (2013-V0) (*) Indicate model and option. COD (*) DESCRIPTION MODEL 00018 RUSTLESS SCREW TOR DIN-912 M-5X18 INOX R8MM...
  • Page 31 (*) Indicate model and option. SPARE PART LIST (2013-V0) COD (*) DESCRIPTION MODEL CABLE BTM-MXM UL 2/C 18AWG X350 T/T BTM-MXM 00127 INTERNAL WIRING CARTER BTM TAPA 00129 SUMP COVER PANTALLA ZUMO BTM NA 00131 PROTECT JUICE SCREEN BANDEJA GT BTM BK 00136 TRAY ELFIN KIT BLOQUES P/L (4NA)
  • Page 32 (*) Indicate model and option. SPARE PART LIST (2013-V0) COD (*) DESCRIPTION MODEL POMO D25 MACHO M-6 BK BTM-MXM 00289 MALE THUMSCREW CUBRE JUNTA LATERAL TOP BK 00291 BACK COVER JOINT REDUC BTM VARVEL 14-160 R:1/28 00294 REDUCER ESCUADRA SOPORTE MUEB BTM BK 00298 SUPPORT BRACKET STAND BANCADA BTM BK...
  • Page 33 (*) Indicate model and option. SPARE PART LIST (2013-V0) COD (*) DESCRIPTION MODEL TOR DIN-85 M-6X20 INOX 00431 RUSTLESS SCREW TOR DIN-85 M-6X12 INOX BTM-MXM 00432 RUSTLESS SCREW ARANDELA DIN-6798 D-6 INOX BTM-MXM 00436 RUSTLESS WASHER ELFIN KIT BLOQUES P/L (2NA+2NC) 00443 SWITCH BLOCK ELFIN KIT BLOQUES P/L (1NA)
  • Page 34 (*) Indicate model and option. SPARE PART LIST (2013-V0) COD (*) DESCRIPTION MODEL CABLE CONEX IEC320-C13+SCHUKO BTM-MXM 00705 POWER CORD CABLE RIGIDO UL 1/C 18AWG ROJO BTM-MXM 00713 CABLE RIGID SINGLE CORE VENTILADOR SU 220/240V-50/60HZ 00714 VENTILADOR SU 115V-50/60HZ 00715 VENTILADOR SU REJILLA 92X92 PL 00716 FAN GRID...
  • Page 35 (*) Indicate model and option. SPARE PART LIST (2013-V0) COD (*) DESCRIPTION MODEL DC ADAP MACHO 6-1/4" BSP BTM-MXM 01181 DC ADAPTER MALE DC CODO IGUAL 6MM BTM-MXM 01182 DC ELBOW DC ADAP M ESP LISA 6-1/4" BSP BTM-MXM 01183 DC ADAPTER MALE DC ADAP HEMBRA 6-1/4"...
