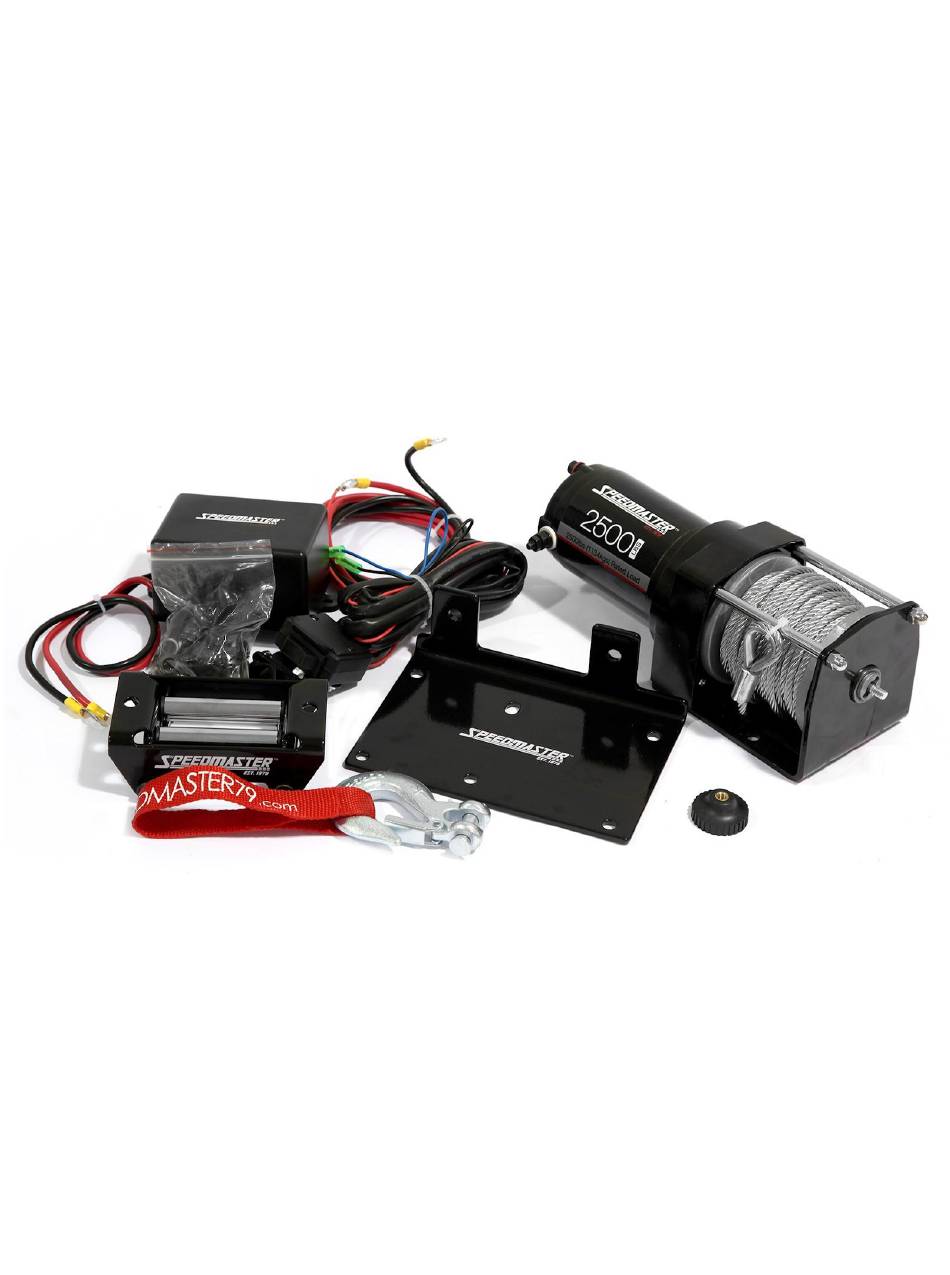

- Page 1 Speedmaster 2500lbs / 1130kgs 12V Electric ATV Winch Kit w/ Remote Switch PCE553.1001 INSTALLATION METHOD FOR ATV WINCH...
- Page 2 SAFETY PRECAUTIONS Clothing Do not wear loose clothing or jewelry which may be caught by moving elements. Always wear leather clothes when holding the winch rope. Do not hold the steel rope with bare hands, even minor cracks on the line may cause injuries.
- Page 3 IMPORTANT: DO NOT LOAD THE WINCH MORE THAN UP TO 80% Slope Inclination (Percent 100% Gradient) Slope Inclination 5.7106 11.3099 21.8014 30.9638 38.6598 (Degree) MOUNTING THE WINCH 1. Use the bracket (See Figure 1) as a temple to drill holes onto your desired mounting location.
- Page 4 3. Then mount the winch onto the bracket, as shown. (See Figure 3) Figure 3: Mounting the winch onto the bracket 4. Finally, bolt on the fairlead using the two metric bolts. (Hex Heads: 13mm, Nuts: 14mm) (See Figure 4) Figure 4: Mounting the fairlead to the bracket...
- Page 5 Figure 5: Winch assembly WIRING DIAGRAM...
