Summary of Contents for SPEEDMASTER PCE553.1002

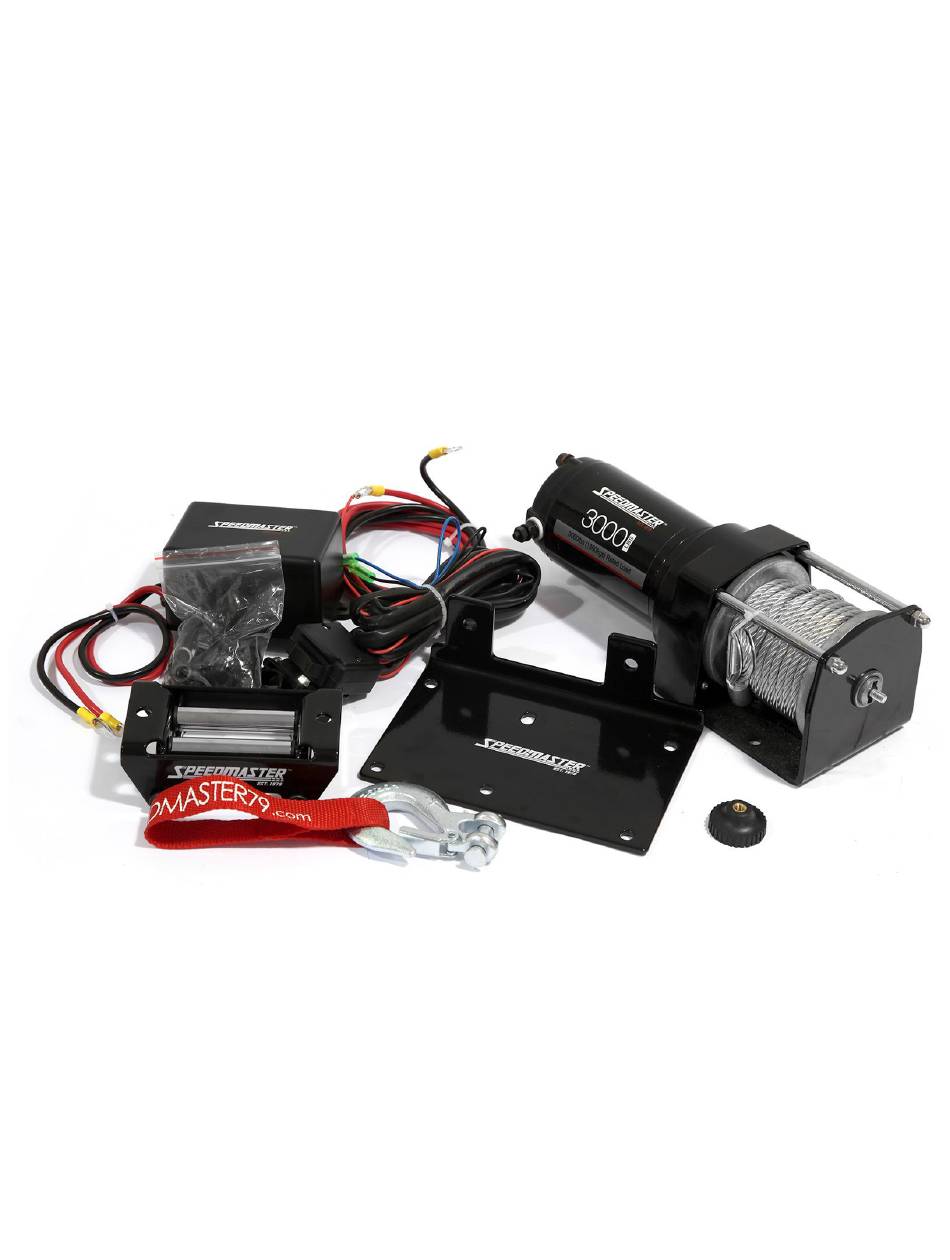

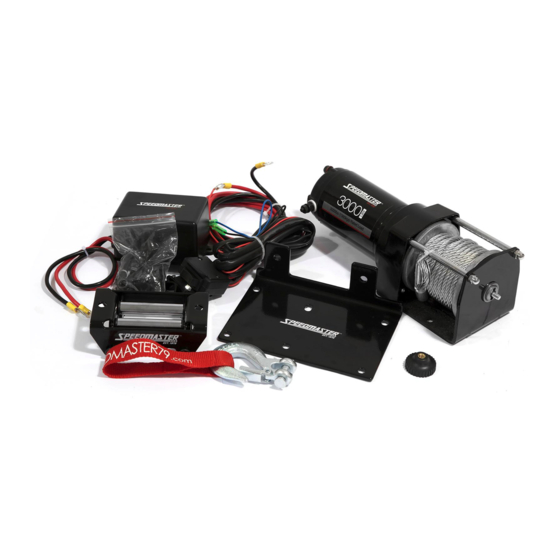

- Page 1 Speedmaster 3000lbs / 1360kgs 12V Electric ATV Winch Kit w/ Remote Switch PCE553.1002 INSTALLATION METHOD FOR ATV WINCH...
- Page 2 SAFETY PRECAUTIONS Clothing Do not wear loose clothing or jewelry which may be caught by moving elements. Always wear leather clothes when holding the winch rope. Do not hold the steel rope with bare hands, even minor cracks on the line may cause injuries.
- Page 3 IMPORTANT: DO NOT LOAD THE WINCH MORE THAN UP TO 80% Slope Inclination (Percent 100% Gradient) Slope Inclination 5.7106 11.3099 21.8014 30.9638 38.6598 (Degree) MOUNTING THE WINCH 1. Use the bracket (See Figure 1) as a temple to drill holes onto your desired mounting location.
- Page 4 Figure 2: Mounting the bracket onto desired location 3. Then mount the winch onto the bracket, as shown. (See Figure 3) Figure 3: Mounting the winch onto the bracket 4. Finally, bolt on the fairlead using the two metric bolts. (Hex Heads: 13mm, Nuts: 14mm) (See Figure 4)
- Page 5 Figure 5: Winch assembly WIRING DIAGRAM...
