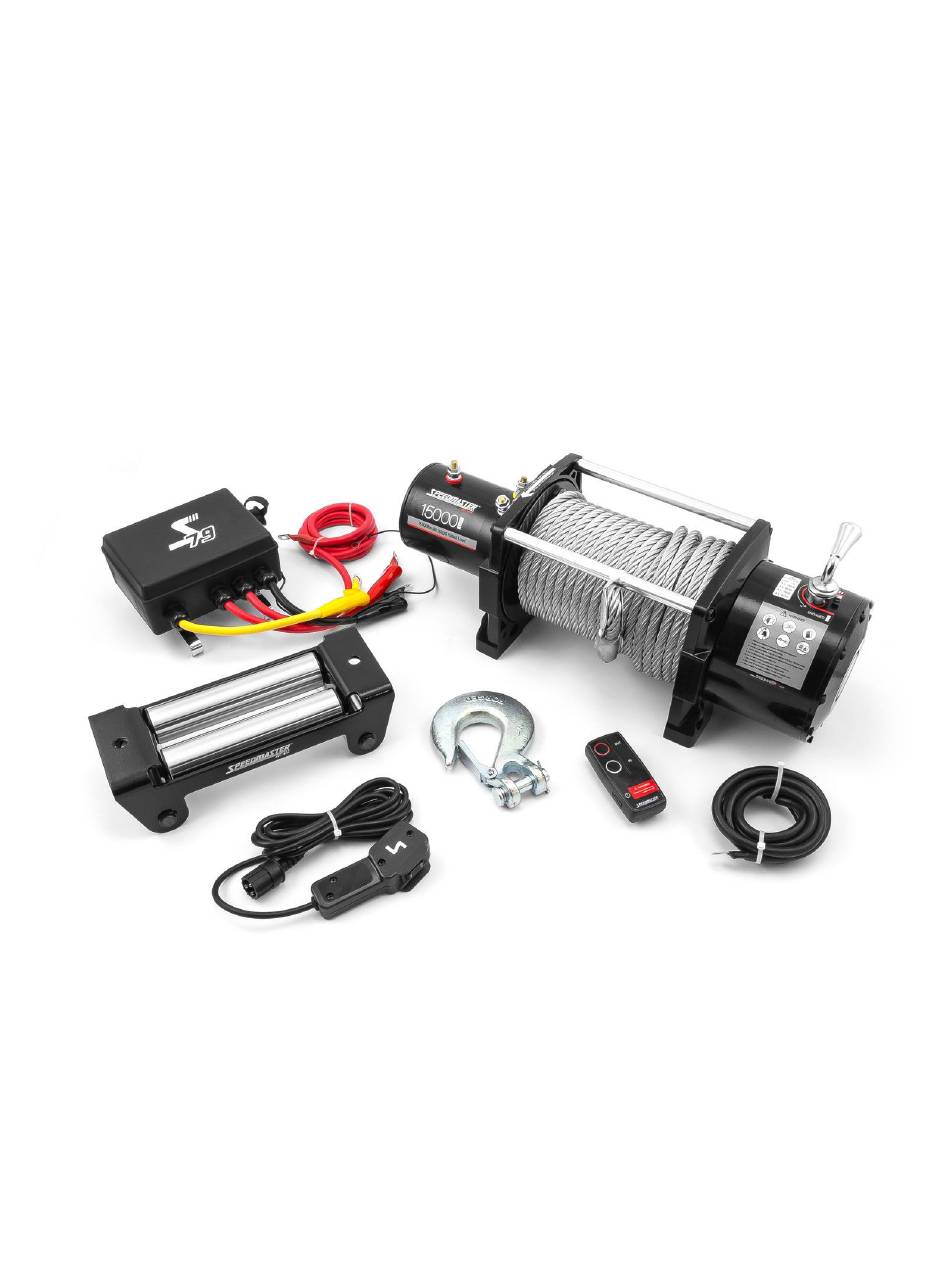

- Page 1 Speedmaster 15000lbs / 6803kgs 12V Electric 4wd Winch Kit w/ Wireless Remote PCE553.1006 INSTALLATION METHOD FOR WINCH...
- Page 2 SAFETY PRECAUTIONS Clothing Do not wear loose clothing or jewelry which may be caught by moving elements. Always wear leather clothes when holding the winch rope. Do not hold the steel rope with bare hands, even minor cracks on the line may cause injuries.
- Page 3 IMPORTANT: DO NOT LOAD THE WINCH MORE THAN UP TO 80% Slope Inclination (Percent 100% Gradient) Slope Inclination 5.7106 11.3099 21.8014 30.9638 38.6598 (Degree) NOTE: Bracket for fairlead is not included. MOUNTING THE WINCH 1. Use the diagram as a reference to drill the hole pattern onto desired location. (See Diagram 1) ALL DIMENSIONS IN INCHES.
- Page 4 WIRING DIAGRAM...
