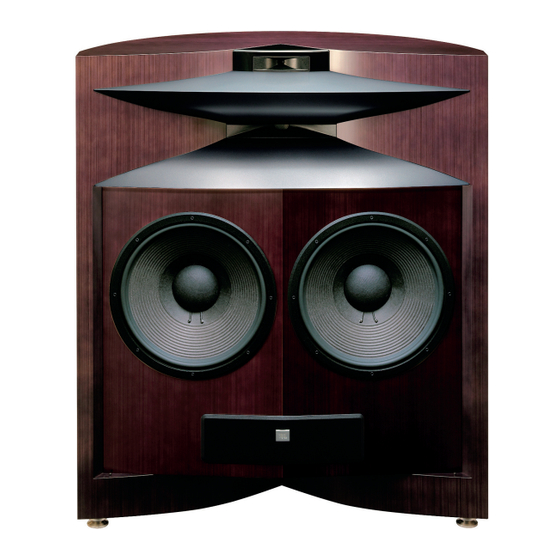

Harman JBL DD65000 Technical Manual

Technical Manual
DD65000
ACOUSTIC & ELECTRICAL SPECIFICATIONS:
Nominal Impedance
Max Amp Power
Frequency Response
Sensitivity
Crossover Frequencies
SYSTEM COMPONENTS:
Grille
Low-Frequency Transducer 1501Al-1 x 2
Size
DC Resistance
High-Frequency Transducer 476Mg
Size
DC Resistance
Ultrahigh-Frequency
Transducer
Size
DC Resistance
Crossover Network(s)
PACKAGING
Item Part Number Description
1 060-0635-003 ASY, SPKR - DD65000ZW
2 130-0127-001 ASY, GRL, BLK - DD65000/DD67000RW
4 900-0902-001 CTN, MSTR - DD65000
5 362914-003 PAD,TL/BR,DD66000
6 362914-004 PAD, TR/BL, DD66000
7 362915-002 PACKING, PALLET, DD66000
8 362917-001 SLEEVING, PACKAGE, WITH FOAM, DD66000
9 362921-001 PACKING, TRAY, DD66000
10 335692-002 CORNER, PROTECTIVE, 45", IL50
11 335692-005 CORNER, PROTECTIVE, 24", DD66000
12 72298 FABRIC, 24" X 36", POLYESTER FIBER CLOTH
8500 Balboa Blvd. Northridge, CA 91329 USA
Features, specifications and appearance are subject to change without notice.
All manuals and user guides at all-guides.com
8 ohms
250 watts*
30Hz – 50kHz (-6dB)
96dB (2.83V@1m)
180Hz, 750Hz, 20kHz
130-0127-001
15" (381mm)
9.2 ohms
4" (102mm)
8 ohms
045Mg
1" (25mm)
3.15 ohms
400-0478-001 (LF1)
400-0478-002 (LF2)
400-0478-003 (HF)
400-0478-004 (UHF)
Qty Unit
1 EA
1 EA
1 EA
1 EA
1 EA
1 EA
2 EA
2 EA
2 EA
2 EA
13 EA
AURAL SWEEP TEST SPECIFICATIONS:
System Aural Sweep Test:
L.F.1 Aural Sweep Test:
L.F.2 Aural Sweep Test
H.F. Aural Sweep Test
U.H.F Aural Sweep Test
PHYSICAL SPECIFICATIONS:
Dimensions (H x W xD) 38"W x 43.75"H x 18.25"D
Weight
:
WARRANTY
Refer to Warranty Statement packed with each
product.
*
The maximum recommended amplifier power rating
will ensure proper system headroom to allow for
occasional peaks. We do not recommend sustained
operation at these maximum power levels.
Item Part Number Description
13 920-0761-001 LABEL, UPC BARCODE, JBL PASSIVE SPEAKER, DD65000 ZW
14 303611-2071 BARCODE LABEL, DD65000 ZW
15 338067-004 FOOT, SPIKE, SPEAKER, K2S9800
16 338067-005 FOOT,BASE,FLOOR-K2S9800
17 49790P MICROFOAM, .062THK, 20" X 18" SHEETS
18 65012-01 TAPE, 3", CLEAR
20 9551108-001 BAG, PLASTC, 4X4"
21 330150-001 STRAP, CLEAR, 3/8"WIDE
22 363207-001 DRIVER, HEX, 5/32, DD66000
23 354868-001 DESICCANT, 8 UNIT
6V 20Hz-20kHz
20V 20Hz-1.6kHz
20V 20Hz-1.6kHz
1.2V 100Hz-1kHz
1.2V 4kHz-20kHz
(965cm x 1111mm x 464cm)
300 lbs (136.078kg) each
Qty
1
1
4
4
4
20
2
57
1
4
11/2012
Unit
EA
EA
EA
EA
EA
EA
EA
EA
EA
EA
