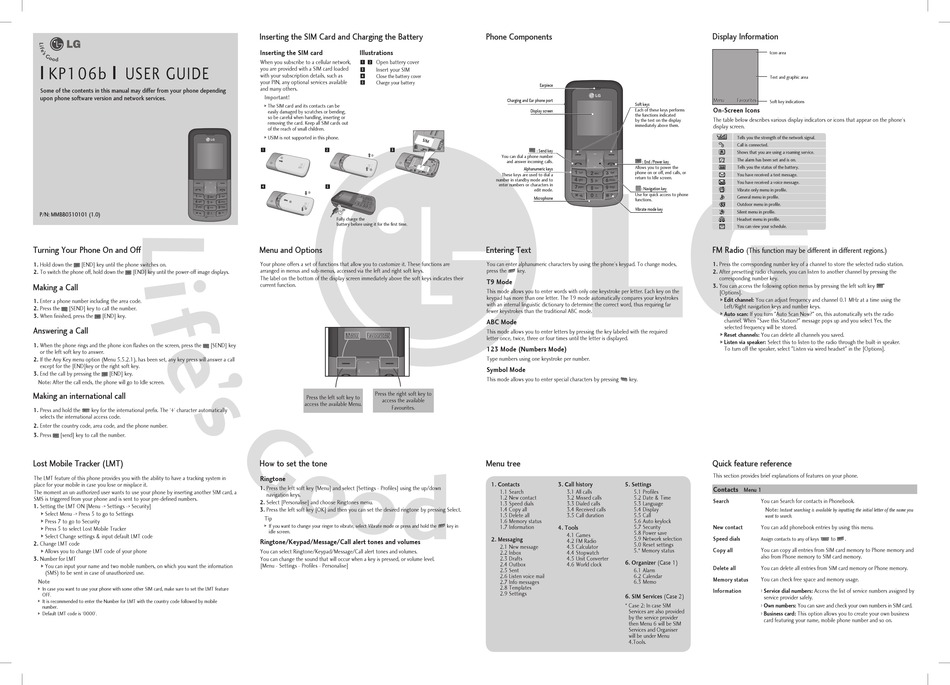

LG KP106b User Manual

KP106b USER GUIDE
Some of the contents in this manual may differ from your phone depending
upon phone software version and network services.
P/N: MMBB0310101 (1.0)
Turning Your Phone On and Off
1. Hold down the
[END] key until the phone switches on.
2. To switch the phone off, hold down the [END] key until the power-off image displays.
Making a Call
1. Enter a phone number including the area code.
2. Press the
[SEND] key to call the number.
3. When finished, press the [END] key.
Answering a Call
1. When the phone rings and the phone icon flashes on the screen, press the [SEND] key
or the left soft key to answer.
2. If the Any Key menu option (Menu 5.5.2.1), has been set, any key press will answer a call
except for the [END]key or the right soft key.
3. End the call by pressing the [END] key.
Note: A fter the call ends, the phone will go to Idle screen.

Making an international call
1. Press and hold the key for the international prefix. The '+' character automatically
selects the international access code.
2. Enter the country code, area code, and the phone number.
3. Press [send] key to call the number.
Lost Mobile Tracker (LMT)
The LMT feature of this phone provides you with the ability to have a tracking system in
place for your mobile in case you lose or misplace it.
The moment an un-authorized user wants to use your phone by inserting another SIM card, a
SMS is triggered from your phone and is sent to your pre-defined numbers.
1. Setting the LMT ON [Menu -> Settings -> Security]
Select Menu -> Press 5 to go to Settings
]
Press 7 to go to Security
]
Press 5 to select Lost Mobile Tracker
]
Select Change settings & input default LMT code
]
2. Change LMT code
Allows you to change LMT code of your phone
]
3. Number for LMT
You can input your name and two mobile numbers, on which you want the information
]
(SMS) to be sent in case of unauthorized use.
Note
I n case you want to use your phone with some other SIM card, make sure to set the LMT feature
]
OFF.
I t is recommended to enter the Number for LMT with the country code followed by mobile
]
number.
Default LMT code is '0000'.
]
Inserting the SIM Card and Charging the Battery
Inserting the SIM card Illustrations
When you subscribe to a cellular network, Open battery cover
1 2
you are provided with a SIM card loaded
Insert your SIM
3
with your subscription details, such as
4 Close the battery cover
your PIN, any optional services available
Charge your battery
5
and many others.
Important!
The SIM card and its contacts can be
]
easily damaged by scratches or bending,
so be careful when handling, inserting or
removing the card. Keep all SIM cards out
of the reach of small children.
USIM is not supported in this phone.
]
1 2 3
4 5
Fully charge the
battery before using it for the first time.
Menu and Options
Your phone offers a set of functions that allow you to customize it. These functions are
arranged in menus and sub-menus, accessed via the left and right soft keys.
The label on the bottom of the display screen immediately above the soft keys indicates their
current function.
Menu Menu Favourites Favourites
Press the right soft key to
Press the left soft key to
access the available
access the available Menu.
Favourites.
How to set the tone
Ringtone
1. Press the left soft key [Menu] and select [Settings - Profiles] using the up/down
navigation keys.
2. Select [Personalise] and choose Ringtones menu.
3. Press the left soft key [OK] and then you can set the desired ringtone by pressing Select.
Tip
I f you want to change your ringer to vibrate, select Vibrate mode or press and hold the
]
idle screen.
Ringtone/Keypad/Message/Call alert tones and volumes
You can select Ringtone/Keypad/Message/Call alert tones and volumes.
You can change the sound that will occur when a key is pressed, or volume level.
[Menu - Settings - Profiles - Personalise]
Phone Components
Earpiece
Charging and Ear phone port
Display screen
: Send key
You can dial a phone number
and answer incoming calls.
Alphanumeric keys
These keys are used to dial a
number in standby mode and to
enter numbers or characters in
edit mode.
Microphone
Entering Text
You can enter alphanumeric characters by using the phone's keypad. To change modes,
press the key.
T9 Mode
This mode allows you to enter words with only one keystroke per letter. Each key on the
keypad has more than one letter. The T9 mode automatically compares your keystrokes
with an internal linguistic dictionary to determine the correct word, thus requiring far
fewer keystrokes than the traditional ABC mode.
ABC Mode
This mode allows you to enter letters by pressing the key labeled with the required
letter once, twice, three or four times until the letter is displayed.
123 Mode (Numbers Mode)
Type numbers using one keystroke per number.
Symbol Mode
This mode allows you to enter special characters by pressing
Menu tree
1. Contacts 3. Call history 5. Settings
1.1 Search 3.1 All calls
1.2 New contact 3.2 Missed calls
1.3 Speed dials 3.3 Dialed calls
1.4 Copy all 3.4 Received calls
1.5 Delete all 3.5 Call duration
1.6 Memory status
key in
1.7 Information 4. Tools
4.1 Games
2. Messaging
4.2 FM Radio
2.1 New message 4.3 Calculator
2.2 Inbox 4.4 Stopwatch
2.3 Drafts 4.5 Unit Converter
6. Organizer (Case 1)
2.4 Outbox 4.6 World clock
2.5 Sent
2.6 Listen voice mail
2.7 Info messages
2.8 Templates
2.9 Settings
6. SIM Services (Case 2)
* Case 2: In case SIM
Display Information
Icon area
Text and graphic area
Menu Menu Favourites Favourites
Soft key indications
Soft keys
On-Screen Icons
Each of these keys performs
the functions indicated
The table below describes various display indicators or icons that appear on the phone's
by the text on the display
immediately above them. display screen.
Tells you the strength of the network signal.
Call is connected.
Shows that you are using a roaming service.
The alarm has been set and is on.
: End /Power key
Allows you to power the Tells you the status of the battery.
phone on or off, end calls, or
You have received a text message.
return to Idle screen.
You have received a voice message.
: Navigation key
Vibrate only menu in profile.
Use for quick access to phone
General menu in profile.
functions.
Outdoor menu in profile.
Vibrate mode key
Silent menu in profile.
Headset menu in profile.
You can view your schedule.
FM Radio
(This function may be different in different regions.)
1. Press the corresponding number key of a channel to store the selected radio station.
2. After presetting radio channels, you can listen to another channel by pressing the
corresponding number key.
3. You can access the following option menus by pressing the left soft key
[Options].
Edit channel: You can adjust frequency and channel 0.1 MHz at a time using the
]
Left/Right navigation keys and number keys.
Auto scan: If you turn "Auto Scan Now?" on, this automatically sets the radio
]
channel. When "Save this Station?" message pops up and you select Yes, the
selected frequency will be stored.
Reset channels: You can delete all channels you saved.
]
Listen via speaker: Select this to listen to the radio through the built-in speaker.
]
To turn off the speaker, select "Listen via wired headset" in the [Options].
key.
Quick feature reference
This section provides brief explanations of features on your phone.
Contacts
Menu 1
5.1 Profiles
5.2 Date & Time
Search You can Search for contacts in Phonebook.
5.3 Language
5.4 Display
Note:
Instant searching is available by inputting the initial letter of the name you
5.5 Call
want to search.
5.6 Auto keylock
5.7 Security New contact You can add phonebook entries by using this menu.
5.8 Power save
5.9 Network selection Speed dials Assign contacts to any of keys
5.0 Reset settings
5.* Memory status Copy all You can copy all entries from SIM card memory to Phone memory and
also from Phone memory to SIM card memory.
Delete all You can delete all entries from SIM card memory or Phone memory.
6.1 Alarm
6.2 Calendar
Memory status You can check free space and memory usage.
6.3 Memo
›
Information Service dial numbers: Access the list of service numbers assigned by
service provider safely.
›
Own numbers: You can save and check your own numbers in SIM card.
Services are also provided
›
Business card: This option allows you to create your own business
by the service provider
card featuring your name, mobile phone number and so on.
then Menu 6 will be SIM
Services and Organiser
will be under Menu
4.Tools.
to .
