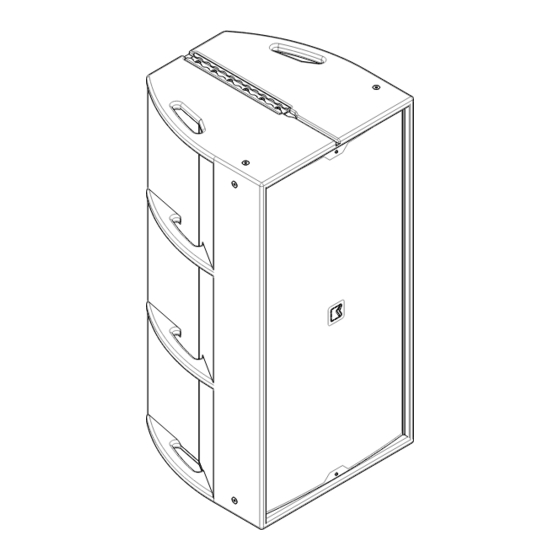

- Page 1 MONACO 215CX SP Full-range self-powered portable loudspeaker USER MANUAL...
-
Page 2: Safety Regulations
SAFETY REGULATIONS Please read this manual carefully and in its entire- The user must assume the responsibility for making ty. It contains important information regarding safety sure that the use of any rigging system and its com- issues, including guidelines for general safe use of ponents in any particular circumstance or venue con- rigging systems as well as advisories on government form to all applicable laws and regulations in force at... -
Page 3: Description Of The System
Monaco 215CX SP is a two-section self-powered some parts are made with curved wood, whereas system. With a nominal dispersion of 80° x 60° (H x... - Page 4 CABLING Only for the coaxial driver (high and mid-low) there is a passive cross-over to provide the most precise sound emission, in addition to the already present digital crossover set by the internal DSP. XOVER MF/HF It is enough to provide an analogue input signal and the required power supply for the system to be ready to use.
- Page 5 CONNECTORS The connections are made via the 3-pin XLR-fe- male or 1/4” TRS (phone Jack) connector. The polarity of the XLR connector is: • pin1: GROUND Connettore • pin2: IN(+) jack 6,35 mm • pin3: IN(-) Connettore maschio For the TRS connector (“Tip”, “Ring”, “Shield”) the polarity is: •...
- Page 6 AMPLIFICATION The amplifiers are directly integrated into the cabi- cable (type B). Before doing this connection, you need to download and install ArmoníaPlus, the amplifier’s net. The amplifier module is completely autonomous and designed to be immediately ready for use (plug & management software, as well as the Monaco 215 CX play) once connected to the mains power.
- Page 7 RIGGING Each Monaco 215CX SP element requires one or vibrations, winds and mounting procedures. The rig- more external rigging structures to support each sin- ging system shall allow also safe mounting and dis- gle element by its rail and the total weight of the clus- mounting operations and easy visual control.
-
Page 8: Overall Dimensions
OVERALL DIMENSIONS BOTTOM VIEW TOP VIEW Ø36 #3 M8 FIXING POINT #2 M8 FIXING POINT FRONT VIEW REAR VIEW SIDE VIEW #2 M8 FIXING POINT #2 M8 FIXING POINT (both sides) OUTLINE S.R.L. Tel. +39 030.3581341 www.outline.it Via Leonardo da Vinci, 56 Fax +39 030.3580431 25020 Flero (Brescia) Italy info@outline.it... -
Page 9: Technical Specifications
TECHNICAL SPECIFICATIONS PERFORMANCE SPECIFICATIONS 50 Hz - 20 kHz Frequency Response (-10 dB) 80° x 60° (H x V) Nominal Dispersion Type: Class D (digital) Type: Class D (digital) Input impedance: 4.5 kΩ balanced Input impedance: 4.5 kΩ balanced Rated Power: 2 x 1500 W EIAJ at 8 Ω Rated Power: 2 x 1500 W EIAJ at 8 Ω... - Page 10 APPENDIX - PERIODIC CONTROLS All the loudspeakers, before the shipment, are ful- aged during the shipment. Periodic controls shall be ly tested at the end of the production line, but before performed at regular time intervals. The following ta- the system is installed an overall check shall be per- ble represents an ideal check list and shall be com- formed to ensure that the system has not been dam- pleted with the external rigging elements.
- Page 11 NOTES OUTLINE S.R.L. Tel. +39 030.3581341 www.outline.it Via Leonardo da Vinci, 56 Fax +39 030.3580431 25020 Flero (Brescia) Italy info@outline.it...
- Page 12 Outline carries out on-going research for product improvement. New materials, manufacturing methods and design upgrades are introduced to existing products without prior notice as a routine result of this phi- losophy. For this reason, any current Outline product may differ in some aspect from its description, but will always equal or exceed the original design specifications unless otherwise stated.
