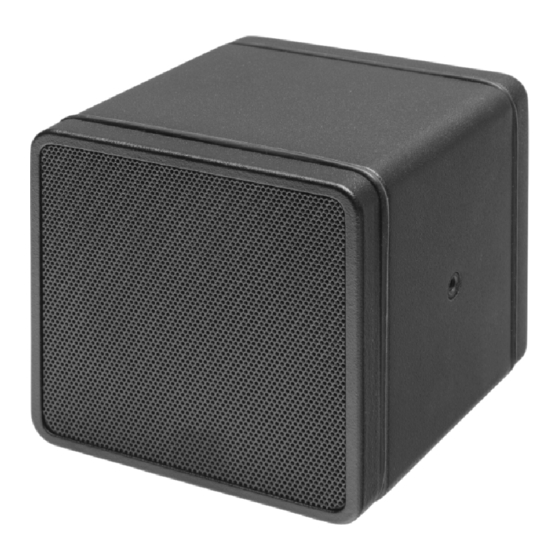

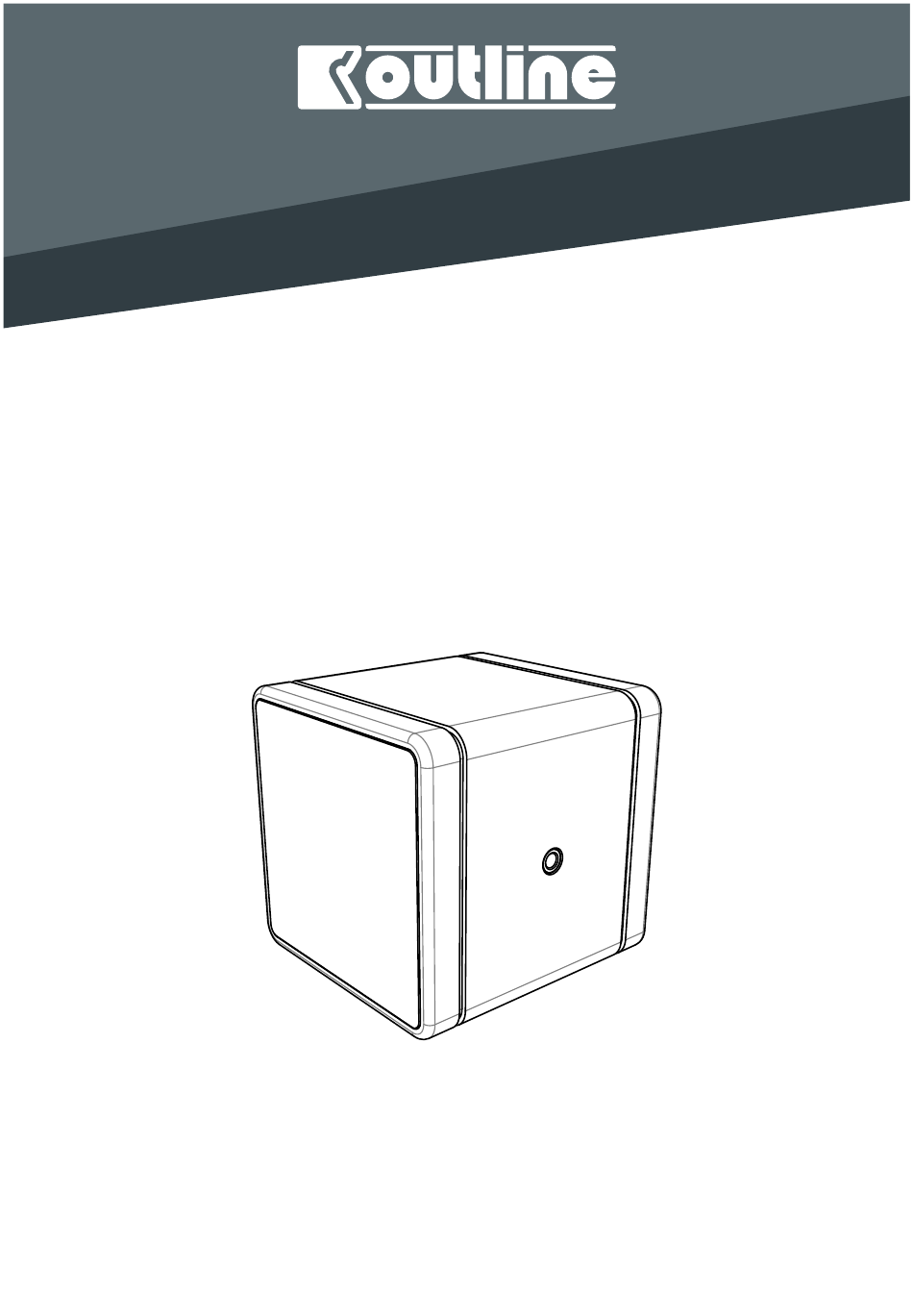

- Page 1 CHARLIE 4 Miniature Loudspeaker USER MANUAL...
-
Page 2: Safety Regulations
SAFETY REGULATIONS In order to avoid risks for the user’s and other be switched on after having connected and people’s safety, as well as annulling the warranty, switched on all the other components of the it is advisable to read the suggestions in this section sound reinforcement/recording system, to for correct use of the product. -
Page 3: System Description
Only high quality Italian made components are used Euroblock connector. in this low distortion loudspeaker. AMPLIFIER CONNECTION Charlie 4 is using one driver. The unit requires The system shall be used with the suggested just one amplification channel and the connection is Outline amplifier and presets DSP. -
Page 4: Rigging Instructions
RIGGING INSTRUCTIONS This system offers two M6 threaded inserts, one The bracket has rails in correspondence with two on each side, which allow to properly use rigging inserts to perfectly fit the cabinet in any case and a bracket to hang the speaker. M10 threaded insert for stand mounting. -
Page 5: Overall Dimensions
OVERALL DIMENSIONS M6 FIXING POINT (also on opposite side) OUTLINE S.R.L. Tel.: +39 030.3581341 www.outline.it Via Leonardo da Vinci, 56 Fax +39 030.3580431 25020 Flero (Brescia) Italy info@outline.it... -
Page 6: Technical Specifications
TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS Frequency response (-10dB) 110 Hz - 17 kHz Nominal Dispersion Axisymmetric 60° (average above 3 kHz) Impedance (Nom/Min) 16 Ω / 12.7 Ω Watt AES (Continuous/Peak) 70 W / 280 W Maximum SPL Output * 118 dB * calculated using +12 dB Crest Factor signal (AES 2012), Free Field PHYSICAL Component... - Page 7 APPENDIX - PERIODIC CONTROLS All the loudspeakers, before the shipment, are damaged during the shipment. Periodic controls fully tested at the end of the production line, but shall be performed at regular time intervals. The before the system is installed an overall check shall following table represents an ideal check.
- Page 8 Outline carries out on-going research for product improvement. New materials, manufacturing methods and design upgrades are introduced to existing products without prior notice as a routine result of this philosophy. For this reason, any current Outline product may differ in some aspect from its description, but will always equal or exceed the original design specifications unless otherwise stated.
