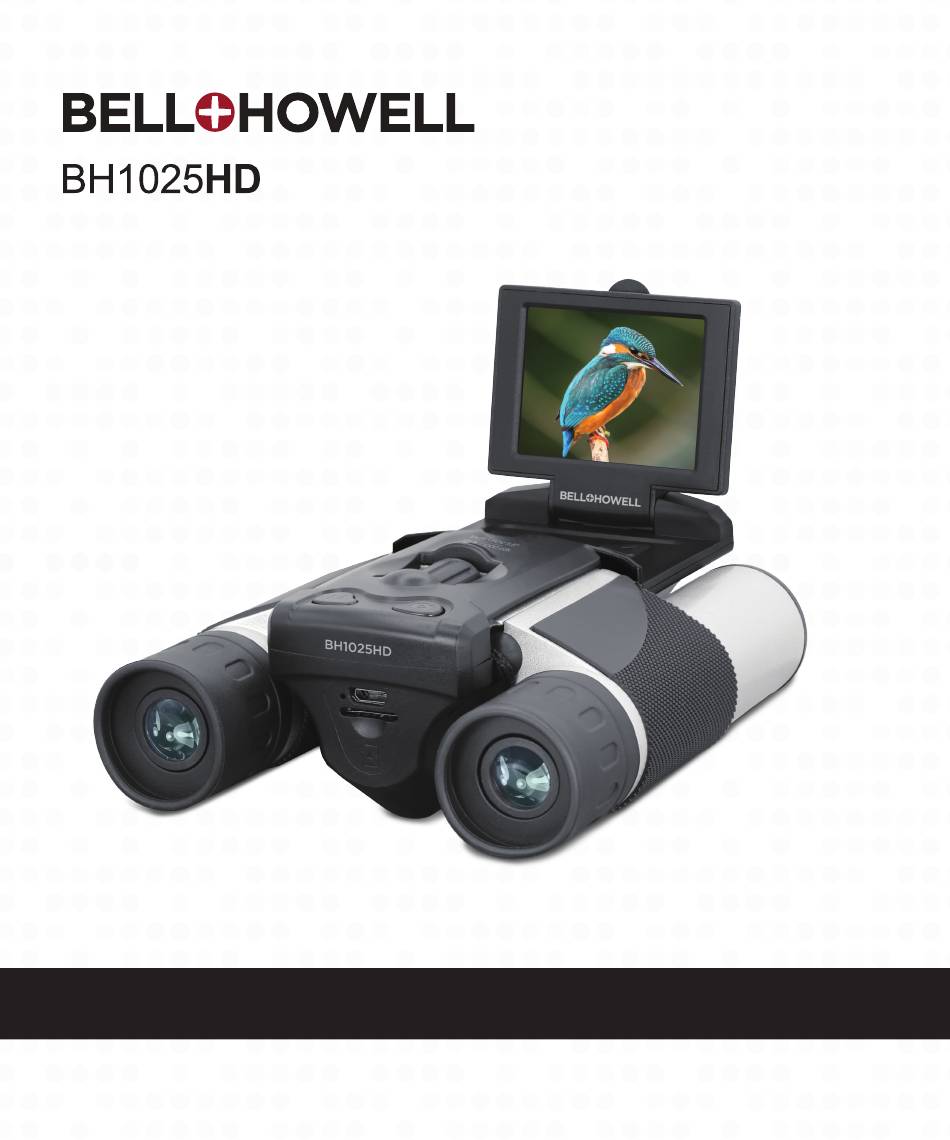

- Page 1 BH1025HD User’s Manual...
- Page 2 1. About Your Binoculars Binoculars About this Manual Congratulations on purchasing the Bell+Howell BH1025HD Digital Camera Binoculars! The contents of this manual are subject to change without notice. Note that the example screens and product illustrations shown in this User’s Guide may differ somewhat from the screens and configuration of the actual camera.
- Page 3 1. About Your Binoculars Binoculars accordance with provided instructions and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. FCC: SAR standard Value: 1.6 W/Kg, Maximal Measure: 0.4 W/kg CE Mark Warning This is a Class B product, in a domestic environment, this product may cause...
- Page 4 1. About Your Binoculars Binoculars and possibly cause an explosion. • When the camera is used for an extended period of time, it is normal for the camera body to feel warm. • Download all pictures and remove the battery from the camera if you are going to store the camera for a long period of time.
- Page 5 1. About Your Binoculars 1.1 Digital Camera Binocular Interface 1. LCD Screen 2. Rubber Grip 3. Adjustable Eyepiece 4. Eyepiece 5. Memory Card Slot 6. USB Port 7. Status LED 8. Objective Lens 9. Camera Lens...
- Page 6 1. About Your Binoculars 1. Left | Zoom In Button 2. Reset 3. Right | Zoom Out Button 4. Focus Knob 5. OK | Photo Button 6. Speaker 7. Microphone 8. Tripod Mount 9. Mode Button 10. Menu Button 11. Power Button...
- Page 7 1. About Your Binoculars 1.2 Button Function Description Function Description Power Press and hold for 3 seconds to power on and off. Tap to cycle between Photo, Video and Playback Mode modes. Menu Tap to access and exit all menus and submenus. In Video or Photo: Press and hold to zoom in.
-
Page 8: First Use
2. First Use 2. First Use 2.1 Inserting the Memory Card Insert the included memory card to record and store your videos and photos. When the battery is low, media stored on the memory card will not be erased. Please insert the memory card by following the steps below: Insert the memory card (A) into the memory card slot (B). - Page 9 2. First Use 2.2 Charging the Battery Connect your camera to the included AC adaptor with the USB cable provided for charging. Insert the small end of the USB plug into the camera’s port, and the larger end in to the included AC adaptor. 2.3 Powering the Camera On/Off Press and hold POWER button for 3 seconds to power the camera on.
- Page 10 2. First Use 2.6 Photo Mode Press the MODE button to switch to Photo Mode. The meaning of each icon within Video Mode is explained in the table below: 1) Photo Mode 2) Memory Card Loaded 3) Self Timer 4) Photo Size (Resolution) 5) Photos Remaining 6) Photo Burst 7) Zoom Level...
- Page 11 3. Using the Binoculars 3. Using the Binoculars 3.1 Adjusting Eye Piece Distance 1. Hold the binoculars to your eyes in the regular viewing position. 2. Grasp each barrel A and B firmly. Move the barrels closer together or further apart until you see a single circle through the eye pieces. 3.
-
Page 12: Using The Binoculars
3. Using the Binoculars 3.3 For Glasses Wearers For glasses wearers, fold down the rubber flaps around the eye piece (A) and (B) to make your glasses closer to the eyepieces for a better view. 3.4 Maintenance and Cleaning • Only use a clean microfiber cloth to clean fingerprints and dust from the lenses. - Page 13 3. Using the Binoculars 3.5 Quick Tips on Using the Camera 3.5.1 Mode Options With the camera powered on, press the MODE button to select the mode you want to use: PHOTO Mode, PLAYBACK Mode and VIDEO Mode. 3.5.2 Photo Mode The camera automatically enters on PHOTO Mode when powered on.
- Page 14 4. Using Camera / Change Settings 4. Using the Camera and Changing Settings 4.1 Photo Shooting Power the camera on and it will be ready to take pictures right away. 1. You can either look through the binocular eyepieces or line up your shot by looking at the LCD screen to see what is in the shot.
- Page 15 4. Using Camera / Change Settings 4.3 Settings Menu All camera settings can be changed in the Settings menu. Power the camera on and press the MENU button to enter the Settings menu. The settings menu will be displayed on the screen. 4.3.1 Photo Size (Resolution) This function sets the photo resolution.
- Page 16 4. Using Camera / Change Settings 4.3.4 Video Size (Resolution) Your camera has a number of preset resolutions. 1. In Photo or Video Modes press the MENU button. 2. Select ‘Video Size’ using the LEFT or RIGHT buttons and press the PHOTO button to enter the ‘Video Size’...
- Page 17 4. Using Camera / Change Settings 4.3.7 Time Stamp This setting allows you to imprint a date & time onto your recorded video files. Once a video file is recorded with the imprint, the imprint cannot be removed. 1. In Photo or Video Modes press the MENU button. 2.
- Page 18 4. Using Camera / Change Settings 2. Select ‘Auto Power Off’ using the LEFT or RIGHT buttons and press the PHOTO button to enter the ‘Auto Power Off’ submenu. 3. Press the LEFT or RIGHT buttons to navigate the menu, and press the PHOTO button to confirm the selected option (Off, 1 Minute, 3 Minutes, 5 Minutes).
- Page 19 4. Using Camera / Change Settings 4.3.14 Date/Time Set This function allows you to set the current Date and Time on your recorded video clips and captured photos. 1. In Photo or Video Modes press the MENU button. 2. Select ‘Date/Time Set’ using the LEFT or RIGHT buttons and press the PHOTO button to enter the ‘Date/Time Set’...
- Page 20 4. Using Camera / Change Settings 4.4 Playback Mode Videos and photos captured on your camera can be easily played back. Power the camera on and press the MODE button to switch to Playback Mode. 1. Press the MODE button to enter Playback Mode. Your last recorded image or video will appear on the screen when fist entering playback mode.
- Page 21 5. Connecting 5. How to Connect to Your Computer Connect the small end of the USB cable to the USB port on the camera. Then connect the large end of the USB cable to a USB port on your computer. If the camera is off, power it on and the LCD screen will show a USB icon on the screen.
- Page 22 6. Appendix 6. Technical Specifications BH1025HD Model Number Magnification 25mm Objective Lens Diameter Roof Prism Optical Design 5.7° / 314 ft. @ 1000 yds Field of View 2.5mm Exit Pupil Diameter Eye Relief Minimum Focus Distance JPEG: 48MP • 30MP • 25MP • 20MP • 10MP •...
- Page 23 Distributed under license of BHH LLC in the United States by: Elite Brands Inc. 40 Wall Street, 61st Floor, New York, NY 10005 USA Tel: 800-441-1100 www.elitebrands.com Copyright © 2023 Elite Brands Inc. If you’re having difficulties with your camera, or would like further assistance, please call our toll-free technical support hotline at 800-441-1100.
