Summary of Contents for Cortelco ez TOUCH

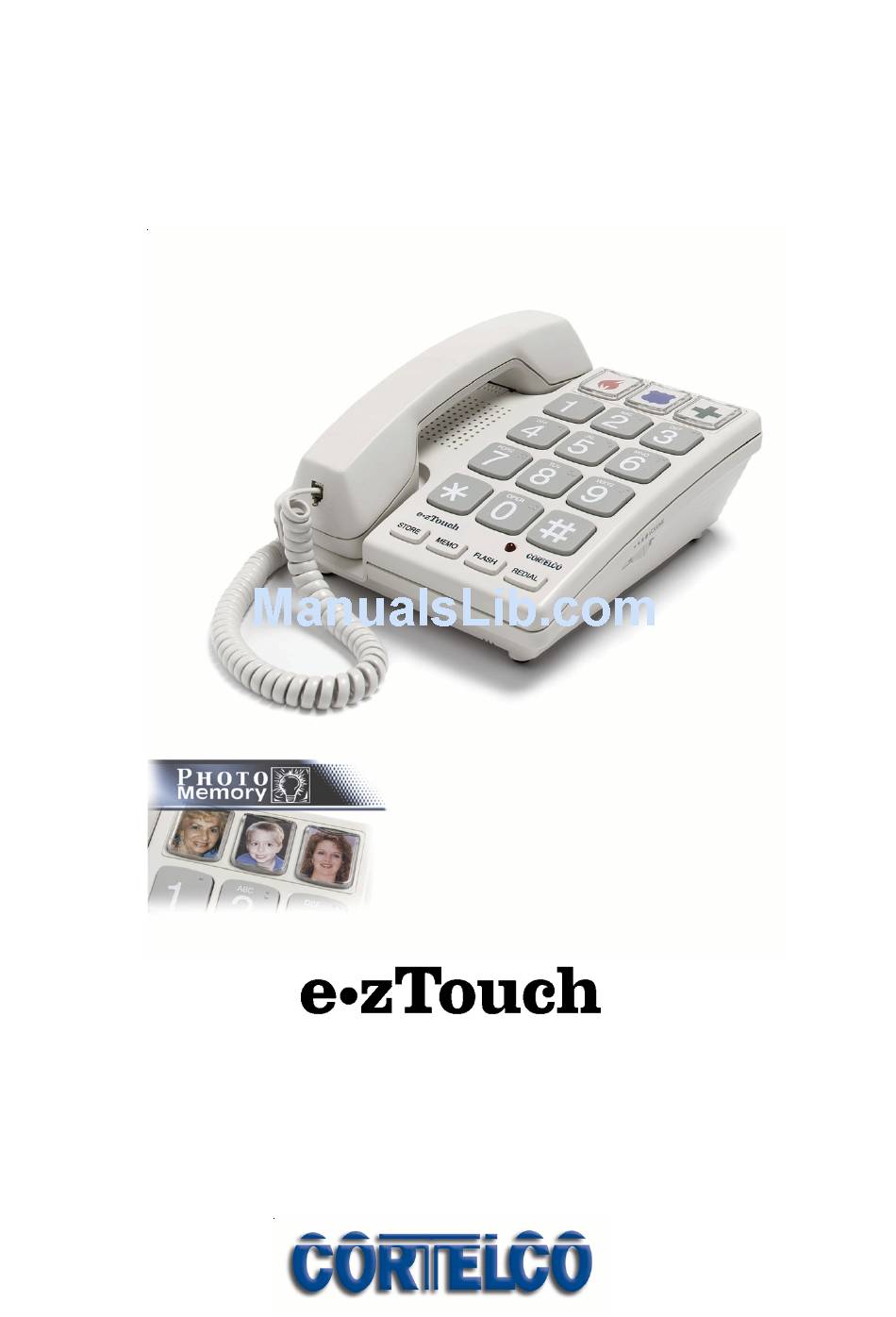

- Page 1 WNER’S NSTRUCTION ANUAL ULTI- EATURE ELEPHONE...
- Page 2 TOUCH MULTI-FEATURE TELEPHONE We want you to know all about your new ez TOUCH Telephone, how to install it, the features it provides, and the services you can expect from its use. We have included this information in your Owner’s Instruction Manual.
-
Page 3: Table Of Contents
IMPORTANT SAFETY INSTRUCTIONS ... 2 TELEPHONE USAGE ... 4 SETUP/INSTALLATION ... 4 WALL MOUNT INSTRUCTIONS ... 5 TELEPHONE PART IDENTIFICATION ... 6 TELEPHONE FEATURES ... 7 PULSE AND TONE DIALING ... 7 RECEIVING A PHONE CALL ... 7 PLACING A PHONE CALL ... 7 REDIAL BUTTON ... -
Page 4: Important Safety Instructions
Unplug this product from the wall outlet before cleaning. Use a damp cloth for cleaning. Do not use liquid or aerosol cleaners. Do not use the telephone near water. For example, do not use near a bathtub, wash bowl, kitchen sink, laundry tub, swimming pool, or in a wet basement. - Page 5 Avoid using a telephone during a local thunderstorm. There may be a remote risk of electrical shock from lightning. Do not use a telephone to report a gas leak in the vicinity of the leak. Unplug the telephone from the wall outlet and refer servicing to qualified service personnel under the following conditions: •...
-
Page 6: Telephone Usage
Use the existing line cord supplied to connect the LINE jack of your answering machine to the wall modular line jack. • Use the new line cord supplied to connect the telephone’s jack of your new phone to the PHONE jack of your answering machine. •... -
Page 7: Wall Mount Instructions
WALL MOUNT INSTRUCTIONS Before mounting, select a wall with sufficient strength. Install wall mount bracket in wall mount position. Connect the line cord. See Step 1 on preceding page for specific instructions. Push out the handset hook and reattach in opposite direction for the wall mount position, plug the coiled cord into the handset, and then plug the other end of the cord into the base. -

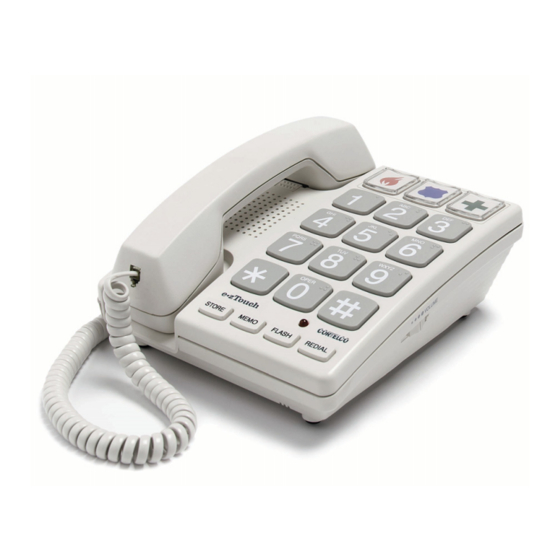

Page 8: Telephone Part Identification
ELEPHONE One Touch PHOTOMemory Dial Keys With Braille Handset Volume Control Visual Ring Indicator Redial Button Flash Button DENTIFICATION Memo Button Store Button Ringer Volume Control Handset Cord Jack Telephone Line Jack Pulse/Tone Switch... -
Page 9: Telephone Features
If you are unsure which system you have, set the switch to the TONE position. Lift the handset. When you get a dial tone, dial a telephone number. If the dial tone continues, move the switch to PULSE, and then dial the telephone number again. -
Page 10: Flash Button
RINGER VOLUME CONTROL The Ringer Volume switch allows you to turn the telephone ringer Off, or to set it to ring at Lo or Hi volume. You can dial or answer calls with the ringer off. Other telephones in your home will still ring;... -
Page 11: Telephone Service Problems
NO DIAL TONE Wire is disconnected at telephone jack or at wall jack. Test the telephone in a different wall jack. If it works, the first jack may be defective. HAVE DIAL TONE BUT CANNOT DIAL OUT Check if the PULSE/TONE switch is at the correct position. -
Page 12: Telephone Repair
DO NOT ATTEMPT TO REPAIR THIS PRODUCT YOURSELF. Telephones manufac- tured by CORTELCO must be returned to us for repair. You can return your telephone to CORTELCO for repair or replacement in accordance with our LIMITED WARRANTY. CORTELCO warrants THIS PRODUCT against defects in material and workmanship in accordance with our LIMITED WARRANTY. - Page 13 The Ringer Equivalence Number, which is used to determine the number of devices you may connect to your phone line, indicates the amount of power that your telephone draws from the telephone company line during ringing. If you have more than one...
-
Page 14: Index
A, B, C Adjusting Volume Braille Characters Dialing Mode Data Port E, F, G, H FCC Information Features Flash Erasing Memory Handset Volume I, J, K, L, M Maintenance Making Calls Memo Button N, O, P One-Touch Memory 8 Part Identification Placing Calls Pulse Dialing NDEX... -
Page 15: Limited Warranty
IMITED ARRANTY If you purchased this product new in the U.S. or Puerto Rico, CORTELCO warrants it against defects in material and workmanship for a period of one (1) year from the date of original purchase. This warranty is in lieu of all other express warranties.
