Summary of Contents for Kinghome KM24H4O

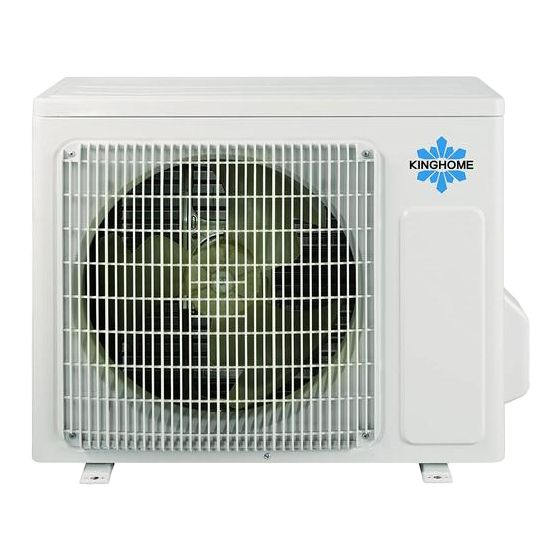

- Page 1 AIR CONDITIONER INSTRUCTION MANUAL MODEL:KM24H4O KM30H4O KM36H4O...
-
Page 2: Table Of Contents
In line with the company’s policy of continual product improvement, the aesthetic and dimensional characteristics, technical data and accessories of this appliance may be changed without notice. CONTENTS GENERAL INFORMATION Conformity And Range The Instructions Before Use Name of Parts Technical Data Outdoor Unit Working Temperature Range Electrical Connections... -
Page 3: Conformity And Range
Explanation of Symbols Indicates a hazardous situation that, if not avoided, will DANGER result in death or serious injury. Indicates a hazardous situation that, if not avoided, could WARNING result in death or serious injury. Indicates a hazardous situation that, if not avoided, may CAUTION result in minor or moderate injury. -
Page 4: The Instructions Before Use
THE INSTRUCTIONS BEFORE USE GENERAL INFORMATION WARNING When having a burning smell or The power supply must adopt the Never cut off or damage power ★ ★ ★ smoke,please turn off the power special circuit that with air switch cables and control wires. If the supply and contact with the ser- protection and assure it has enou- power cable and signal control... -
Page 5: Name Of Parts
NAME OF PARTS GENERAL INFORMATION KM24H4O、KM30H4O WARNING Be sure to cut off the power supply before cleaning the air conditioner; otherwise electric shock might happen. Wetting of air conditioner may cause the risk of electric shock. Make sure not to wash your air conditioner in any case. -
Page 6: Technical Data
TECHNICAL DATA GENERAL INFORMATION MODE KM24H4O Electrical data Electricity supply 208/230V,60Hz Fuse or air switch Minimum power cord section Size and clearance TECHNICAL DATA GENERAL INFORMATION KM30H4O MODE Electrical data Electricity supply 208/230V,60Hz Fuse or air switch Minimum power cord section... -
Page 7: Electrical Connections
ELECTRICAL CONNECTIONS INSTALLER KM24H4O、KM30H4O、KM36H4O 1. Remove the handle at the right side plate of the outdoor 2. Remove the cable clamp, connect the power con unit (one screw). -nection cable with the terminal at the row of conn -ection and fix the connection. The fitting line distr 3. - Page 8 ELECTRICAL CONNECTIONS INSTALLER KM30H4O OUTDOOR UNIT INDOOR UNIT A INDOOR UNIT B INDOOR UNIT D IND O OR UNIT C KM36H4O OUTDOO R UNIT INDOOR UNIT A INDOOR UNIT B INDOOR UNIT C INDOOR UNIT D INDOOR UNIT E...
-
Page 9: Installing The Outdoor Unit
INSTALLING THE OUTDOOR UNIT INSTALLER Location Caution: Installation Must be Performed in Use bolts to secure the unit to a flat, solid floor. Accordance with the NEC/CEC by Authorized When mounting the unit on a wall or the roof, make Personnel Only. -
Page 10: Maintenance
Contact service center before installation to avoid the malfunction due to unprofessional installation. When picking up and moving the units, you must be guidedby trained and qualified person. Ensure that the recommende dspace is left around the appliance. KM24H4O KM30H4O 50cm... -
Page 11: Check After Installation
CHECK AFTER INSTALLATION INSTALLER Check Items Problems Owing to Improper Installation Is the installation reliable? The unit may drop, vibrate or make noises May cause unsatisfactory cooling (heating) Has the gas leakage been checked? effect Is the thermal insulation of the unit May cause condensation and water dropping sufficient? Is the drainage smooth? - Page 12 66129925514...
