LHFD C2010001 Assembly Instructions Manual

Hall tree
Hide thumbs

Advertisement

Quick Links

Download this manual
L
H
EGACY
OME
F
D
URNISHINGS &
ECOR
Assembly Instructions
Instrucciones de Ensamblaje
120mns
SAVE THESE INSTRUCTIONS
GUARDE ESTAS INSTRUCCIONES
Do Not Return!
No Vuelvas!
Email or call customer service for help first.
Envie correo electrónico o llame al servicio para
obtener ayuda primero.
1-972-395-8993
Monday-Friday 9am - 4pm CST
help@legacyhfd.com

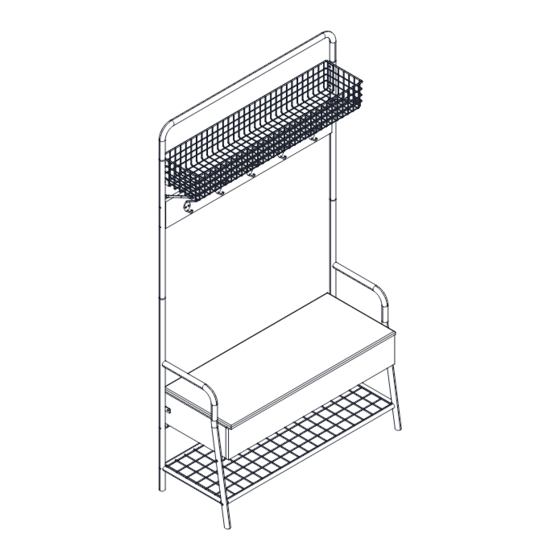

Hall Tree
Perchero
C2010001

Advertisement

loading
Need help?

Need help?

Do you have a question about the C2010001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LHFD C2010001

Summary of Contents for LHFD C2010001

  • Page 1 Assembly Instructions Instrucciones de Ensamblaje 120mns Hall Tree SAVE THESE INSTRUCTIONS Perchero GUARDE ESTAS INSTRUCCIONES C2010001 Email or call customer service for help first. Envie correo electrónico o llame al servicio para Do Not Return! obtener ayuda primero. No Vuelvas! 1-972-395-8993 Monday-Friday 9am - 4pm CST help@legacyhfd.com...
  • Page 2 EGACY URNISHINGS & ECOR WARNING This product can expose you to chemicals including Formaldehyde, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/furniture ADVERTENCIA Este producto puede exponerlo a sustancias quím icas, incluyendo el formaldehído, el cual es conocido en el estado de California como causante de cáncer, defectos de nacimiento u otros daños reproductivos.
  • Page 3 EGACY URNISHINGS & ECOR Helpful advice Consejos útiles 1. Follow the assembly instructions carefully. 1. Siga a tentamente las instrucciones de montaje. 2. Check to ensure all parts, fasteners and hardware 2. Asegúrese de que la caja contiene todas las piezas, are present.
  • Page 4 EGACY URNISHINGS & ECOR Parts list/Lista de piezas...
  • Page 5 EGACY URNISHINGS & ECOR Hardware/Lista de materiales ITEM IMAGE DESCRIPTION DESCRIPCIÓN QUANTITY Ø7.8×30 mm Wood dowel Ø7.8 x 30mm Perno madera Perno metálico Cam bolt Bloqueo metalico Cam lock M6×55 mm Hexagon bolt M6×55 mm Tornillo hexagonal Crosshead nut Tuerca Hinge Bisagra Φ4×14 mm Screw...
  • Page 6 EGACY URNISHINGS & ECOR Hardware/Lista de materiales ITEM IMAGE DESCRIPTION DESCRIPCIÓN QUANTITY M6×15 mm Hexagon bolt M6 x 15mm Tornillo hexagonal M6×25 mm Hexagon bolt M6 × 25mm Tornillo hexagonal M6×40 mm Hexagon bolt M6 × 40mm Tornillo hexagonal Φ4×14 mm Screw Φ4×14 mm Tornillo Φ4×12 mm Screw (Black) Φ4×12 mm Tornillo (Negro)
  • Page 7 EGACY URNISHINGS & ECOR Necessary tools/Herramientas necesarias Glue not enclosed (We recommend to apply some glue into holes before inserting wood dowels.) Colle non fournie (Nous vous recommandons d’appliquer quelques gouttes de colle dans les trous avant Glue not included ( We recommend to apply some glue into holes before inserting wood dowels .) d’y introduire les chevilles de bois.) Cola, no incluida (Le recomendamos colocarunas gotas de cola en los ori cios antes de insertar las clavijas de madera.) madera.)
  • Page 8 EGACY URNISHINGS & ECOR Attention: In order to help your assembly, do not lock the screw tightly until you have assembled all the other parts. Atención: Con el fin de facilitar su montaje, no apretar el tornillo firmemente hasta que haya ensamblad o todas las otras partes. Step 1/Paso 1 Insert 4 Wood dowels (A) into Divider (5).
  • Page 9 EGACY URNISHINGS & ECOR Step 3/Paso 3 Connect Divider (5) with Back panel (4), use 1 Cam lock (C). Conecte el Tablero vertical (5) en el Tablero posterior (4) con el Bloqueo metalico (C). C x 1 Step 4/Paso 4 Insert 4 Cam bolts (B) into Bottom (6), turn 180°, insert 6 Wood dowels (A) into Bottom (6).
  • Page 10 EGACY URNISHINGS & ECOR Step 5/Paso 5 Connect Bottom (6) with Back panel (4), use 4 Cam locks (C). Conecte el Tablero inferior (6) en el Tablero posterior (4), con 4 Bloqueos metálicos (C). C x 4 Step 6/Paso 6 Insert 2 Wood dowels (A) and 3 Cam bolts (B) into Gable left (2).
  • Page 11 EGACY URNISHINGS & ECOR Step 7/Paso 7 Connect Gable left (2), Gable right (3) with Back panel (4), Bottom (6), use 6 Cam locks (C). Conecte el Tablero inferior (6) y el Tablero posterior (4) en el Tablero izquierdo (2) y el Tablero derecho (3), con 6 Bloqueos metálicos (C).
  • Page 12 EGACY URNISHINGS & ECOR Step 9/Paso 9 Connect Front panel (7) with the assembly part, use 7 Cam locks (C). Conecte el Tablero frontal (7) al Tablero inferior (6), el Tablero izquierdo (2) y el Tablero derecho (3), con 7 Bloqueos metálicos (C).
  • Page 13 EGACY URNISHINGS & ECOR Step 11/Paso 11 Connect Left side frame (9) and 2 Plastic washers (V) with Connect tubes (11), use 2 Hexagon bolts (R). Connect Grid shelf (12) with Left side frame (9), use 2 Hexagon Bolts (R). Connect drawer with Left side frame (9), use 1 black Screw (T) and 1 Hexagon Bolt (Q).
  • Page 14 EGACY URNISHINGS & ECOR Step 13/Paso 13 Insert 2 Hinges (F) into Seat panel (1), use 4 Screws (G). Inserte 2 Bisagras (F) en el Panel (1), con 4 Tornillos (G). F x 2 G x 4 Step 14/Paso 14 Insert Spring hinge (O) into Seat panel (1), use 4 Screws (H).
  • Page 15 EGACY URNISHINGS & ECOR Step 15/Paso 15 Insert Spring hinge (O) into Back panel (4), use 4 Screws (H). Fasten 2 Hinges (F) into Back panel (4), use 8 Screws (G). Insert 2 Crash pads (I) into the edges of Front panel (7). Inserte la Bisagra de resorte (O) en el Tablero posterior (4), con 4 Tornillos (H).
  • Page 16 EGACY URNISHINGS & ECOR Step 17/Paso 17 Insert Connect tube (17) into Connect tubes (13) (14). Connect Connect tube (17) with Connect tubes (13) (14), use 4 Hexagon bolts (P). Hand tighten bolts with Hexagon wrench (U). Inserte el Tubo de conexión (17) en los Tubos de conexión (13) (14), con 4 Tornillos hexagonales (P). Conecte el Tubo de conexión (17) en los Tubos de conexión (13) (14), cerrarlos bien con la Lalve Allen (U).
  • Page 17 EGACY URNISHINGS & ECOR Step 19/Paso 19 Fasten 2 Connect rods (15) to Wire basket (16), use 2 Hexagon bolts (P). Hand tighten bolts with Hexagon wrench (U). Fije 2 Líneas de conexión(15) en la Cesta metálica (16), con 2 Tornillos hexagonales (P), cerrarlos bien con la Lalve Allen (U).
  • Page 18 EGACY URNISHINGS & ECOR Step 21/Paso 21 Insert Connect tube (13) and Connect tube (14) into Left side frame (9) and Right side frame (10). Connect use 4 Hexagon bolts (P). Hand tighten bolts with Hexagon wrench (U). Conecte los Tubos de conexión (13) (14) al Marco izquierdo (9) y Marco derecho (10), con 4 Tornillos hexagonales (P), cerrarlos bien con la Lalve Allen (U).
  • Page 19 EGACY URNISHINGS & ECOR Step 23/Paso 23 Insert 1 Wall anchor (N) into the hole on the wall. Fasten1 Flat washer (M) and 1 Fabric strip (L) to the wall, use 1 Screw (J). Perfore un agujero en pared, Golpee un Expansión de plástico (N) en el agujero, bloquee la Arandeal palna (M), la Tira de teal (L) al pared con el Tornillo (J).
  • Page 20 EGACY URNISHINGS & ECOR Maximum weight capacities/Capacidades de carga máxima 11.5 kg 25 lbs. 68 kg 150 lbs. 6.8 kg 15 lbs. 6.8 kg 15 lbs. 18 kg 40 lbs. WARNING Please use your furniture correctly and safely. Improper use can cause safety hazards, or damage to your furniture or household items.

  • Page 21: Year Warranty

    EGACY URNISHINGS & ECOR 1 YEAR WARRANTY BASIC WARRANTY: Homestar® furniture is warranted by Homestar Corporation (Homestar) to the original purchaser for a period of one year from the date of purchase, subject to the following conditions and limitations. 1. Install and operate this item in accordance with the Installation and 6.
