Assembly Instructions
Instrucciones de Ensamblaje
120mns
SAVE THESE INSTRUCTIONS
GUARDE ESTAS INSTRUCCIONES
Do Not Return!
No Vuelvas!
Email or call customer service for help first.
Envie correo electrónico o llame al servicio para
obtener ayuda primero.
1-972-395-8993
Monday-Friday 9am - 4pm CST
help@legacyhfd.com

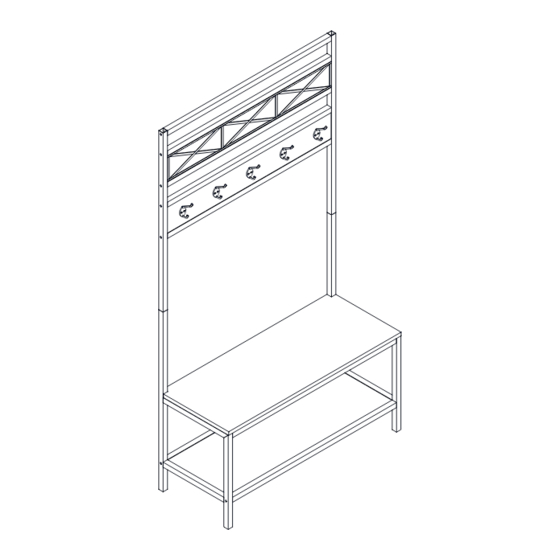

Hall Tree
Perchero
C1910129
