- Page 1 S-34 S-34 True-RMS AC/DC Clamp Meter S-34 S-34 True-RMS AC/DC Clamp Meter Professional AC/DC True RMS Clamp Meters...
-
Page 2: Safety Notes
Safety International Safety Symbols ● This symbol, adjacent to another symbol or terminal, indicates the user must refer to the manual for further information. ● This symbol, adjacent to a terminal, indicates that, under normal use, hazardous voltages may be present ●... -
Page 3: Meter Description

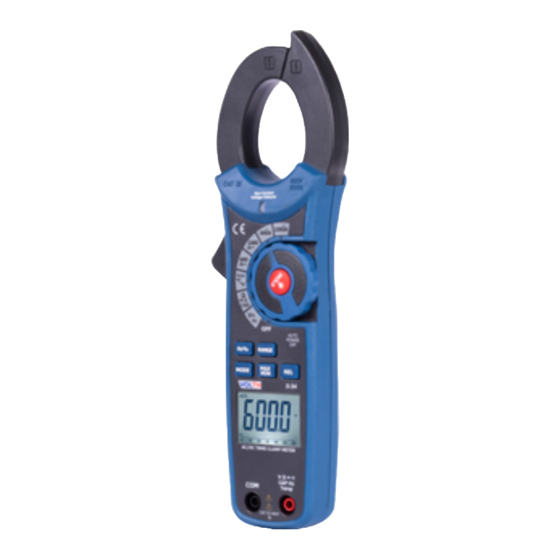

Meter Description 1. Current clamp 2. Non-contact AC voltage indicator light 3. Clamp trigger 4. Data Hold and Backlight button 5. Rotary Function swith 6. Hz% Hlod button 7. RANGE select button 8. Relative button 9. MIN/MAX Hlod button 10. MODE select button 11. - Page 4 Function Range & Resolution Accuracy (% of reading) AC Voltage (50-400Hz) 6.000 VAC ± (1.0 % + 5 digits) 60.00 VAC 600.0 VAC Resistance 600.0 Ω ± (1.5 % + 5 digits) 6.000 KΩ ± (1.5 % + 5 digits) 60.00 KΩ...
-
Page 5: Operation
Operation NOTICES : Read and understand all warning and precaution statements listed in the safety section of this operation manual prior to using this meter. Set the function select switch to the OFF position when the meter is not in use. AC/DC Current Measurements WARNING : Ensure that the test leads are disconnected from the meter before making... - Page 6 Black Black Probe Probe Probe Probe Forward test Reverse test For Continuity tests, if the resistance is < 40Ω, a tone will sound.Operation Capacitance Measurements WARNING : To avoid electric shock, disconnect power to the unit under test and discharge all capacitors before taking any capacitance measurements. Remove the batteries and unplug the line cords.
-
Page 7: Range Button
Non-Contact AC Voltage Measurements WARNING : Risk of Electrocution. Before use, always test the Voltage Detector on a known live circuit to verify proper operation 1. Touch the probe tip to the hot conductor or insert into the hot side of the electrical outlet. -
Page 8: Backlight Button
3. Press and hold the RANGE button for 2 seconds to exit the ManualRanging mode and return to AutoRanging. Backlight Button The backlight function illuminates the display and is used when the ambient light to too low to permit viewing of the displayed readings. Press the button for two seconds to turn the backlight on and press the button a second time to turn the backlight off.
