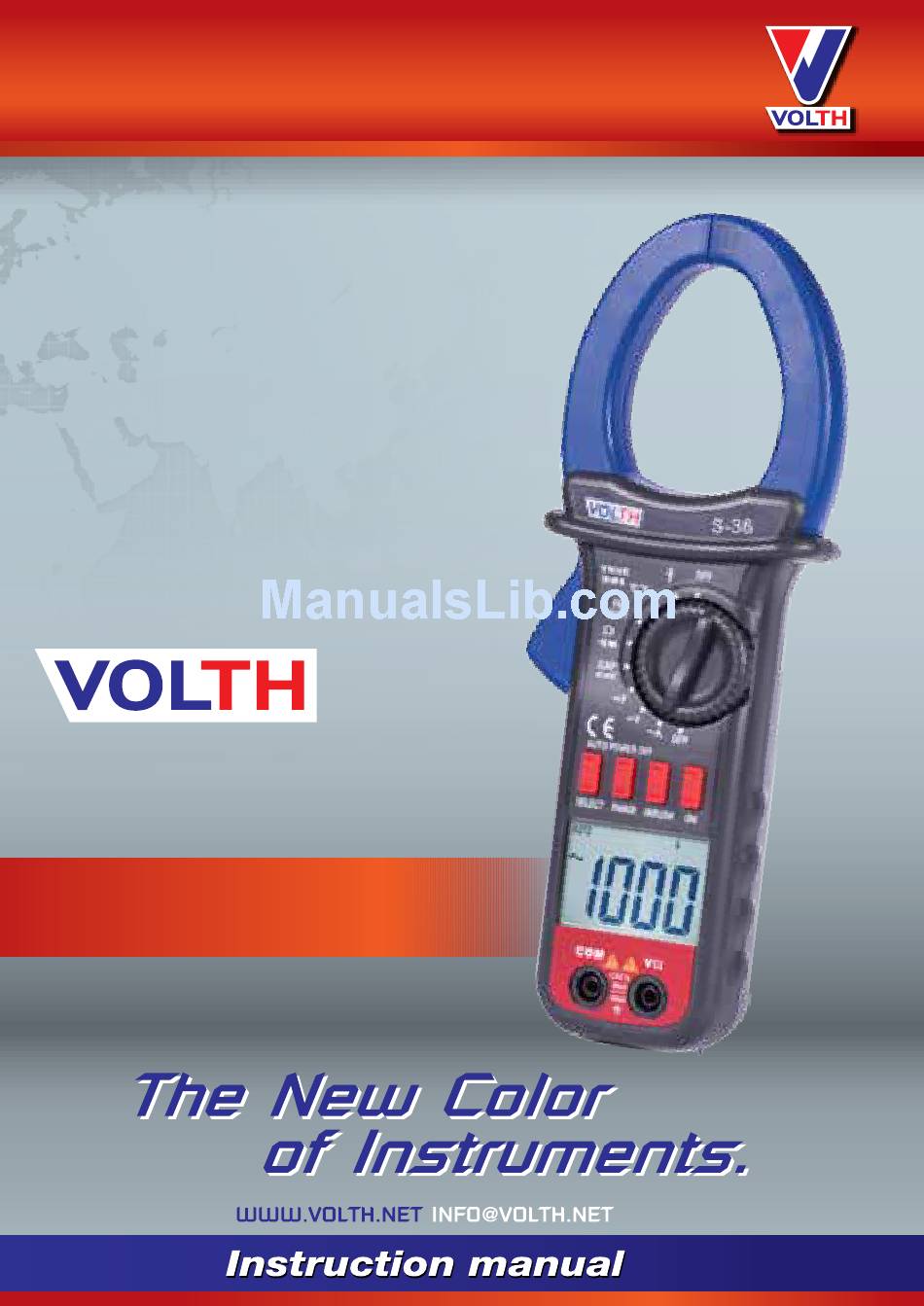

- Page 1 S-36 S-36 1000A AC Auto-range Clamp Meters S-36 S-36 1000A AC Auto-range Clamp Meters Make industrial job easy with In-rush current...
- Page 2 I. Introduction Welcome to use this product. The updated BM802A adopts high-performance MCU processor,it is Great Value as has high reliability,security, automatically setting range funcition,hand-held clamp meter etc.. the product has a large digital display, full range overload protection, data-hold function, undervoltage indication, auto shut off function, it has TRUE RMS measurement function which can accurately measure frequency voltage, non-sinusoidal voltage and inrush current measurement function which can measure inrush current about 80mS RMS, it also has temperature measurement...
- Page 3 3.1.5 Auto negative polarity indication: Displaying “-”. 3.1.6 Lack of battery power: Displaying “ ”. 3.1.7 Auto power OFF After turning on the instrument and without turning the function switch or pressing any button, the instrument will automatically enter into sleep mode after 10 minutes,to save battery power.when it is in the sleep mode you can press the SELECT key to wake up the instrument.
- Page 4 3.2.4 Resistance Ω Range Accuracy Resolution 400Ω ±(1%+3d) 0.1Ω 4kΩ 1Ω 40kΩ 10Ω 400kΩ 100Ω 4MΩ 1kΩ 40MΩ ±(1.5%+3d) 10kΩ Overload protection: effective value 220V 3.2.5 Capacitance Range Accuracy Resolution 10nF ±（2.5%+5d） 0.001nF 100nF ±（2.5%+5d） 0.01nF 0.1nF 10uF 100uF 10nF 1000uF 100nF 10mF...
- Page 5 3.2.8 Temperature Range Accuracy Resolution -50∼300 °C ±1.0%±5 1°C 301∼1000 °C ±1.0%±5 1°C -58∼600 °F ±1.0%±5 1°F 601∼1832 °F ±1.0%±5 1°F Temperature sensor: K WRNM- 010 bare contact thermojunction Overload protection：effective value 250V 3.2.9 Forward voltage drop of diode Displaying approximate forward voltage values of diode. Measuring condition: forward direct current is 1.5mA;...
- Page 6 4.2 Measurement of AC/DC voltage Turn the Rotary switch to “V”. Then plug black lead in “COM” socket, and plug red lead in “V/Ω” socket. connect the test lead with the two ends of the circuit and then directly read the reading on the LCD display NOTE : 1.
- Page 7 (7) Connect the test lead with the two ends of the diode, and then read the value of forward voltage drop value. (8) When the test lead is under reverse connection or open-circuit status, the display will display “OL”. NOTE : a) When the resistance measured is above 1MΩ, it needs several seconds for the reading to be stable, it is normal when measuring high resistance.
- Page 8 Caution : 1.even if there is no indication, voltage may still exist. Do not judge the wire whether threre is voltage absolutely throught the non contact voltage testing,the testing may be effected by many factors such as the socket design,the insulation thickness and types etc.
