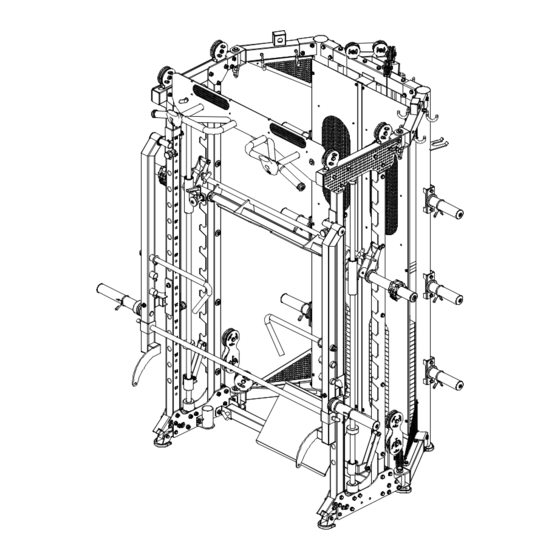

Brute Force UX1 Assembly Manual

Hide thumbs Also See for UX1:

Advertisement

Quick Links

Download this manual
ASSEMBLY
MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the UX1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Brute Force UX1

Summary of Contents for Brute Force UX1

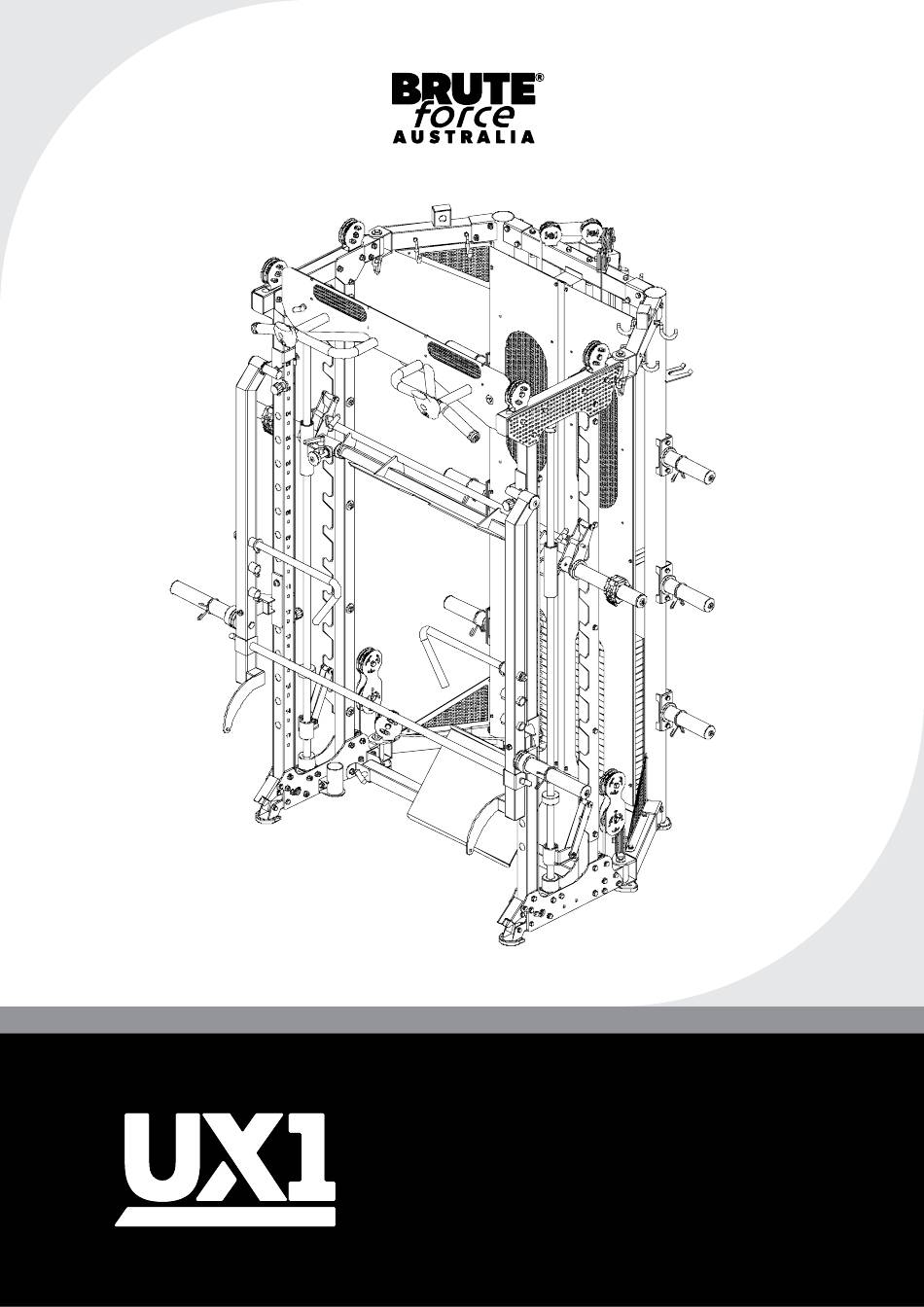

  • Page 1 ASSEMBLY MANUAL...
  • Page 2 INDEX Parts list 2 - 4 Assembly step 1 5 - 6 Assembly step 2 7 - 8 Assembly step 3 9 - 10 Assembly step 4 11 - 12 Assembly step 5 13 - 14 15 - 16 Assembly step 6 Assembly step 7 17 - 18 Assembly step 8...

  • Page 3: Parts List

    PARTS LIST Description Notes Lower connection frame Upper connection frame Upright frame right Hexagon bolt M10*75 Lock nut Flat washer Ø10 Upright frame left Upper side connection frame right Upper side connection frame left Side connecting frame right Front connecting frame right Inner shaft Ø20*85 Hexagon Bolt...
  • Page 4 PARTS LIST Description Notes Ø8 Flat washer Ø12*110 Crown release pin Weight stack rubber pad Ø60*Ø27*42 Weight stack 100kg Stainless steel guide rod Selector rod Ø25 Cylindrical pin 10*60 Magnetic pull pin 10*100 Weight stack pulley Hexagon bolt M10*95 Long smith machine guide rod Ø25*1850 Safety hook left Sliding tube left...
  • Page 5 PARTS LIST Description Notes Shield right M6*16 Hexagon bolt Flat washer Ø6 Shield rubber seal 32*1956 Upper left/lower right triangle trim board Hexagon bolt M8*20 Upper right/lower left triangle trim board Shield left Storage hook J hook right J hook left Safety arm right Safety arm left Foam roller anchoring system...

  • Page 6: Assembly Step

    ASSEMBLY STEP 1 Description Notes Lower connection frame Upper connection frame Upright frame right Hexagon bolt M10*75 Lock nut Flat washer Ø10 Upright frame left - 5 -...
  • Page 7 ASSEMBLY STEP 1 ASSEMBLY STEP 1 INSTRUCTIONS 1. Connect lower connection frame (1) with upright frame right (3) and upright frame left (7) with M10*75 hexagon bolt (4), Ø10 flat washer (6), M10 lock nut (5). 2. Connect upper connection frame (2) with upright frame right (3) and upright frame left (7) with M10*75 hexagon bolt (4), Ø10 flat washer (6), M10 lock nut (5).
  • Page 8 ASSEMBLY STEP 2 Description Notes Hexagon bolt M10*75 Lock nut Flat washer Ø10 Upper side connection frame right Upper side connection frame left Side connection frame right Front connecting frame right Inner shaft Ø20*85 Hexagon bolt M10*20 (thin head) Large flat washer Ø30*Ø10*3 Lifting bolt Side connecting frame left...
  • Page 9 ASSEMBLY STEP 2 ASSEMBLY STEP 2 INSTRUCTIONS 1. Connect side connecting frame right (10) with side connecting frame (16) and front connecting frame right (11) with hexagon bolt (13), large flat washer (14), inner shaft (12). 2. Assemble the side connecting frame right (10) and side connecting frame left (16) to upper frame right (3) and upper frame left (7) with M10*75 hexagon bolt (4), flat washer (6), lock nut (5).
  • Page 10 ASSEMBLY STEP 3 NOTE: (27) only goes through one plate (18) to secure smith machine holder (23). Description Notes Hexagon bolt M10*75 Lock nut Flat washer Ø10 Bottom plate Upright post 50*50*2 Stainless steel front post right 50*50*1.5 Upper frame plate Fixed plate Smith machine holder Pulley slider right...
  • Page 11 ASSEMBLY STEP 3 ASSEMBLY STEP 3 INSTRUCTIONS 1. Fix smith machine holder (23) to the bottom frame plate (18) with M10*25 hexagon bolt (27), Ø10 flat washer (6), and M10 lock nut (5). NOTE: M10*25 hexagon bolt (27) only goes through one bottom frame plate (18). 2.
  • Page 12 ASSEMBLY STEP 4 Description Notes Hexagon bolt M10*75 Lock nut Flat washer Ø10 Inner shaft Ø20*85 Hexagon bolt M10*20 (thin head) Large flat washer Ø30*Ø10*3 Hexagon bolt M10*70 Smith machine racking plate Guide rod holder Ø12*59.5 Inner shaft Quick release locking foot Front crown Crown fixed plate right Crown fixed plate left...
  • Page 13 ASSEMBLY STEP 4 ASSEMBLY STEP 4 INSTRUCTIONS 1. Quick release lock foot (36) is installed on the main frame with M8*16 hexagon bolt (40), Ø8 flat washer (41), Ø12*59.5 inner shaft (35). 2. Use M10*75 hexagon bolt (4), Ø10 flat washer (6), M10 lock nut (5) to fix guide rod holder (34) to main frame.
  • Page 14 ASSEMBLY STEP 5 Description Notes Flat washer Ø10 Weight stack rubber pad Ø60*Ø27*42 Weight stack 100kg Stainless steel guide rod Selector rod Ø25 Cylindrical pin 10*60 Magnetic pull pin 10*100 Weight stack pulley Hexagon bolt M10*95 - 13 -...
  • Page 15 ASSEMBLY STEP 5 ASSEMBLY STEP 5 INSTRUCTIONS 1. Assemble the stainless steel guide rod (45) through the weight stack rubber pad (43), weight stack (44) and fix to the main frame with M10*95 hexagon bolt (50) and Ø10 flat washer (6). 2.
  • Page 16 ASSEMBLY STEP 6 Description Notes Long smith machine guide rod Ø25*1850 Safety hook left Sliding tube left Smith machine bar Smith machine bar sleeve Sliding tube right Safety hook right Long smith machine guide rod rubber pad lower Ø60*Ø26*45 Long smith machine guide rod rubber pad upper Ø60*Ø26*45 Adjustable setting lever M12*32...
  • Page 17 ASSEMBLY STEP 6 ASSEMBLY STEP 6 INSTRUCTIONS 1. Pass the long smith machine guide rod (51) through the long smith machine guide rod rubber pad lower (58), safety hook left (52), long smith machine guide rod rubber pad upper (59), sliding tube left (53) and fix to left frame with fixing sleeve (62) and M8*10 grub screw (63).
  • Page 18 ASSEMBLY STEP 7 Description Notes Hexagon bolt M10*75 Lock nut Flat washer Ø10 Pulley Ø19 Hexagon bolt M10*45 Floating pulley bracket Pulley Ø50 Sleeve Ø20*16*10.5*20.5 Cable Ø5*4095 bulb Carabena Hexagon bolt M10*25 Pulley Ø75 Cable - 17 -...
  • Page 19 ASSEMBLY STEP 7 ASSEMBLY STEP 7 INSTRUCTIONS 1. Install pulley (70) with M10*45 hexagon bolt (71), Ø10 flat washer (6), M10 lock nut (5) on the main frame. 2. Install Ø50 pulley (73) on main frame with sleeve (74), M10*75 hexagon bolt (4), Ø10 flat washer (6) and M10 lock nut (5).
  • Page 20 ASSEMBLY STEP 8 83 84 Description Notes Hexagon bolt M8*16 Flat washer Ø8 Weight plate storage Spring collar Ø50 Shield right Hexagon bolt M6*16 Flat washer Ø6 Shield rubber seal 32*1956 Upper left/lower right triangle trim board Hexagon bolt M8*20 Upper right/lower left triangle trim board Shield left Storage hook...
  • Page 21 ASSEMBLY STEP 8 ASSEMBLY STEP 8 INSTRUCTIONS 1. Install the upper left/lower right triangle trim board (86) and upper right/lower left triangle trim board (88) to the main frame with M8*20 hexagon bolt (87) and Ø8 flat washer (41). 2. Install the shield right (82), shield rubber seal (85) and shield left (89) to the main frame with M6*16 hexagon bolt (83) and Ø6 flat washer (84).
  • Page 22 ASSEMBLY STEP 9 Description Notes Large flat washer Ø30*Ø10*3 Hexagon bolt M10*25 J hook right J hook left Safety arm right Safety arm left Foam roller anchoring system Dipping handle left Dipping handle right Core trainer Sleeve Ø33*Ø29*Ø20*18 - 21 -...
  • Page 23 ASSEMBLY STEP 9 ASSEMBLY STEP 9 INSTRUCTIONS 1. Use M10*25 hexagon bolt (27), Ø10 large flat washer (14) and sleeve (99) to install the core trainer (98) to the main frame. 2. The j hook right (91), j hook left (92), safety arm right (93), safety arm left (94), dipping handle left (96) and dipping handle right (97) can be used on the front stainless steel posts.
  • Page 24 ASSEMBLY STEP 10 Description Notes Leg press plate T-shape locking pin M10*85 Jammer arm foot plate - 23 -...
  • Page 25 ASSEMBLY STEP 10 ASSEMBLY STEP 10 INSTRUCTIONS 1. Leg press plate (100) fixes to the smith machine with Ø10*85 T-shape locking pin (101). 2. Use Ø10*85 T-shape locking pin (101) to secure jammer arm foot plate (102) to the main frame.
  • Page 26 ASSEMBLY STEP 11 Description Notes Aluminium cover Ø50*Ø19*Ø11 Hexagon bolt M10*20 Spring washer Ø10 Spring collar Ø50 T-shape locking pin Ø10*85 Jammer arm fixing bracket right Jammer arm right Jammer handle Jammer arm stopper bracket right Jammer arm front rod Jammer arm fixing bracket left Jammer arm left Jammer arm stopper bracket left...
  • Page 27 ASSEMBLY STEP 11 ASSEMBLY STEP 11 INSTRUCTIONS 1. Connects the jammer arm fixing bracket left (108) and jammer arm left (109) with M10*20 hexagon bolt (67), Ø10 spring washer (68) and Ø50*Ø19*Ø11 aluminium cover (61). 2. Connects the jammer arm fixing bracket right (103) and jammer arm right (104) with M10*20 hexagon bolt (67), Ø10 spring washer (68) and Ø50*Ø19*Ø11 aluminium cover (61).
  • Page 28 ADDITIONAL ATTACHMENTS Description Notes Carabena Lat pull down bar Short tri-bi bar D handle Chain and carabena Tricep/bicep rope Ø28*690 Barbell lifting device - 27 -...
