Summary of Contents for Brute Force RAPTOR

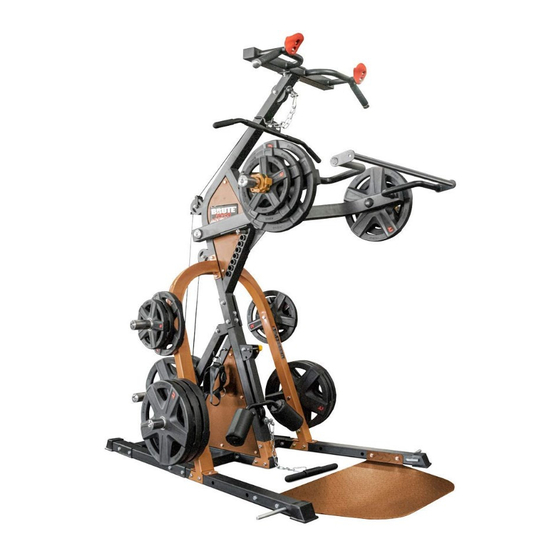

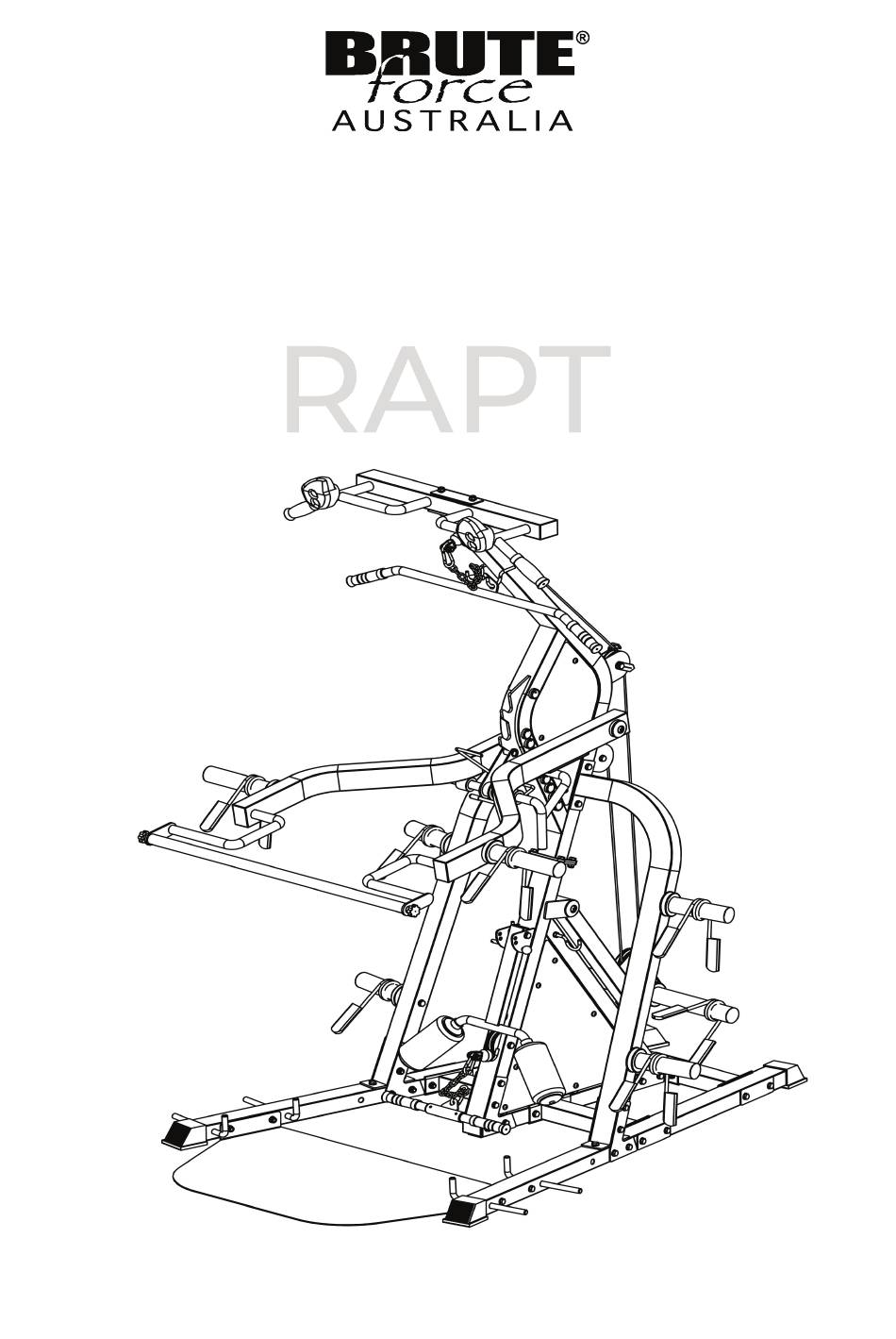

- Page 1 M u l t i - F u n c t i o n a l L eve r a g e T r a i n e r O w n e r ’ s M a n u a l...
- Page 2 Content Content -------------------------------------------------------------------- 1 Safety precautions ------------------------------------------------------- 2 Part List -------------------------------------------------------------------- 3 Assembly ------------------------------------------------------------------- 4-11 Maintenance --------------------------------------------------------------- 12...
- Page 3 Safety Precautions Safety First Regardless of how enthusiastic you may be about getting on your equipment and exercising, take the time to ensure that your safety is not jeopardized. A moment’s lack of attention can result in an accident, as can failure to observe certain simple safety precautions.
- Page 4 Part List Description Qty. Description Qty. Base Frame Side Base frame Big Stand Frame Big Stand Frame Connector Plate Hex Bolt M10*90 Nylon Lock Nut 10 Washer Bending Tube(up) Up Cross Tube Climber Grips(L) Climber Grips(R) Hex Bolt M10*16 Sleeve 32* 25*30 Hex Bolt M10*75 Support Tube(R)
- Page 5 Assembly Instruction Note: 1. Washer should be placed on both ends of all bolts (against the head of the bolt and against the nut) unless otherwise specified in these instructions. 2. Hand tighten all bolts on initial assembly and finally tighten with the wrench once the entire structure is erect.
- Page 6 Assembly Step 2 Key No. Description Qty. Nylon Lock Nut Washer Hex Bolt M10*75 Hex Bolt M10*25 Hex Socket Head Bolt M10*40...
- Page 7 Assembly Step 3 Key No. Description Qty. Nylon Lock Nut Washer Hex Bolt M10*16 Hex Socket Head Screw M10*20 Bearing 6005 Steel Bushing 25*7 Hex Bolt M10*95...
- Page 8 Assembly Step 4 Key No. Description Qty. Hex Socket Head Bolt M10*20 Bearing 6005 Washer 32*1 Tapping Screw 4.2*19 Circlip 35...
- Page 9 Assembly Step 5 CABLE DIAGRAMS Key No. Description Qty. Key No. Description Qty. Nylon Lock Nut Washer Coil Chain Hex Bolt M10*85 Hex Bolt M10*55 Hex Bolt M10*45 Steel Bushing 16*23 Snap Link Hex Bolt M10*30...
- Page 10 Assembly Step 6 Step 7 Key No. Description Qty. Key No. Description Qty. Nylon Lock Nut Washer Hex Bolt M10*75 Hex Bolt M10*25 Ball Head Pin Washer 78*3 Hex Socket Head Bolt M8*20 Nylon Washer 10*2 Nut M8 Washer...
- Page 11 Assembly Step 8 Key No. Description Qty. Washer Hex Socket Head Bolt M8*12...
- Page 12 Assembly Step 9 Key No. Description Qty. Hex Bolt M10*90 Nylon Lock Nut Washer Hex Bolt M10*85 Wrench to tighten all bolts and nuts. The machine should now be fully assembled. Please check that all bolts are tight and cables are seated correctly on all pulleys before using.
- Page 13 Maintenance Maintenance Information 1. Lubrication of all moving parts is essential to the longevity and optimal performance of your Machine. Initial lubrication of some parts of your gym has been done at the factory. Note: Do not use oil based lubricants as they will attract dust, dirt and grime, and will eventually gum up and erode bushings and sealed bearings.
