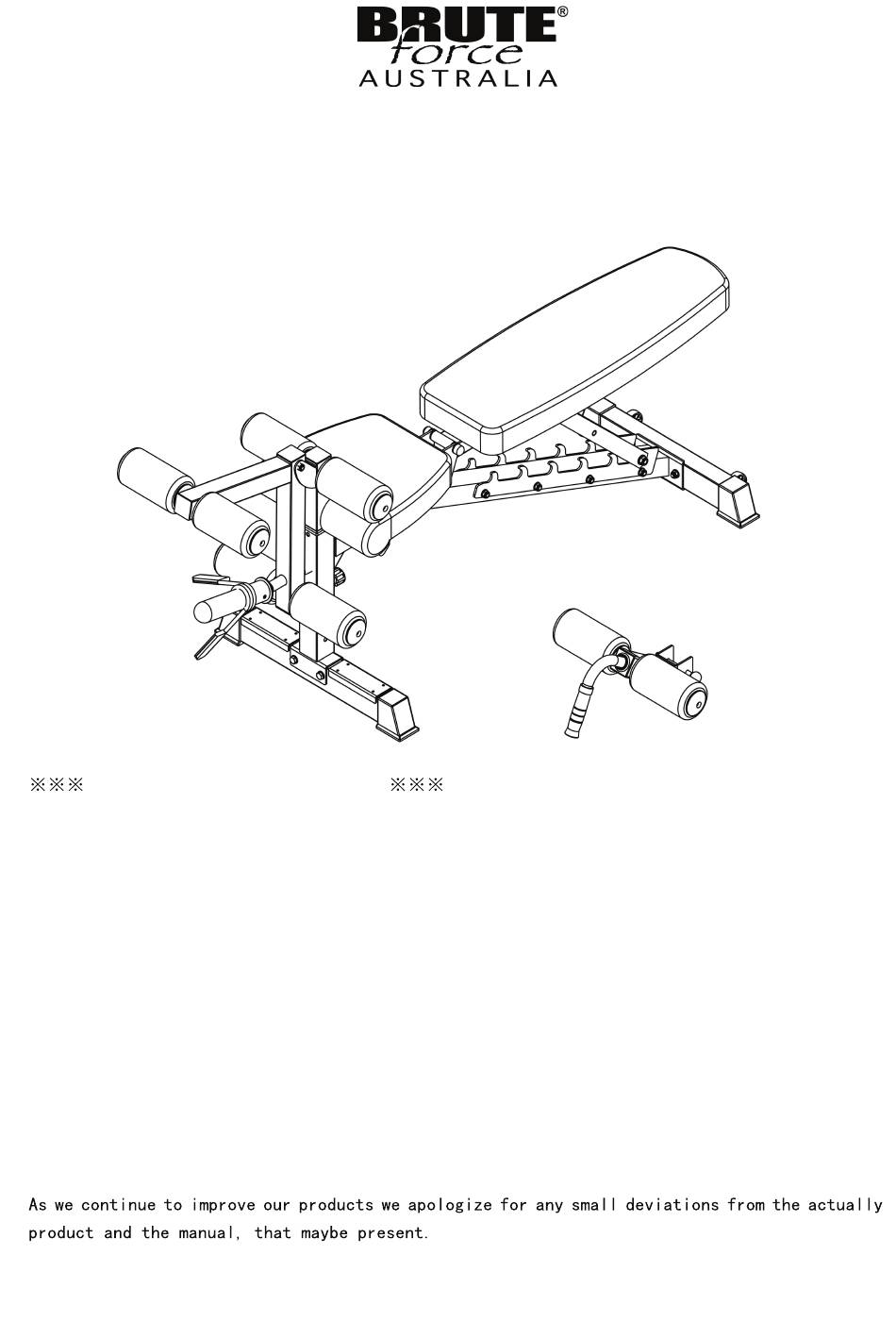

SUPA808-L
Adjustable Bench with Leg Extension/Leg Curl
Attachment
Pay attention to fixing and operation
1. Please keep the box and the manual after installing the machine.
2. Check and tighten screws regularly.
3. Please install the machine in a spacious area.
4. Position the machine on level ground and use a mat to protect the floor.
5. This machine is designed for generally healthy people; please don't use if feeling unwell.
6. There are slip proof cover on the nut (little nylon circle on the nut); please tighten them with a wrench.
9. Do not use if the machine is damaged in any way.
10. Do change or modify the machine as this will void your warranty and could be dangerous to use.
11. Avoiding use or storage in damp, wet and/or direct sunlight conditions.
12. Do not use scour or any chemicals/dilutants on frames or seat/bench coverings; clean using rag and warm
water.
13. Don't put your hands in the aperture and moving part of the machine when you are doing exercise.
14. To extent the life of your machine please follow the preceding recommendations.

Advertisement

loading

Summary of Contents for Brute Force SUPA808-L

  • Page 1 SUPA808-L Adjustable Bench with Leg Extension/Leg Curl Attachment Pay attention to fixing and operation 1. Please keep the box and the manual after installing the machine. 2. Check and tighten screws regularly. 3. Please install the machine in a spacious area.
  • Page 2: Exploded View Diagram

    Exploded View Diagram...
  • Page 3: Part List

    Part List Description Qty. Description Qty. Main Frame Front Base Rear Base Metal Plate Backrest Adjustment Plastic Axis Backrest Support Backrest Pad Seat Pad Seat Support Bushing Seat Adjustment Lid Nut M10 Sleeve 60/50 Round Buffer Pop-Pin Plug 40*20 Plug 60*40 End Cap Wheel Plastic Cap M12...
  • Page 4: Assembly Instruction

    Assembly Instruction Note: 1. Washer should be placed on both ends of all bolts (against the head of the bolt and against the nut) unless otherwise specified in these instructions. 2. Hand tighten all bolts on initial assembly and finally tighten with the wrench once the entire structure is erect.
  • Page 5 Assembly Instruction Step 2 Key No. Description Qty. Lid Nut M10 Washer Washer Nylon Lock Nut M12 Hex Bolt M12*100 Hex Bolt M12*120 Note: Wrench tighten the bolt(#31,#32) then loosen nut just enough for part(#5,#7,#10) to pivot freely. Step 3 Key No.
