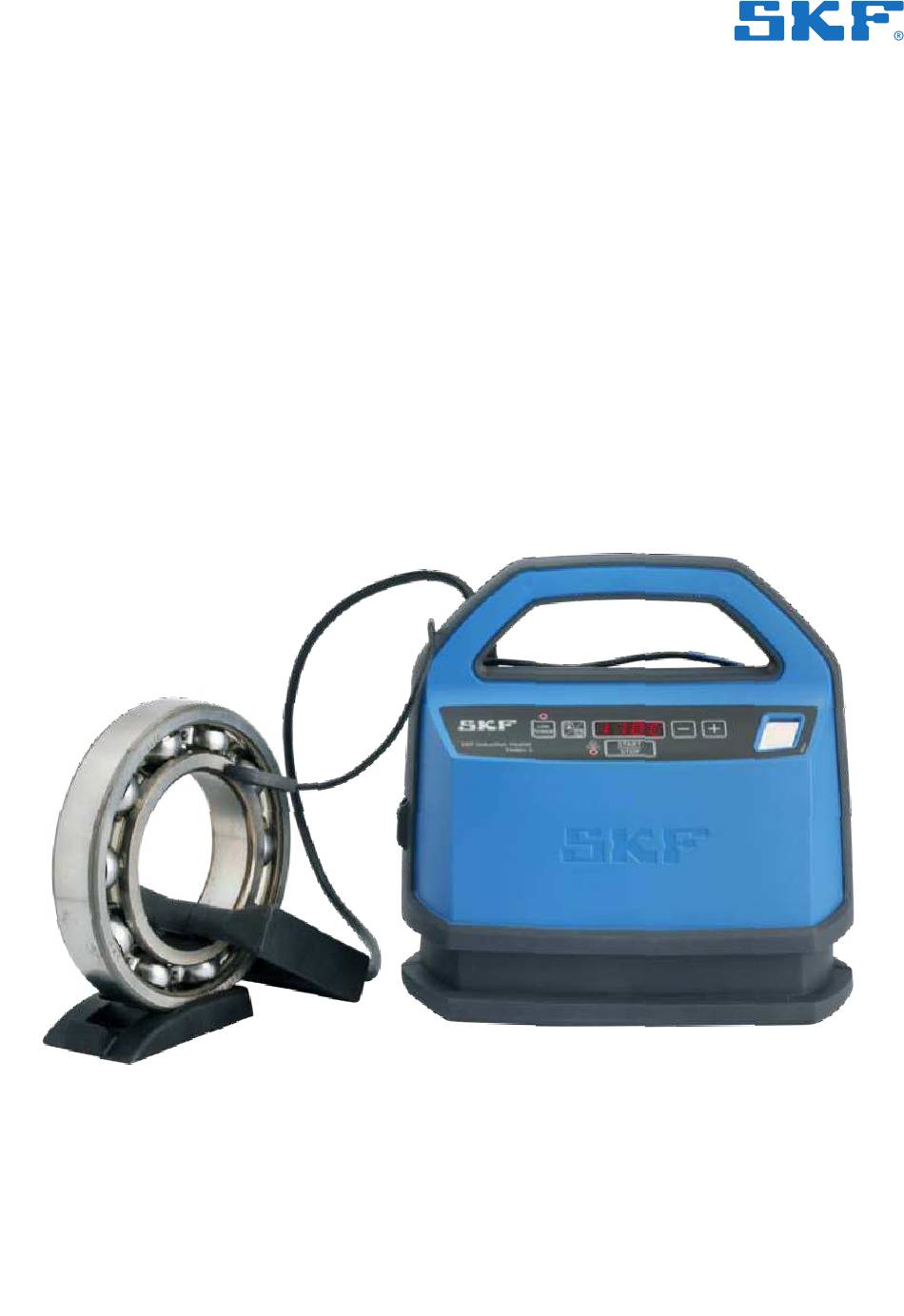

- Page 1 TMBH 5 Instructions for use...
-
Page 2: Table Of Contents
Table of contents Safety recommendations ......................... 3 EU Declaration of Conformity ......................4 UK Declaration of Conformity ......................4 1. Scope of delivery ........................5 2. Introduction ..........................5 Principle of operation ...........................6 Distinguishing features ..........................7 Storage .................................7 3. Description ..........................7 Technical data ...............................8 4. -
Page 3: Safety Recommendations
• Because the TMBH 5 generates a magnetic accordingly. field, people wearing a pacemaker or implants must not be within 5 m (16 ft) of the TMBH 5 during operation. • During the heating process observe a safety distance of 30 cm (1 ft) with the workpiece or the heater. -
Page 4: Eu Declaration Of Conformity
EU Declaration of Conformity UK Declaration of Conformity TMBH 5 TMBH 5 We, SKF MPT, Meidoornkade 14, 3992 AE Houten, We, SKF MPT, Meidoornkade 14, 3992 AE Houten, The Netherlands herewith declare under our sole The Netherlands herewith declare under our sole... -
Page 5: Scope Of Delivery

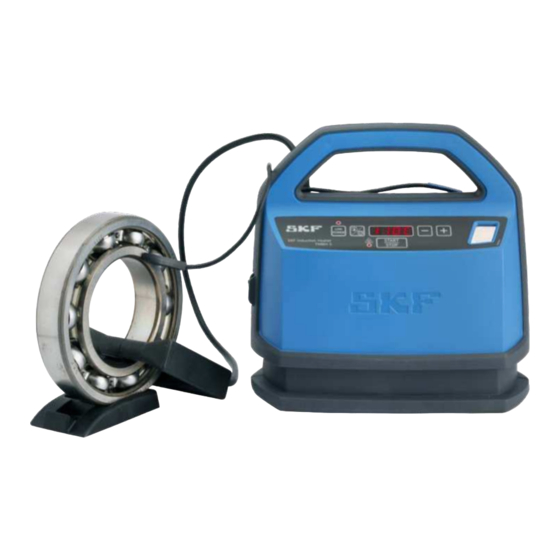

1. Scope of delivery 2. Introduction The TMBH 5 portable induction heater contains the following: The TMBH 5 portable induction heater is designed • Induction heater TMBH5 and clamp. to heat up roller bearings that are mounted with an •... -
Page 6: Principle Of Operation
2.1 Principle of operation The TMBH 5 portable induction heater consists of a small graphite clamp embedded in a polymer housing with electromagnetic coils beneath it. When the heater is switched on, electric current runs through these coils, generating a fluctuating magnetic field, but no heat on the clamp itself. -
Page 7: Distinguishing Features
2.2 Distinguishing features 2.3 Storage • Portable: • Gloves: Thanks to the medium frequency technology The gloves could be stored in the attached used and the right choice of materials, the compartment. heater is light weight. This, together with the •... -
Page 8: Description
Total weight 3 kg (6.6 lb) 1) SKF does not recommend heating bearings capped with seals or shields above 80 °C (175 °F). However, if higher temperatures are necessary, please contact SKF. The heater is designed for maintenance operations where some cooling in between jobs is allowed. -
Page 9: Preparation For Use
5. Preparation for use • Place the TMBH 5 on a workbench or similar (stable base) • Make sure the line voltage is within the specified range of 100–240 V, 50–60 Hz. Connect the mains plug to a suitable power supply. -
Page 10: Operation
Temperature Mode is selected. • The selected temperature is shown on the POWER display. The default temperature for bearings SKF Induction Heater START TMBH 5 is 110 °C (230 °F). If a different temperature is STOP desired, press + or – to adjust the temperature in steps of 1˚. -
Page 11: Temperature Measurement
6.3 Time mode I M P O R TA N T: The TMBH 5 can heat up components up to This mode is suitable for batch production, when 200 °C (392 °F). Heating above this temperature the time required to heat a workpiece to a given (for example using Time Mode) can damage temperature is already known. -
Page 12: Power Level Selection
6.4 Power level selection 7. Safety features The shape, weight, size and internal clearances, all The TMBH 5 is equipped with the following safety affect to the time required to heat up a bearing. The features: large variety of bearings precludes the possibility of •... -
Page 13: Troubleshooting
8. Troubleshooting It might happen that you encounter a failure in the heater. If this happens, have a look to the following options: • A system fault will be indicated by an acoustic signal and one of the following fault codes on the user interface display will be shown: Error code Fault... -
Page 14: Warning Labels And Safety
9. Warning labels and safety Warning label Meaning Use heat protection gloves In case of burning your fingers, get first aid help if necessary. Risk of pinching your fingers Special care needs to be taken into account when positioning components on the heater or transporting them. -
Page 15: Spare Parts
Heat resistant gloves, maintenance nor regular calibration. one pair • Do not try to fix the heater yourself. Approach your SKF contact person or distributor if there is any malfunctioning or preventive repair needed. • The heater is calibrated during production. If some repairs are performed, the heater needs to be recalibrated. - Page 16 • ® SKF is a registered trademark of the SKF Group. © SKF Group 2023 The contents of this publication are the copyright of the publisher and may not be reproduced (even extracts) unless prior written permission is granted. Every care has been taken to ensure the accuracy of the information contained in this publication but no liability can be accepted for any loss or damage whether direct, indirect or consequential arising out of the use of the information contained herein.
