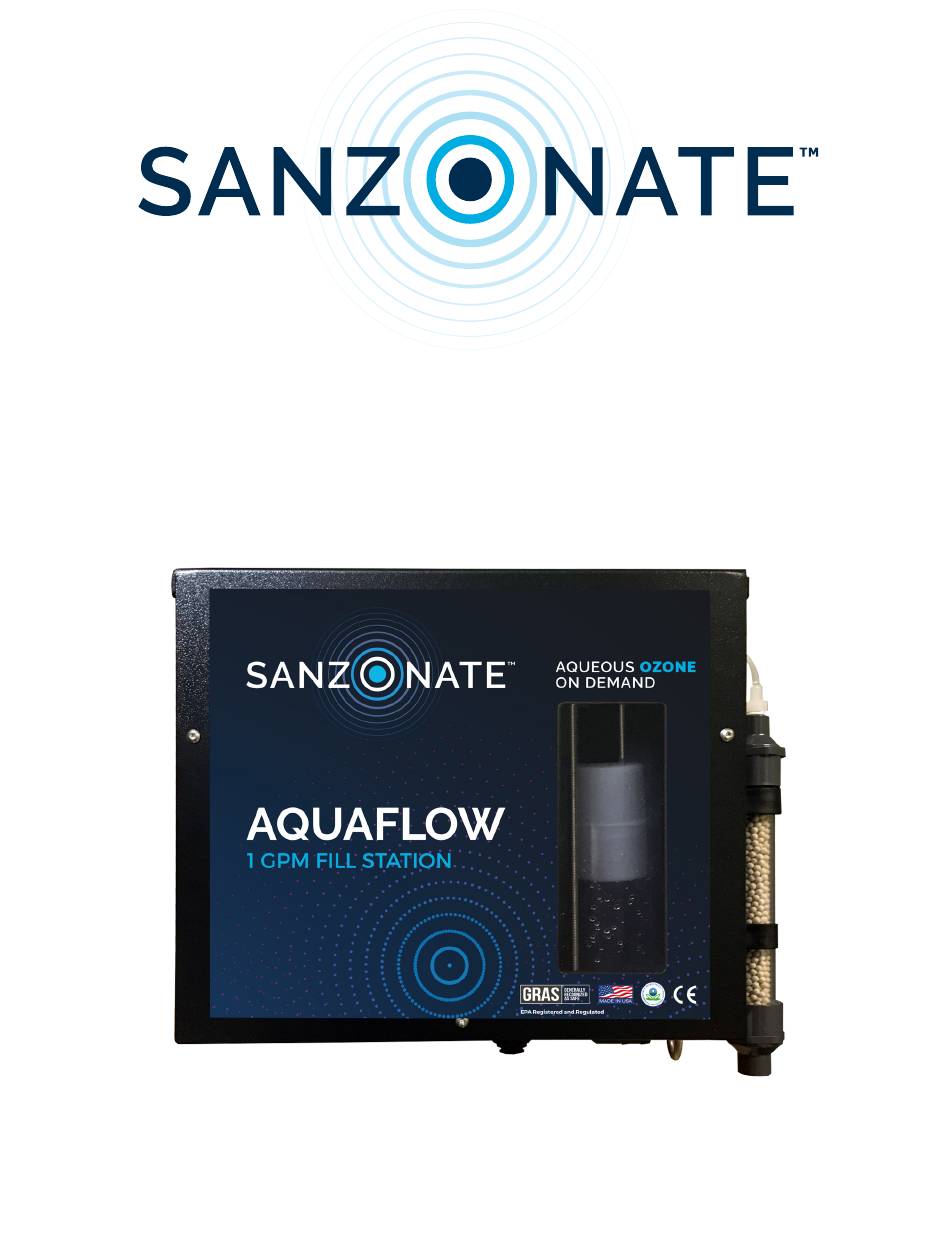

AQUAFLOW 1GPM
OWNER'S MANUAL
 Copyright © Sanzonate Global, Inc. | Revision 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AQUAFLOW 1GPM and is the answer not in the manual?

Questions and answers

Related Manuals for SANZONATE AQUAFLOW 1GPM

Summary of Contents for SANZONATE AQUAFLOW 1GPM

  • Page 1 AQUAFLOW 1GPM OWNER'S MANUAL  Copyright © Sanzonate Global, Inc. | Revision 1.0...

  • Page 2: Table Of Contents

    PRODUCT SPECIFICATIONS Dimensions......13.0" x 11.0" x 6.25" (WxHxD) Weight.............9lbs14oz (4.15kg) Max. Input Water Pressure........85PSI Min. Input Water Pressure........32PSI Output Flow Rate.....1.0 GPM (gallons per min.) ORP............850mV [+/­ 100mV] TABLE OF CONTENTS INTRODUCTION........2 SAFETY WARNINGS.

  • Page 3: Introduction

    This is higher than typical for ozone generators of this size! The contents of this manual are based on the latest product information available at the time of publication. Sanzonate Global, Inc. reserves the right to make changes in price, color, materials, equipment, specifications or models at any time without notice.

  • Page 4: Safety Warnings

    SAFETY WARNINGS Always provide a copy of this manual to anyone using this equipment. There is a proper way to use this machine; training, although minimal, is recommended. Read this manual before operating this machine to prevent the possibility of personal injury to the operator or unintentional damage to the equipment.
  • Page 5 SAFETY WARNINGS (con't) • DO NOT COVER THE BLUE SOLUTION HOSE WITH YOUR THUMB. This can put too much back pressure on the machine and flood the ozone generators with water. If you feel your machine is not working properly, contact your distributor before attempting to fix it yourself.

  • Page 6: Rma Procedure

    365 days beginning on the date of purchase or order. Sanzonate Global, Inc. in no event will be liable for injuries to persons or property, or for incidental and contingent, special or consequential damages arising from the use of our product.

  • Page 7: Product Overview

    PRODUCT OVERVIEW Take a moment to familiarize yourself with the unit. (Fig.1) Note the orientation of the inlet and outlet ports. (Fig.2) FAN EXHAUST HOUR METER POWER IN (12VDC ONLY) ON/OFF SWITCH (Fig.1) COLD FRESH WATER (IN) OZONE DESTRUCT (AIR, OUT) AIR DRIER (AIR, IN) O3 SOLUTION OUT   (AQUEOUS OZONE) (Fig.2) FAN  INLET/FILTER...

  • Page 8: Installation

    INSTALLATION Installations may not be identical to this manual. If you need help or have any questions contact your distributor. YOU WILL NEED: Included: Screws Plastic Anchors Mounting Template Not Included: Tape | Pencil/Pen | Scissors (For Drywall) (For Concrete) •...
  • Page 9 INSTALLATION (con't) Step 3: Drill the holes for the anchors. Drywall: - Use a 5/16" drill bit on the three (3) marks. - Remove the template from the wall. - Lightly tap the anchors into each hole until they are flush against the wall. - Start the screws [#10-32 x 1-1/4] by hand until you can switch to a screwdrive drill to finish tightening.
  • Page 10 INSTALLATION (con't) Step 5: Connect the filter (Fig. 5) to the INLET port located on the bottom-left of the unit. (Fig. 6) - Arrows are located on the side of the filter and should point toward the 1GPM. (Fig.5) (Fig.6) (Fig.7)
  • Page 11 INSTALLATION (con't) Step 6: Connect the black 3/8" tubing into the bottom of the filter. (Fig. 8) (Fig.8) Step 7: Connect the 360° swivel adapter to the cold water supply. (provided) (Fig.9) - A 3/4" garden faucet is a common connection point. (Fig.10) - The remaining end of black tubing connects to the swivel adapter.
  • Page 12 INSTALLATION (con't) Step 8: Connect the blue hose to the black hose barb 90° fitting on the bottom-right of the 1GPM. - Slide the hose through the U-bolt and onto the barb with a slight twisting motion. (Fig.11) There is very little pressure in the blue solution hose; a clamp is not needed (Fig12) (Fig.11) (Fig.12)

  • Page 13: Power

    POWER Step 9: Connect the 3-prong male end into a wall outlet, preferrably a GFCI. (Fig.13) The 1GPM uses a 12V DC power adapter and can be used with voltages between 100-240V~ 50/60Hz. (Fig.13) Step 10: Connect the IEC plug into the adapter (Fig.14z) Make certain the IEC plug is fully inserted before moving forward.
  • Page 14 POWER (con't) Step 11: Verify the blue LED on the 12V adapter is illuminated. (Fig.15) (Fig.15) NOTE:  If the blue LED does not illuminate, contact your sales representative for    assistance.  Step 12: Connect the barrel jack from the power adapter into the power port located on the lower-left side of the unit. (Fig.16) (Fig.16)

  • Page 15: Changing The Air Drier

    POWER (con't) Great job! You are finished with the installation and may begin using your NEW AQUAFLOW 1GPM Fill Station. To Use: Press-in the black ON/OFF switch located on the lower-left side of the unit. (Fig.16) BLUE light will illuminate at the switch and also inside the viewing window.
  • Page 16 CHANGING THE AIR DRIER (Fig.17) (Fig.18) (Fig.19) (Fig.20)

  • Page 17: Cleaning The Inlet Filter

    CLEANING THE INLET FILTER A 100 mesh (150 microns) inlet water filter is used to prevent foreign objects from obstructing the flow of solution inside your 1GPM. Keeping the filter screen clean will help prevent unecessary maintenance issues and prolong the life of your equipment. We recommend after the first week from installation the screen inside the inlet water filter should be inspected.
  • Page 18 CLEANING THE INLET FILTER (con't) (Fig.21) (Fig.22)

  • Page 19: Hour Meter

    HOUR METER A digital hourglass will flash on the screen while in operation. The hour meter is Non-Resettable. Display Resolution: Change Filter Notification: "CLEAN Until Total Running Hours (H) pass 10000 AIR FILTER", "NOW" display resolution is 0.1 ≈ 6 m The hour meter has been inutes programmed to display an alert...

  • Page 20: Operation Usage Tips

    OPERATION USAGE TIPS When using the 1GPM: - There is a direct link between the height of aqueous ozone in the degassing chamber and the height where the blue solution hose is held while filling. - The lower you hold the blue solution hose, the lower the column of aqueous ozone in the degassing chamber.

  • Page 21: Safety Data Sheet (Sds)

    SAFETY DATA SHEET According to the federal final rule of hazard communication revised in 2016 (HazCom 2019) Date of Issue: 10/2019 Version: 1.2 SECTION 1:  Identification 1.1. Identification Product form :  Mixture Trade name :  SANZONATE GLOBAL, INC. AQUEOUS OZONE SOLUTION 1.2. Relevant identified uses of the substance or mixture and uses advised Use of the substance/mixture :  Surface cleaning, water purification 1.3. Details of the supplier of the safety data sheet Sanzonate Global Inc. 120 Sharmrock Plaza Suite 200 Omaha, NE 68154 Information: mhanafin@sanzonate.com 1.4. Emergency telephone number Emergency number :  1­855 (Contact: Mike Hanafin) SECTION 2:  Hazard(s) identification 2.1. Classification of the substance or mixture GHS­US classification Not classified 2.2. Label elements GHS­US labelling No labelling applicable 2.3. Other hazards No additional information available 2.4. Unkown acute toxicity (GHS US) Not applicable SECTION 3:  Composition/information on ingredients...
  • Page 22 SAFETY DATA SHEET According to the federal final rule of hazard communication revised in 2016 (HazCom 2019) Date of Issue: 10/2019 Version: 1.2 First­aid measures after ingestion:   No specific measures have to be taken if the product is swallowed. Sanzonate Global Inc. does not advise drinking its   product's aqueous ozone solution, there are no known medical  benefits. 4.2. Most important symptoms and effects, both acute and delayed Symptoms/injuries after inhalation :  None under normal use.  Inhalation of aqueous ozone mist may lead to     irritation of the lungs.    :  Mild irritation may occur if a person is exposed to gaseous ozone for an     extended period­of­time. Symptoms/Injuries after skin contact :  None under normal use. Symptoms/Injuries after eye contact :  May cause minor eye irritation. 4.3. Indication of any immediate medical attention and special treatment needed Treat symptomatically. SECTION 5:  Firefighting measures 5.1. Extinguishing media Suitable extinguishing media :  Use extinguishing media appropriate for surrounding fire. Unsuitable extinguishing media :  None to our knowledge. 5.2. Special hazards arising from the substance of mixture Fire hazard :  None known. Explosion hazard :  None known. Reactivity :  No dangerous reactions known under normal condition of use. 5.3.
  • Page 23 Incompatible materials :  Natural rubber components may degrade or dry­out over time. :  Examples include: Buna, Nitrile and Vinyl SECTION 8:  Exposure control/personal protection 8.1. Control parameters No additional information available 8.2. Exposure controlsControl parameters Appropriate engineering controls :  Handle in accordance with good industrial hygiene and safety    procedures. Hand protection :  No special hand protection is recommended under normal conditions of    use. Eye protection :  No special eye protection equipment recommended under normal    conditions of use. Respiratory protection :  No special respiratory protection equipment is recommended under    normal conditions of use with adequate ventilation. SECTION 9:  Physical and chemical properties 9.1. Information on basic physical and chemical properties Physical State :  Liquid Color :  Colorless Odor :  Fresh ­ No fragrance added Odor threshold :  No data available :  Same as source water ­ typically 6.0 ­ 9.0 pH Melting point :  No data available Freezing point :  No data available Boiling point :  100 C (212 F) Copyright © Sanzonate Global Inc.
  • Page 24 No additional information available SECTION 10:  Stability and reactivity 10.1. Reactivity No dangerous reactions known under normal conditions of use. 10.2. Chemical stability Stable. 10.3. Possibility of hazardous reactions No dangerous reactions known 10.4. Conditions to avoid None under normal conditions. 10.5. Incompatible materials Natural rubber components may degrade or dry out over time with extended use. 10.6. Hazardous decomposition products None known. SECTION 11:  Toxicological information 11.1. Information on toxicological effects Likely routes of exposure :  Ingestion; Inhalation; Skin and eyes contact Acute toxicity :  Not classified Skin corrosion/irritation :  Not classified Serious eye damage/irritation :  Not classified Respiratory or skin sensitization :  Not classified Germ cell mutagenicity :  Not classified Carcinogenicity :  Not classified Reproductive toxicity :  Not classified Copyright © Sanzonate Global Inc.
  • Page 25 Symptoms/injuries after skin contact :  None under normal use. Symptoms/injuries after eye contact :  May cause minor eye irritation. Symptoms/injuries after ingestion :  Not known or expected to be harmful to health in normal     use. SECTION 12:  Ecological information 12.1. Toxicity No additional information available. 12.2. Persistence and degradability No additional information available. 12.3. Bio accumulative potential No additional information available. 12.4. Mobility in soil No additional information available. 12.5. Other adverse effects Effect on ozone layer :  No additional information available Effect on the global warming :  No additional information available SECTION 13:  Disposal considerations 13.1. Waste treatment methods Waste disposal recommendations:  May be disposed of in household waste landfill. SECTION 14:  Transport information Department of Transportation (DOT) In accordance with DOT Not regulated for transport Not regulated for transport Transport by sea Not regulated for transport Air transport Not regulated for transport Copyright © Sanzonate Global Inc.
  • Page 26 SAFETY DATA SHEET According to the federal final rule of hazard communication revised in 2016 (HazCom 2019) Date of Issue: 10/2019 Version: 1.2 SECTION 15:  Regulatory information 15.1. US Federal regulations No additional information available 15.2. International regulations CANADA No additional information available EU­Regulations No additional information available National regulations No additional information available 15.3. US State regulations No additional information available SECTION 16:  Other information Date of latest revision :  August 7th, 2022 Sources of key data :  Data arise from reference works and literature. NFPA health hazard :  0 ­ Exposure under fire conditions would offer no hazard       beyond that of ordinary combustible materials. NFPA fire hazard :  0 ­ Materials that will not burn. NFPA reactivity :  0 ­ Normally stable, even under fire exposure conditions,        and are not reactive with water. SDS US (GHS HazCom 2019) This information is based on our current knowledge and is intended to described the product for the purpose of  health, safety and environmental requirements only.  It should not therefore be construed as guaranteeing any  specific property of the product. Copyright © Sanzonate Global Inc.
