SANZONATE AQUAFLOW MAXI Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AQUAFLOW MAXI
OWNER'S MANUAL
Rev. 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AQUAFLOW MAXI and is the answer not in the manual?

Questions and answers

Related Manuals for SANZONATE AQUAFLOW MAXI

Summary of Contents for SANZONATE AQUAFLOW MAXI

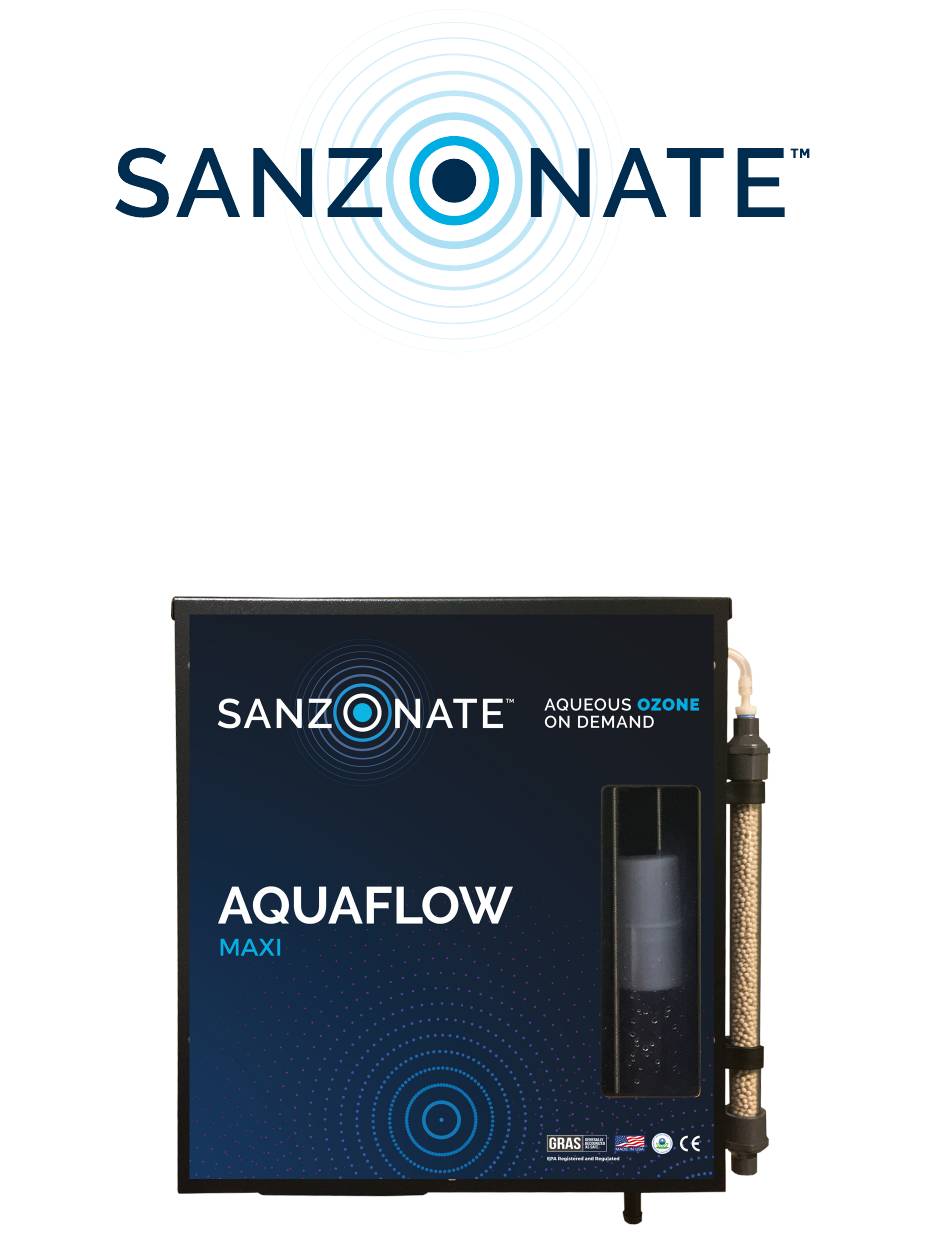

  • Page 1 AQUAFLOW MAXI OWNER'S MANUAL Rev. 1.0...

  • Page 2: Table Of Contents

    PRODUCT SPECIFICATIONS Dimensions.............38 x 16.5 x 40.6 cm (WxDxH) Weight........................7.21kg Max. Input Water Pressure................5.8bars Min. Input Water Pressure................2.7bars Output Flow Rate..................11.36 lpm ORP....................850mV [+/- 100mV] TABLE OF CONTENTS INTRODUCTION..........3 SAFETY WARNINGS.

  • Page 3: Introduction

    The contents of this manual are based on the latest product information available at the time of publication. Sanzonate Global Inc. reserves the right to make changes in price, color, materials, equipment, specifications or models at any time without notice.

  • Page 4: Safety Warnings

    SAFETY WARNINGS Always provide a copy of this manual to anyone using this equipment. There is a proper way to use this machine; training, although minimal, is recommended. Read this manual before operating this machine to prevent the possibility of personal injury to the operator or unintentional damage to the equipment.

  • Page 5: Statement Of Warranty

    365 days beginning on the date of purchase or order. Sanzonate Global Inc. in no event will be liable for injuries to persons or property, or for incidental and contingent, special or consequential damages arising from the use of our product.

  • Page 6: Product Overview

    PRODUCT OVERVIEW Take a moment to familiarize yourself with the unit. (Fig.1) Note the orientation of the inlet and outlet ports. (Fig.2) FAN EXHAUST ON/OFF  SWITCH HOUR METER POWER IN PSI Gauge (12VDC ONLY) Min.45 ­ Max.85 (Fig.1) INLET PORT O3 SOLUTION (OUT)  (FRESH WATER SUPPLY) (AQUEOUS OZONE) O3 DESTRUCT (OUT)(Scrubbed Air) AIR DRIER (AIR IN) (Fig.2) FAN FILTER...

  • Page 7: Installation

    INSTALLATION This machine is intended for commercial use only. Installations may not be identical to this manual. If you need help or have questions contact your distributor. YOU WILL NEED: Included: Screws Plastic Anchors Mounting Template Liquid Level Not Included: Tape Pencil/Pen (For Drywall)
  • Page 8 INSTALLATION (con't) Step 3: Drill the holes for the anchors. Drywall: - Use a 5/16" (8mm) drill bit on the three (3) marks. - Remove the template from the wall. - Lightly tap the anchors into each hole until they are flush against the wall. - Start the screws [#10-32 x 1-1/4] by hand until you can switch to a screwdrive drill to finish tightening.
  • Page 9 INSTALLATION (con't) Step 5: Connect the water filter (Fig. 5) to the INLET port located in the middle of the unit. (Fig. 6) & (Fig.7) Arrows located on the side of the filter point in the direction of water flow. When installed the arrows should point UP (↑).
  • Page 10 INSTALLATION (con't) Step 6: Connect the 6ft black tubing into the bottom of the filter. (Fig. 8) (Fig.8) Step 7: Connect the white adapter to the cold water supply. (provided) (Fig.9) A 3/4" garden faucet is a common connection point. (Fig.10) The remaining end of black tubing connects this tube port.
  • Page 11 INSTALLATION (con't) Step 8: Connect the blue hose to the black hose barb fitting on the bottom- right of the MAXI. Slide the hose onto the barb with a slight twisting motion. (Fig.11) There is very little pressure in the blue solution hose; a clamp is not needed.

  • Page 12: Power

    POWER The AQUAFLOW MAXI uses an AC/DC Adapter (Power Supply) to convert mains voltages into 12VDC. Step 9: Connect the 3-prong male end into a wall outlet, preferrably a GFCI. (Fig.13) (Fig.13) Step 10: Connect the female end into the AC/DC adapter. (Fig.14)
  • Page 13 POWER (con't) Step 11: Verify the blue LED on the 12V adapter is illuminated. (Fig.15) (Fig.15) NOTE: If the blue LED does not illuminate, contact your sales representative for assistance. Step 12: Connect the barrel jack from the power adapter into the power port located on the lower-left side of the unit.

  • Page 14: Operating Usage Tips

    OPERATING USAGE TIPS Great job! You are finished with the installation and may begin using your NEW AQUAFLOW MAXI! To Use: Press-in the ON/OFF button located on the left side of the unit. (Fig.17) BLUE light will illuminate inside the viewing window.
  • Page 15 CHANGING THE AIR DRIER (con't) To prevent damage to the 3GPM, never replace the air drier while the unit is "ON".  ­ Extra tubing has been included inside the machine, do not be afraid to use it. You  may gently pull out some tubing to assist with the replacement. Try not to pull more  than 2.0" total. Be sure to gently push the tubing back into the machine when  finished. ­ There should be a nice smooth bend in the tubing without any kinks or folds.(Fig.18B) ­ The cap on top of the air drier should be resting on the top of the top holding clip.     (Fig.18C) (Fig.18) (Fig.19) (Fig.20) (Fig.21)

  • Page 16: Cleaning The Inlet Filter

    CLEANING THE INLET FILTER A 100 mesh (150 microns) inlet water filter is used to prevent foreign objects from obstructing the flow of solution inside your MAXI. Keeping the filter screen clean will help prevent unnecessary maintenance issues and prolong the life of your equipment.
  • Page 17 CLEANING THE INLET FILTER (CON'T) (Fig.22) (Fig.23)

  • Page 18: Hour Meter

    HOUR METER The hour meter is Non-Resettable. A digital hourglass will flash on the screen while in operation. Display Resolution: While the total running hours is in range 0.0 - 9999.9H the resolution is 0.1H ≈ 6m After the total running hours pass 10000H the resolution changes to 1H ≈...

  • Page 19: Safety Data Sheet (Sds)

    Printed:03/01/2023 Version: 4.0 Date of issue: 06/01/2022 SECTION 1: Identification of the substance/mixture and of the company/undertaking 1.1. Product identifier : Sanzonate Global, Inc. Aqueous Ozone Solution Product name Product code : n/a 1.2. Relevant identified uses of the substance or mixture and uses advised against...
  • Page 20 Sanzonate Global, Inc. Aqueous Ozone Solution Safety Data Sheet according to the federal final rule of hazard communication revised on 2012 (HazCom 2012) SECTION 4: First aid measures 4.1. Description of first aid measures First-aid measures after inhalation : Inhalation of aqueous ozone may lead to irritation of the lungs. If breathing is difficult, remove victim to fresh air and keep at rest in a position comfortable for breathing.
  • Page 21 Sanzonate Global, Inc. Aqueous Ozone Solution Safety Data Sheet according to the federal final rule of hazard communication revised on 2012 (HazCom 2012) SECTION 7: Handling and storage Precautions for safe handling : Aqueous ozone solution should not be sprayed as an aerosol to avoid the release of ozone gas out of aqueous ozone solution.
  • Page 22 Sanzonate Global, Inc. Aqueous Ozone Solution Safety Data Sheet according to the federal final rule of hazard communication revised on 2012 (HazCom 2012) SECTION 9: Physical and chemical properties 9.1. Information on basic physical and chemical properties Physical state : Liquid...
  • Page 23 Sanzonate Global, Inc. Aqueous Ozone Solution Safety Data Sheet according to the federal final rule of hazard communication revised on 2012 (HazCom 2012) Skin corrosion/irritation : Not classified (Based on available data, the classification criteria are not met) Serious eye damage/irritation...
  • Page 24 Sanzonate Global, Inc. Aqueous Ozone Solution Safety Data Sheet according to the federal final rule of hazard communication revised on 2012 (HazCom 2012) SECTION 13: Disposal considerations 13.1. Waste treatment methods Waste disposal recommendations : May be disposed of in household waste landfill.
