SANZONATE AQUAFLOW 1GPM Owner's Manual

Hide thumbs Also See for AQUAFLOW 1GPM:
Table of Contents

Advertisement

Quick Links

Download this manual
AQUAFLOW 1GPM
OWNER'S MANUAL
 Copyright © Sanzonate Global, Inc. | Revision 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AQUAFLOW 1GPM and is the answer not in the manual?

Questions and answers

Related Manuals for SANZONATE AQUAFLOW 1GPM

Summary of Contents for SANZONATE AQUAFLOW 1GPM

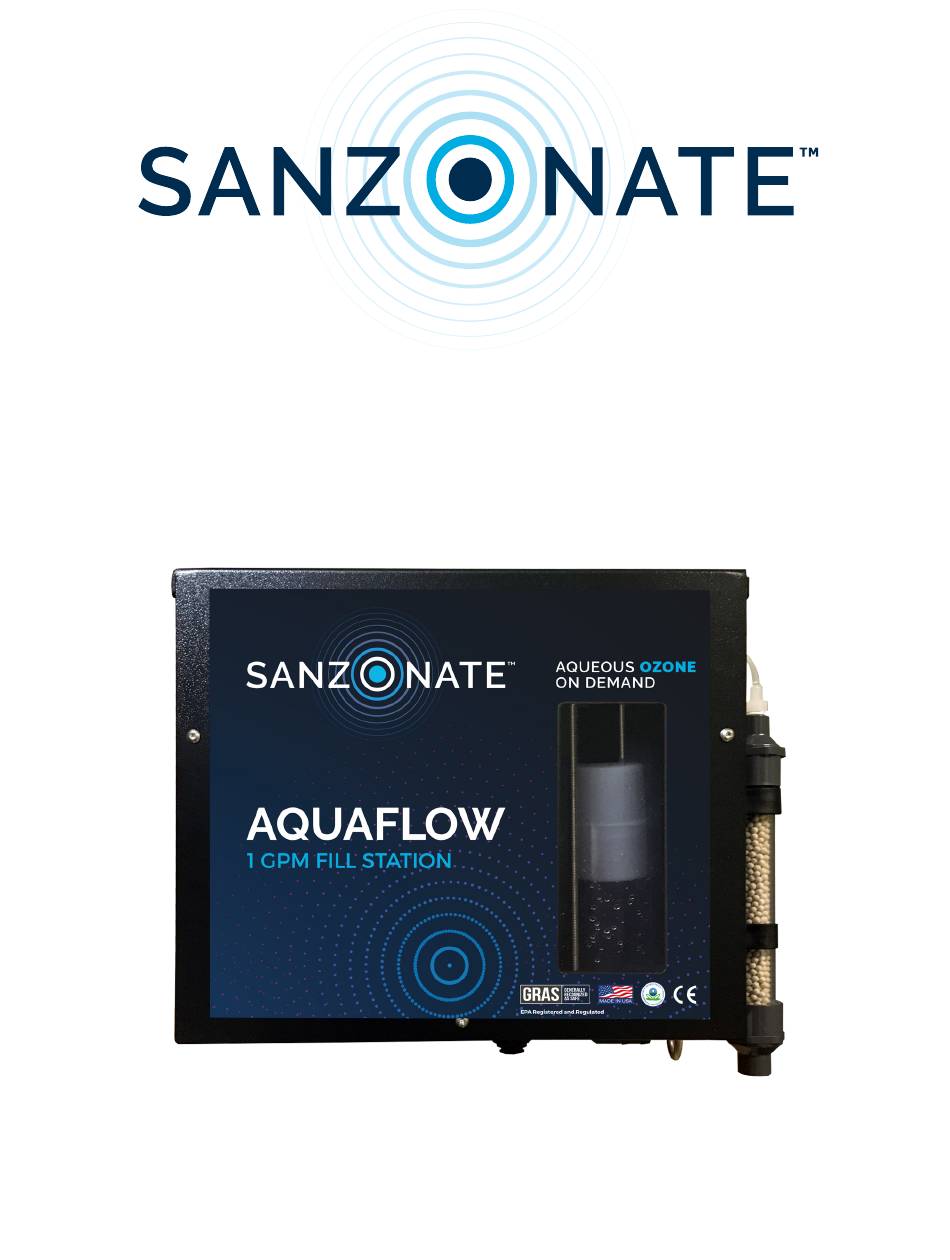

  • Page 1 AQUAFLOW 1GPM OWNER'S MANUAL  Copyright © Sanzonate Global, Inc. | Revision 1.0...

  • Page 2: Table Of Contents

    PRODUCT SPECIFICATIONS Dimensions......13.0" x 11.0" x 6.25" (WxHxD) Weight.............9lbs14oz (4.15kg) Max. Input Water Pressure........85PSI Min. Input Water Pressure........32PSI Output Flow Rate.....1.0 GPM (gallons per min.) ORP............850mV [+/­ 100mV] TABLE OF CONTENTS INTRODUCTION........2 SAFETY WARNINGS.

  • Page 3: Introduction

    This is higher than typical for ozone generators of this size! The contents of this manual are based on the latest product information available at the time of publication. Sanzonate Global, Inc. reserves the right to make changes in price, color, materials, equipment, specifications or models at any time without notice.

  • Page 4: Safety Warnings

    SAFETY WARNINGS Always provide a copy of this manual to anyone using this equipment. There is a proper way to use this machine; training, although minimal, is recommended. Read this manual before operating this machine to prevent the possibility of personal injury to the operator or unintentional damage to the equipment.
  • Page 5 SAFETY WARNINGS (con't) • DO NOT COVER THE BLUE SOLUTION HOSE WITH YOUR THUMB. This can put too much back pressure on the machine and flood the ozone generators with water. If you feel your machine is not working properly, contact your distributor before attempting to fix it yourself.

  • Page 6: Rma Procedure

    365 days beginning on the date of purchase or order. Sanzonate Global, Inc. in no event will be liable for injuries to persons or property, or for incidental and contingent, special or consequential damages arising from the use of our product.

  • Page 7: Product Overview

    PRODUCT OVERVIEW Take a moment to familiarize yourself with the unit. (Fig.1) Note the orientation of the inlet and outlet ports. (Fig.2) FAN EXHAUST HOUR METER POWER IN (12VDC ONLY) ON/OFF SWITCH (Fig.1) COLD FRESH WATER (IN) OZONE DESTRUCT (AIR, OUT) AIR DRIER (AIR, IN) O3 SOLUTION OUT   (AQUEOUS OZONE) (Fig.2) FAN  INLET/FILTER...

  • Page 8: Installation

    INSTALLATION Installations may not be identical to this manual. If you need help or have any questions contact your distributor. YOU WILL NEED: Included: Screws Plastic Anchors Mounting Template Not Included: Tape | Pencil/Pen | Scissors (For Drywall) (For Concrete) •...
  • Page 9 INSTALLATION (con't) Step 3: Drill the holes for the anchors. Drywall: - Use a 5/16" drill bit on the three (3) marks. - Remove the template from the wall. - Lightly tap the anchors into each hole until they are flush against the wall. - Start the screws [#10-32 x 1-1/4] by hand until you can switch to a screwdrive drill to finish tightening.
  • Page 10 INSTALLATION (con't) Step 5: Connect the filter (Fig. 5) to the INLET port located on the bottom-left of the unit. (Fig. 6) - Arrows are located on the side of the filter and should point toward the 1GPM. (Fig.5) (Fig.6) (Fig.7)
  • Page 11 INSTALLATION (con't) Step 6: Connect the black 3/8" tubing into the bottom of the filter. (Fig. 8) (Fig.8) Step 7: Connect the 360° swivel adapter to the cold water supply. (provided) (Fig.9) - A 3/4" garden faucet is a common connection point. (Fig.10) - The remaining end of black tubing connects to the swivel adapter.
  • Page 12 INSTALLATION (con't) Step 8: Connect the blue hose to the black hose barb 90° fitting on the bottom-right of the 1GPM. - Slide the hose through the U-bolt and onto the barb with a slight twisting motion. (Fig.11) There is very little pressure in the blue solution hose; a clamp is not needed (Fig12) (Fig.11) (Fig.12)

  • Page 13: Power

    POWER Step 9: Connect the 3-prong male end into a wall outlet, preferrably a GFCI. (Fig.13) The 1GPM uses a 12V DC power adapter and can be used with voltages between 100-240V~ 50/60Hz. (Fig.13) Step 10: Connect the IEC plug into the adapter (Fig.14z) Make certain the IEC plug is fully inserted before moving forward.
  • Page 14 POWER (con't) Step 11: Verify the blue LED on the 12V adapter is illuminated. (Fig.15) (Fig.15) NOTE:  If the blue LED does not illuminate, contact your sales representative for    assistance.  Step 12: Connect the barrel jack from the power adapter into the power port located on the lower-left side of the unit. (Fig.16) (Fig.16)

  • Page 15: Changing The Air Drier

    POWER (con't) Great job! You are finished with the installation and may begin using your NEW AQUAFLOW 1GPM Fill Station. To Use: Press-in the black ON/OFF switch located on the lower-left side of the unit. (Fig.16) BLUE light will illuminate at the switch and also inside the viewing window.
  • Page 16 CHANGING THE AIR DRIER (Fig.17) (Fig.18) (Fig.19) (Fig.20)

  • Page 17: Cleaning The Inlet Filter

    CLEANING THE INLET FILTER A 100 mesh (150 microns) inlet water filter is used to prevent foreign objects from obstructing the flow of solution inside your 1GPM. Keeping the filter screen clean will help prevent unecessary maintenance issues and prolong the life of your equipment. We recommend after the first week from installation the screen inside the inlet water filter should be inspected.
  • Page 18 CLEANING THE INLET FILTER (con't) (Fig.21) (Fig.22)

  • Page 19: Hour Meter

    HOUR METER A digital hourglass will flash on the screen while in operation. The hour meter is Non-Resettable. Display Resolution: Change Filter Notification: "CLEAN Until Total Running Hours (H) pass 10000 AIR FILTER", "NOW" display resolution is 0.1 ≈ 6 m The hour meter has been inutes programmed to display an alert...

  • Page 20: Operation Usage Tips

    OPERATION USAGE TIPS When using the 1GPM: - There is a direct link between the height of aqueous ozone in the degassing chamber and the height where the blue solution hose is held while filling. - The lower you hold the blue solution hose, the lower the column of aqueous ozone in the degassing chamber.

  • Page 21: Safety Data Sheet (Sds)

    Printed:03/01/2023 Version: 4.0 Date of issue: 06/01/2022 SECTION 1: Identification of the substance/mixture and of the company/undertaking 1.1. Product identifier : Sanzonate Global, Inc. Aqueous Ozone Solution Product name Product code : n/a 1.2. Relevant identified uses of the substance or mixture and uses advised against...
  • Page 22 Sanzonate Global, Inc. Aqueous Ozone Solution Safety Data Sheet according to the federal final rule of hazard communication revised on 2012 (HazCom 2012) SECTION 4: First aid measures 4.1. Description of first aid measures First-aid measures after inhalation : Inhalation of aqueous ozone may lead to irritation of the lungs. If breathing is difficult, remove victim to fresh air and keep at rest in a position comfortable for breathing.
  • Page 23 Sanzonate Global, Inc. Aqueous Ozone Solution Safety Data Sheet according to the federal final rule of hazard communication revised on 2012 (HazCom 2012) SECTION 7: Handling and storage Precautions for safe handling : Aqueous ozone solution should not be sprayed as an aerosol to avoid the release of ozone gas out of aqueous ozone solution.
  • Page 24 Sanzonate Global, Inc. Aqueous Ozone Solution Safety Data Sheet according to the federal final rule of hazard communication revised on 2012 (HazCom 2012) SECTION 9: Physical and chemical properties 9.1. Information on basic physical and chemical properties Physical state : Liquid...
  • Page 25 Sanzonate Global, Inc. Aqueous Ozone Solution Safety Data Sheet according to the federal final rule of hazard communication revised on 2012 (HazCom 2012) Skin corrosion/irritation : Not classified (Based on available data, the classification criteria are not met) Serious eye damage/irritation...
  • Page 26 Sanzonate Global, Inc. Aqueous Ozone Solution Safety Data Sheet according to the federal final rule of hazard communication revised on 2012 (HazCom 2012) SECTION 13: Disposal considerations 13.1. Waste treatment methods Waste disposal recommendations : May be disposed of in household waste landfill.
