Schreiber Windsor 615/0404 Assembly Lnstructions

Mirror

Download this manual

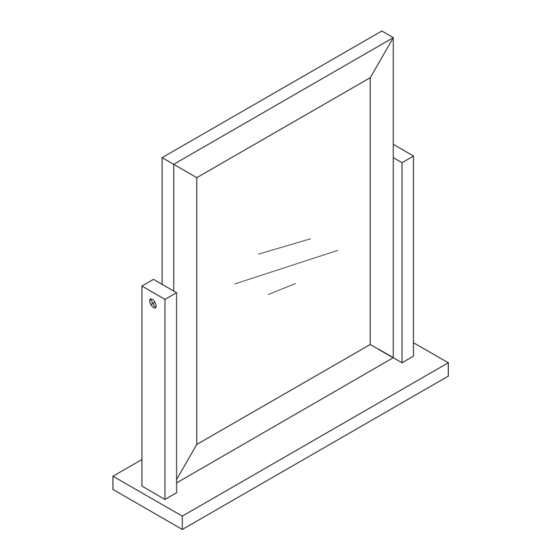

Windsor Mirror

Assembly Instructions -

Dimensions

Width - 46cm

Depth - 12cm

Height - 50.5cm

Important -

Please read these instructions fully before starting assembly

If you need help or have damaged or missing parts, call the Customer Helpline:01799 513466

Please keep for future reference

615/0404

Issue 1 - 06/04/10

Need help?

Do you have a question about the Windsor 615/0404 and is the answer not in the manual?

Page 1 Windsor Mirror Assembly Instructions - 615/0404 Please keep for future reference Dimensions Width - 46cm Depth - 12cm Height - 50.5cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline:01799 513466 Issue 1 - 06/04/10...
Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly Retain this instruction for Assembly to be carried out by We do not future reference. a competent adult only. recommend the use of power During assembly children Dispose of all packaging drill/drivers for should be kept away from the...
Page 3: Components - Parts
Components - Parts Please check you have all the panels listed below 1 Mirror frame 2 Post x 2 3 Base (48x38cm) (30x4cm) (46x12cm)
Page 4 Plastic washer x 2 Metal nut x 4 40mm Screw x 6 Allen key x 1 Tools required Phillips screwdriver (medium & large)
Page 5 Assembly Instructions Step 1 Assembling posts Assemble posts mirror frame using fixings Note: Plastic washers are located in between the posts and the frame. Step 2 Attaching base Align base with posts and secure using fixings shown.
