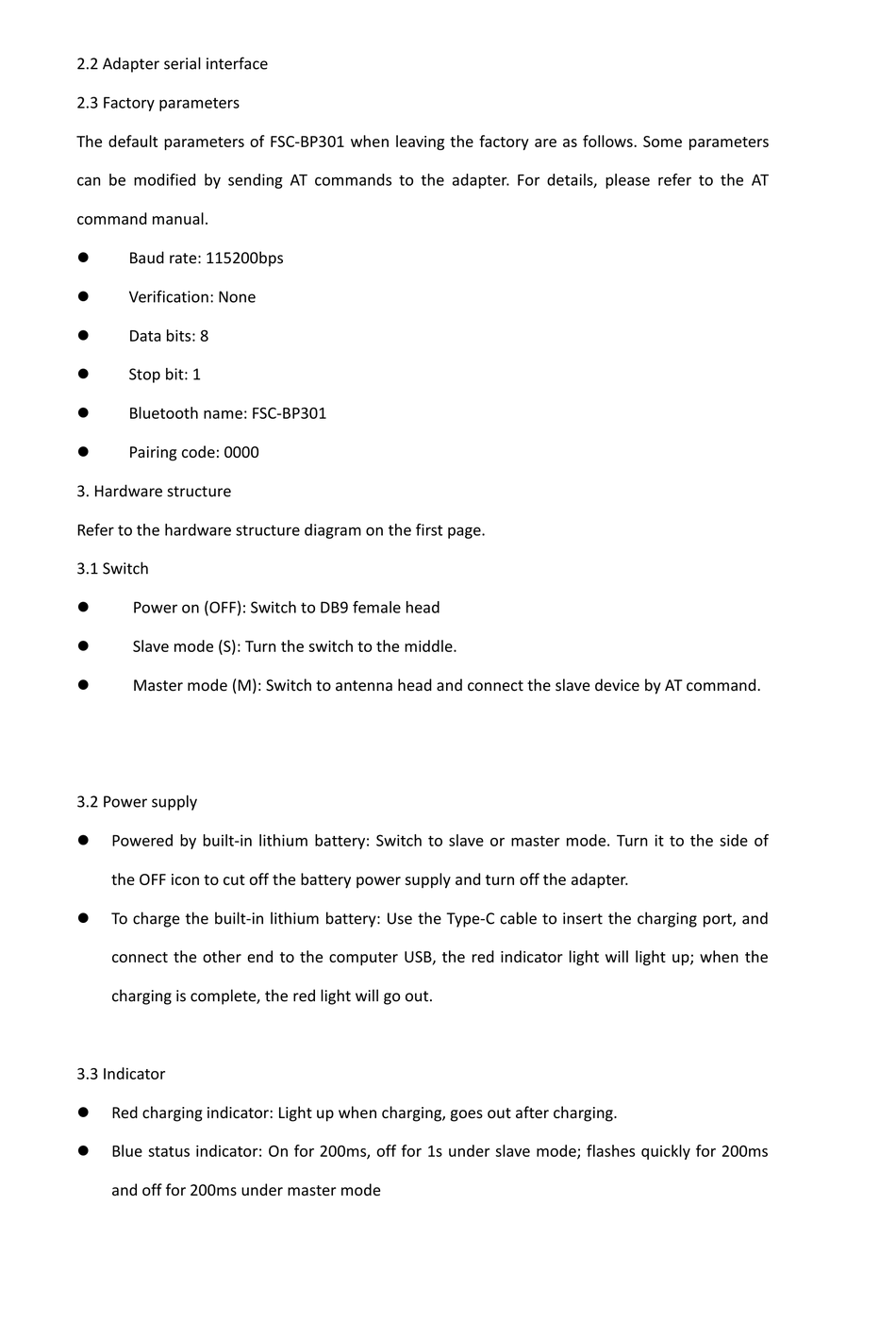

2.2 Adapter serial interface

2.3 Factory parameters

The default parameters of FSC-BP301 when leaving the factory are as follows. Some parameters
can be modified by sending AT commands to the adapter. For details, please refer to the AT
command manual.
Baud rate: 115200bps

Verification: None

Data bits: 8

Stop bit: 1

Bluetooth name: FSC-BP301

Pairing code: 0000


3. Hardware structure

Refer to the hardware structure diagram on the first page.

3.1 Switch

Power on (OFF): Switch to DB9 female head

Slave mode (S): Turn the switch to the middle.

Master mode (M): Switch to antenna head and connect the slave device by AT command.


3.2 Power supply

Powered by built-in lithium battery: Switch to slave or master mode. Turn it to the side of

the OFF icon to cut off the battery power supply and turn off the adapter.
To charge the built-in lithium battery: Use the Type-C cable to insert the charging port, and

connect the other end to the computer USB, the red indicator light will light up; when the
charging is complete, the red light will go out.

3.3 Indicator

Red charging indicator: Light up when charging, goes out after charging.

Blue status indicator: On for 200ms, off for 1s under slave mode; flashes quickly for 200ms

and off for 200ms under master mode
