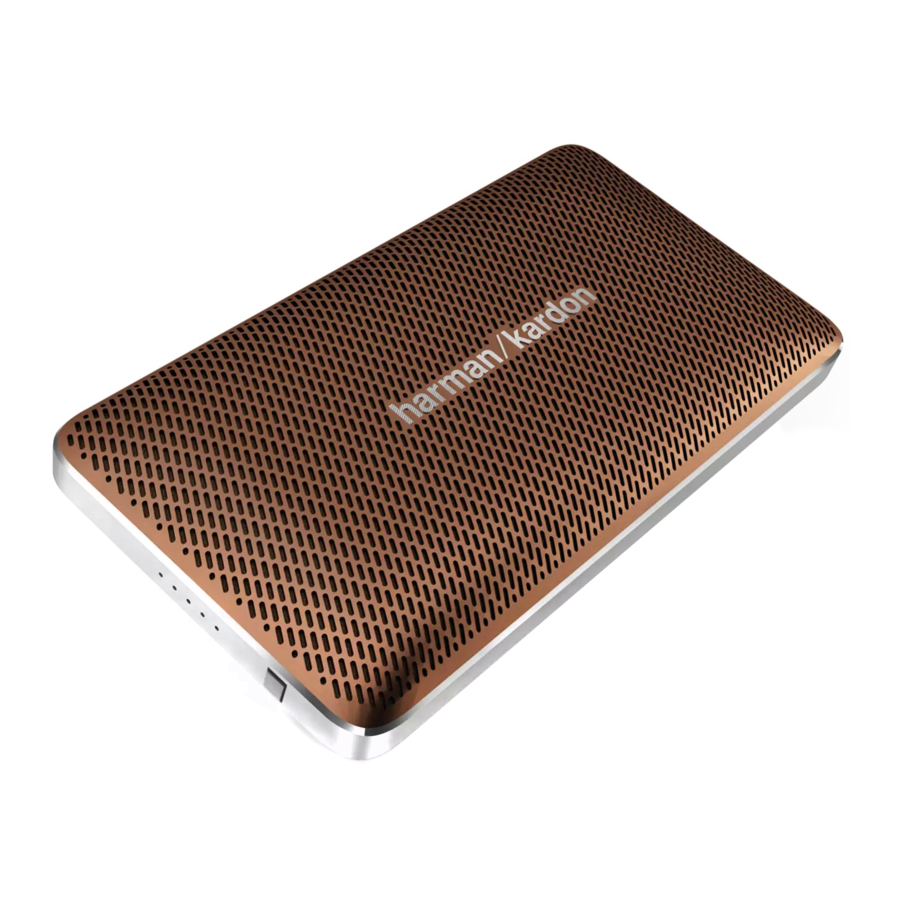

Harman Kardon ESQUIRE MINI - Speaker Quick Start Guide

What's in the box

Buttons

Connections

Bluetooth Operation

Stand

Hands-free

Mute

Charging

Battery charging indication

Specifications

• Transducers: 2 × 27mm
• Rated power: 2 × 4W
• Frequency response: 180~20kHz
• Signal-to-noise ratio: 80dB
• Battery type: Lithium polymer (3.7V, 2000mAh)
• Micro USB rating: 5V, 1.0A
• USB Rating: 5V, 1.0A
• Input connections: Bluetooth®, Aux-in
• Music play time: Up to 8 hours (varies by volume level and audio content)
• Battery charge time: 3 to 5 hours (varies by charging current)
• Dimensions (W × D × H): 140mm × 24mm × 75.4mm
• Weight: 238g
• Bluetooth transmitter frequency range: 2.402GHz~2.480GHz
• Bluetooth transmitter power: 0~4dBm
• Bluetooth transmitter modulation: GFSK, 8DPSK, π/4DQPSK
