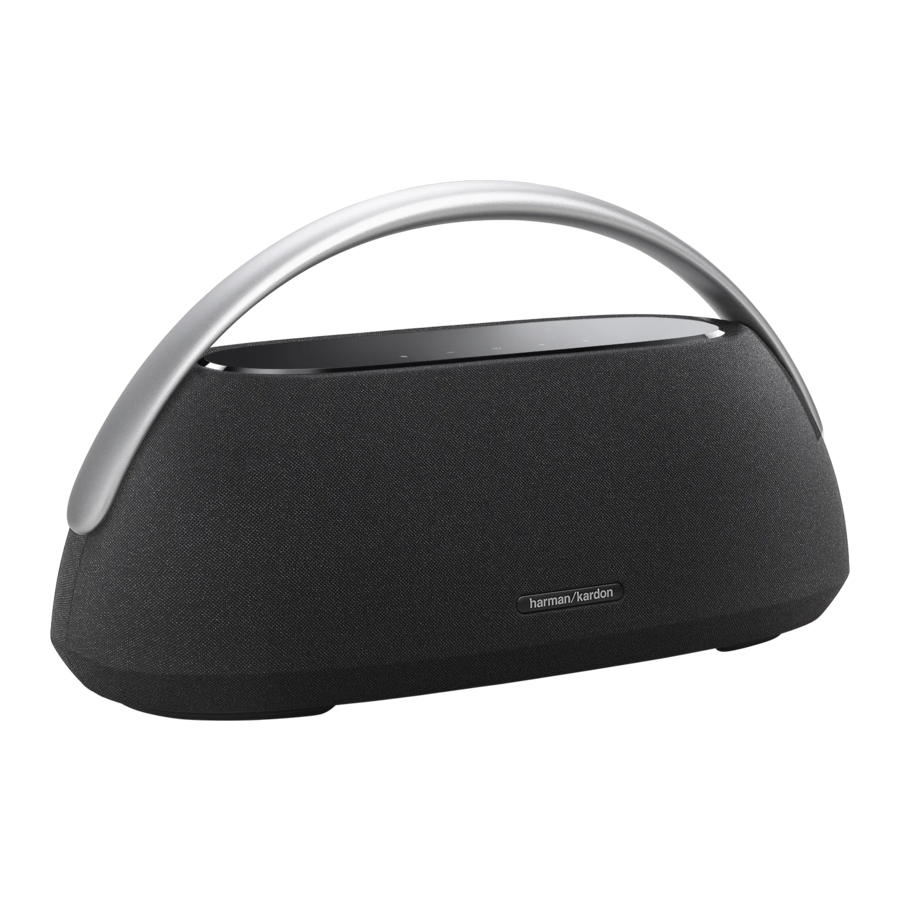

Harman Kardon GO + PLAY 3 Manual
WHAT'S IN THE BOX
* Power cord quantity and plug type vary by regions.
BLUETOOTH PAIRING
MUSIC STREAMING
To reboot, hold
for more than 10 seconds.
MULTI-POINT CONNECTION
* Maximum 2 devices.
STEREO BOOST PAIRING
STEREO BOOST CONTROL
CONFERENCING
When there is an incoming call, music playback pauses. Pick up the phone call and talk through microphone.
MUSIC PLAYBACK THROUGH AN AUDIO CABLE
To play music through the audio cable, disconnect Bluetooth.
CHARGING
If the speaker will not be used for a long period of time, please recharge the battery at least once every 3 months. Battery life will vary due to usage patterns and environmental conditions.
TECH SPEC
| 5.2 | |
| A2DP V1.3, AVRCP V1.6 | |
| 70 mm x 2 pcs (Mid range), 20 mm x 2 pcs (Tweeter), 130 mm x 1 pc (Subwoofer) | |
| 160 W RMS | |
| 43 Hz – 20 kHz (-6 dB) | |
| 80 dB A-weighted | |
| 25.92Wh rechargeable battery | |
| 3 hours | |
| up to 8 hours (dependent on volume level and audio content) | |
| 100 – 240 V ~ 50/60 Hz | |
| ≤ 10 dBm | |
| 2.400 – 2.4835 GHz | |
| GFSK, π/4 DQPSK, 8DPSK | |
| Audio playback is for US version only. For other versions, USB is for Service only. | |
| USB port: | Type C | |
| USB rating: | 5V/2A (maximum) | |
| mp3 | |
| 439 x 240 x 192 mm / 17.3" x 9.5" x 7.6" | |
| 4.7 kg (10.4 lbs) | |
Documents / ResourcesDownload manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
