Summary of Contents for Cosmopolitan Phoenix Omnivue Series

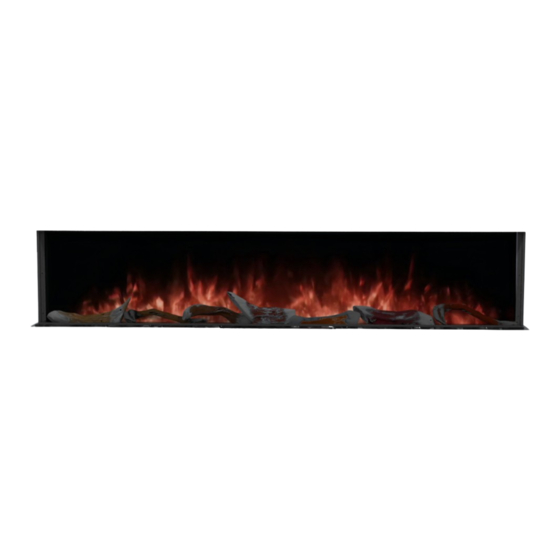

- Page 1 Phoenix Omnivue Series POV-44 • POV-56 • POV-68 • POV-80 • POV-96 Installation, Operation and Maintenance Manual...
-
Page 2: Table Of Contents
User Instructions Important Instructions Appliance Data Box Contents Pre-Installation Installation Operation Service Parts Troubleshooting Frequently Asked Questions Cleaning and Maintenance Wiring Diagram... -
Page 3: Important Instructions
Important Instructions shutdown. Allow surfaces to cool before touching. When using electrical heaters, basic precautions should always be followed to reduce CAUTION: In order to avoid overheating, do not cover the heater. the risk of fire, electric shock and injury to persons, including the following: Read all instructions before installing or using this heater. -
Page 4: Appliance Data
Appliance Data POV-44 POV-56 POV-68 POV-80 POV-96 AC 120V 60Hz 14 Amps AC 120V 60Hz 14 Amps AC 120V 60Hz 14 Amps AC 120V 60Hz 14 Amps AC 120V 60Hz 14 Amps Volts/HZ Optional AC 240V 60Hz 14 Optional AC 240V 60Hz 14 Optional AC 240V 60Hz 14 Optional AC 240V 60Hz 14 Optional AC 240V 60Hz 14... -
Page 5: Box Contents
Box Contents Pre-Installation Installing fireplace Select a suitable location that is not susceptible to moisture and is a safe distance from drapes, furniture and high traffic areas. A qualified electrician should add a dedicated flexible 20 amp 120V circuit per local building codes. Run a second line for optional Quantity Item 10,000 BTU operation. -
Page 6: Installation
Installation 3-Sided Installation 4. Mask the exposed fire unit during the drywall 2. Install L Metal Nailing Flanges. Model process. Install drywall to the drywall stops on the 3. Install the fire unit in the framed opening with a perimeter of the fire box. For more information on minimum 1 ¼... - Page 7 Fully Recessed Installation - 1 Side 1. Follow steps 1 & 2 from the 3 sided 5. Mask the exposed fire unit during the installation instructions. drywall process. Install drywall to the drywall stops on the perimeter of the 2. Remove the corresponding drywall fire box.
- Page 8 Half Recessed Installation 1. This installation is optimized for a 2x4 framed 2. Install L Metal Nailing Flanges. 4. Firebox must be covered with material of choice. wall. Prepare the framed opening according to the Mask the exposed fire unit during this process. 3.
- Page 9 Installing Side Glass Installing Optional Wall Mounted Touch Control 1. The unit has 2 channels on the top and bottom to hold the side glass. 1. Locate 2-gang low voltage bracket 2. Insert the glass at an angle in to the top channel. within 20 feet (6m) of fireplace.
-
Page 10: Operation
Operation The unit has a main power switch just in front of the glass on the right hand side. A Power indicator lights for wall switch as well as upper right hand-held remote is included. corner of the main unit This will cycle the machine on and off. -
Page 11: Service Parts
Service Parts ITEM PHOTO DESCRIPTION ITEM PHOTO DESCRIPTION PRINTED CIRCUIT BOARD CONTROLS LOW VOLTAGE AND TB-3 3 POLE TERMINAL BLOCK 120 V HIGH VOLTAGE FUNCTIONS AND TRANSFORMER 4 POLE TERMINAL BLOCK HF-230 HEATER FAN 120 V TB-4 120/240 V PTC HEATER 120/240 V 1500/3000 MANUAL TOUCH CONTROL WATTS BOARD... - Page 12 ITEM PHOTO DESCRIPTION ITEM PHOTO DESCRIPTION PS/E-44 PS/E-56 SG-C SIDE GLASS CLEAR PS/E-68 EMBER BED SCREEN PS/E-80 PS/E-96 FLED-44 FLED-56 FLED-68 RGB FLAME LED BAR SET FLED-80 FLED-96 EB/DL-44 EB/DL-56 RGB EMBER BED/DOWNLIGHT EB/DL-68 LED STRIP EB/DL-80 EB/DL-96 SR-44 SR-56 SPINDLE ROD FOR FLAME AND SR-68 EMBER BED...
-
Page 13: Troubleshooting
Troubleshooting Problem Possible Cause Corrective Action A. Breaker tripped or circuit has no power A. Reset breaker, test circuit for power B. Internal component is frozen and needs to be reset B. Turn power off at the main breaker for 20 seconds. Turn power back on. Nothing comes on (touch screen, etc.) C. -
Page 14: Frequently Asked Questions
Frequently Asked Questions Cleaning and Maintenance Q. How do you change the optional Wall Touch Control to Fahrenheit/Celsius? There is very little maintenance involved with your electric fireplace. Please follow the few points below: A. Long press on the up and down arrows on the fire unit to toggle between Fahrenheit and Celsius. -
Page 15: Wiring Diagram
Wiring Diagram WIFI Flame light Ember Bed light Downlight Ember Flame Motor Motor...
